Clearing the Routers List
To clear the group membership on the IGMP Routers List, do the
following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 20 on page 59.
2. From the Switching tab drop-down menu, select IGMP.
The IGMP Snooping page is displayed with the Configuration tab
selected by default. See Figure 51 on page 139.
3. Click the Routers List tab.
The IGMP Snooping page with the Routers tab selected is displayed.
See Figure 52.

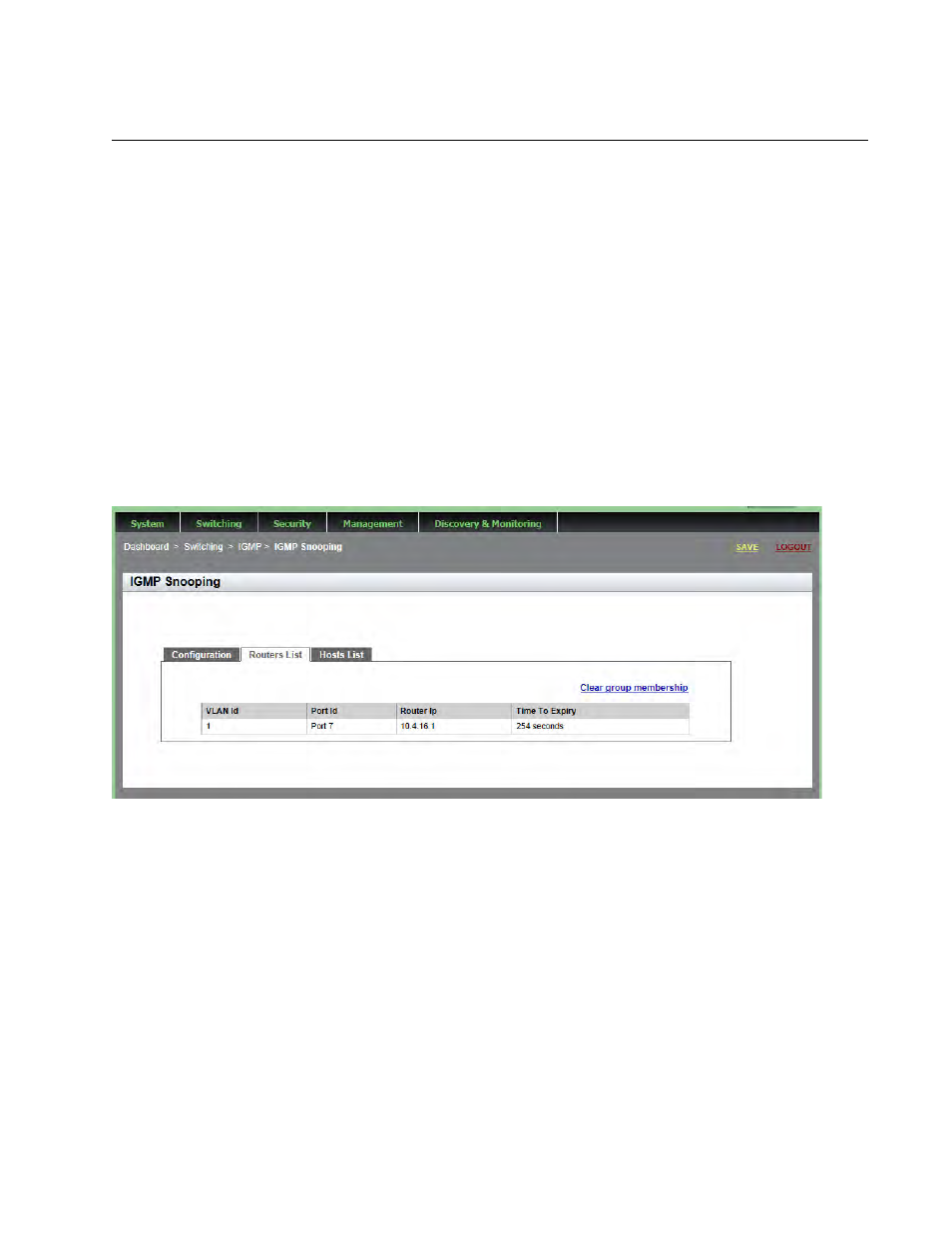

Figure 52. IGMP Snooping Page with Routers List Tab
The following settings are displayed:
 VLAN ID— ID numbers of the VLANs of the router ports.
 Port ID— The port of a multicast router. If the switch learned a
router on a port trunk, a trunk ID number is displayed, instead of a
port number.
 Router IP— IP addresses of the multicast routers.
 Time to Expiry— Number of seconds remaining before the switch
times out a multicast router if there are no further IGMP queries
from it.
