Chapter 19: Setting LLDP and LLDP-MED
226

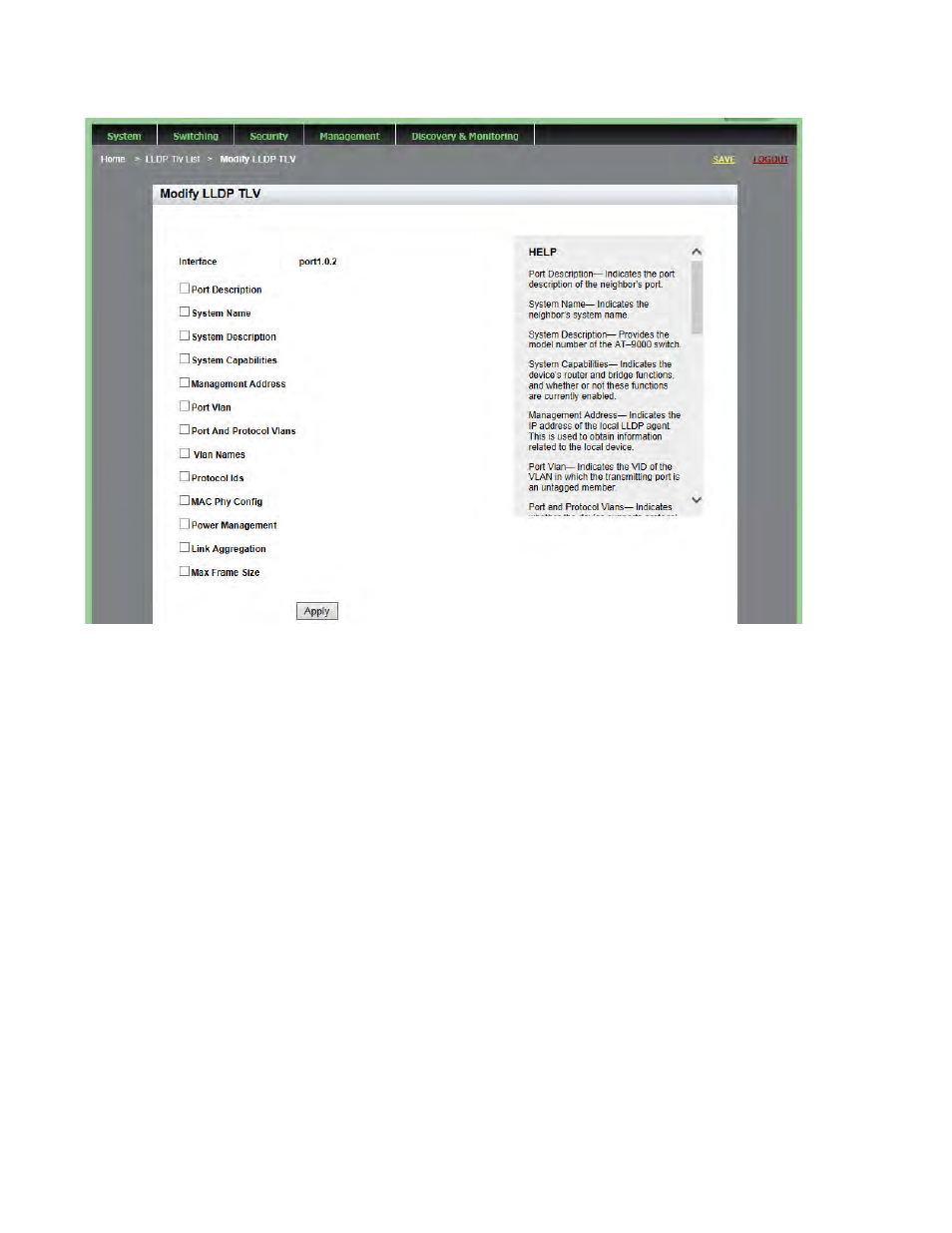

Figure 88. Modify LLDP TLV Page
6. Change the following fields as needed by clicking the box next to the
field:
 Port Description— Port description of the neighbor’s port.
 System Name— Neighbor’s system name.
 System Description— Model number of the AT-9000 switch.
 System Capabilities— Device’s router and bridge functions, and
whether or not these functions are currently enabled.
 Management Address— IP address of the local LLDP agent. This
is used to obtain information related to the local device.
 Port Vlan— VID of the VLAN in which the transmitting port is an
untagged member.
 Port and Protocol Vlans— Whether the device supports protocol
VLANs, and if it does, the protocol VLAN identifiers. This field is
not supported on the AT-9000 switches.
 Vlan Names— Lists the names of the VLANs in which the
transmitting port is either an untagged or tagged member.
