Chapter 19: Setting LLDP and LLDP-MED
236
Displaying LLDP Statistics
To display LLDP Statistical information, do the following:
1. Hover the cursor over the Discovery & Monitoring tab.
The Discovery & Monitoring tab is displayed. See Figure 73 on page
211.
2. From the Discovery & Monitoring tab, hover over LLDP.
3. From the LLDP tab, move the cursor to the right and select Statistics.
The LLDP Statistics page is displayed with the Port Statistics tab
selected automatically. See Figure 93.

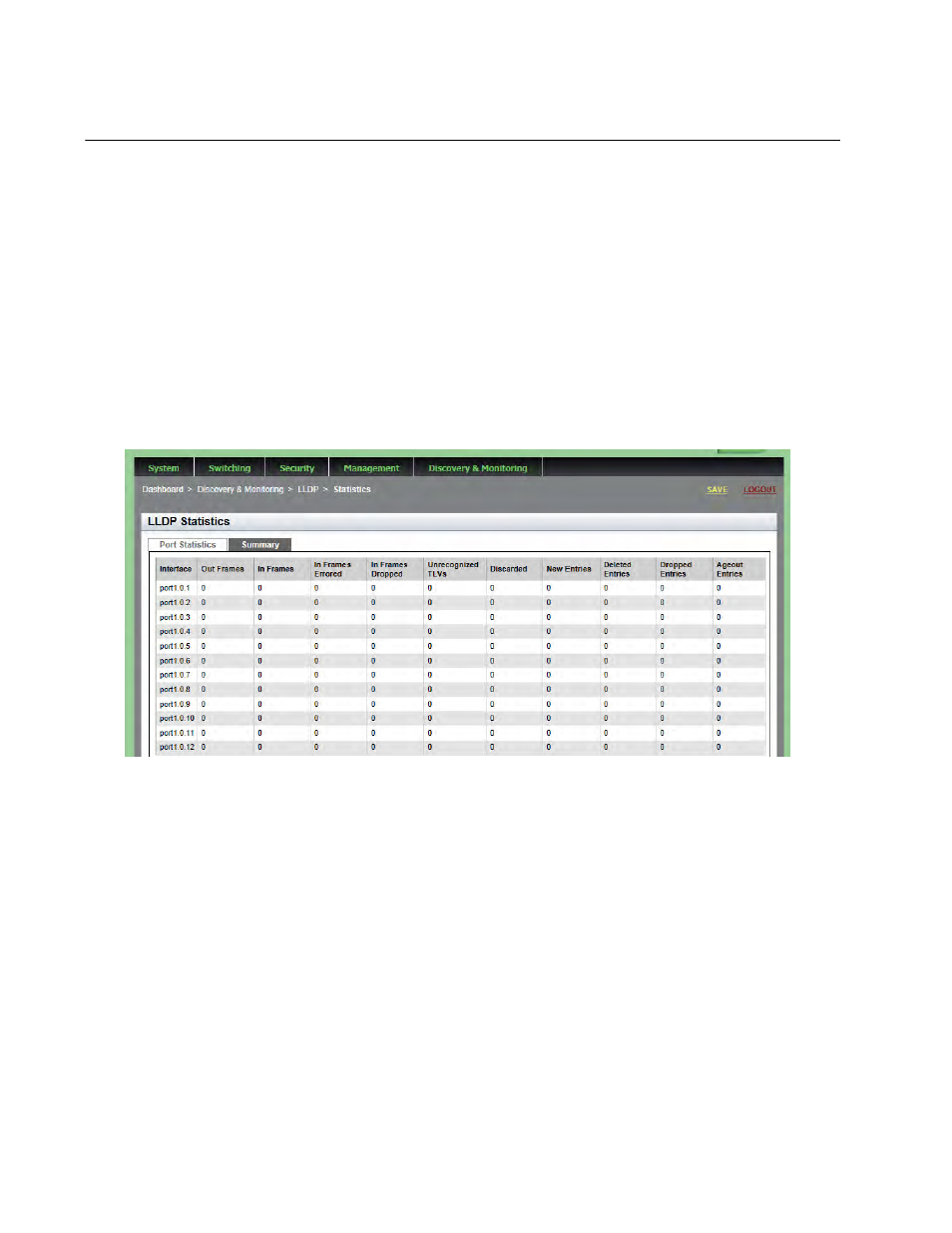

Figure 93. LLDP Statistics Page with Port Statistics Tab
The following fields are displayed:
Interface— Port number.
Out Frames— Number of LLDPDU frames transmitted.
In Frames— Number of LLDPDU frames received.
In Frames Errored— Number of invalid LLDPDU frames received.
In Frames Dropped— Number of LLDPDU frames received and
discarded.
Unrecognized TLVs— Number of LLDP TLVs received that were
unrecognized, but the TLV types were in the range of reserved TLV
types.
Discarded— Number of discarded TLVs.
