Chapter 4: Setting Port Parameters
58
Displaying the Port Parameters
The port numbering system in the AlliedWare Plus web browser interface
has the format shown in Figure 19.

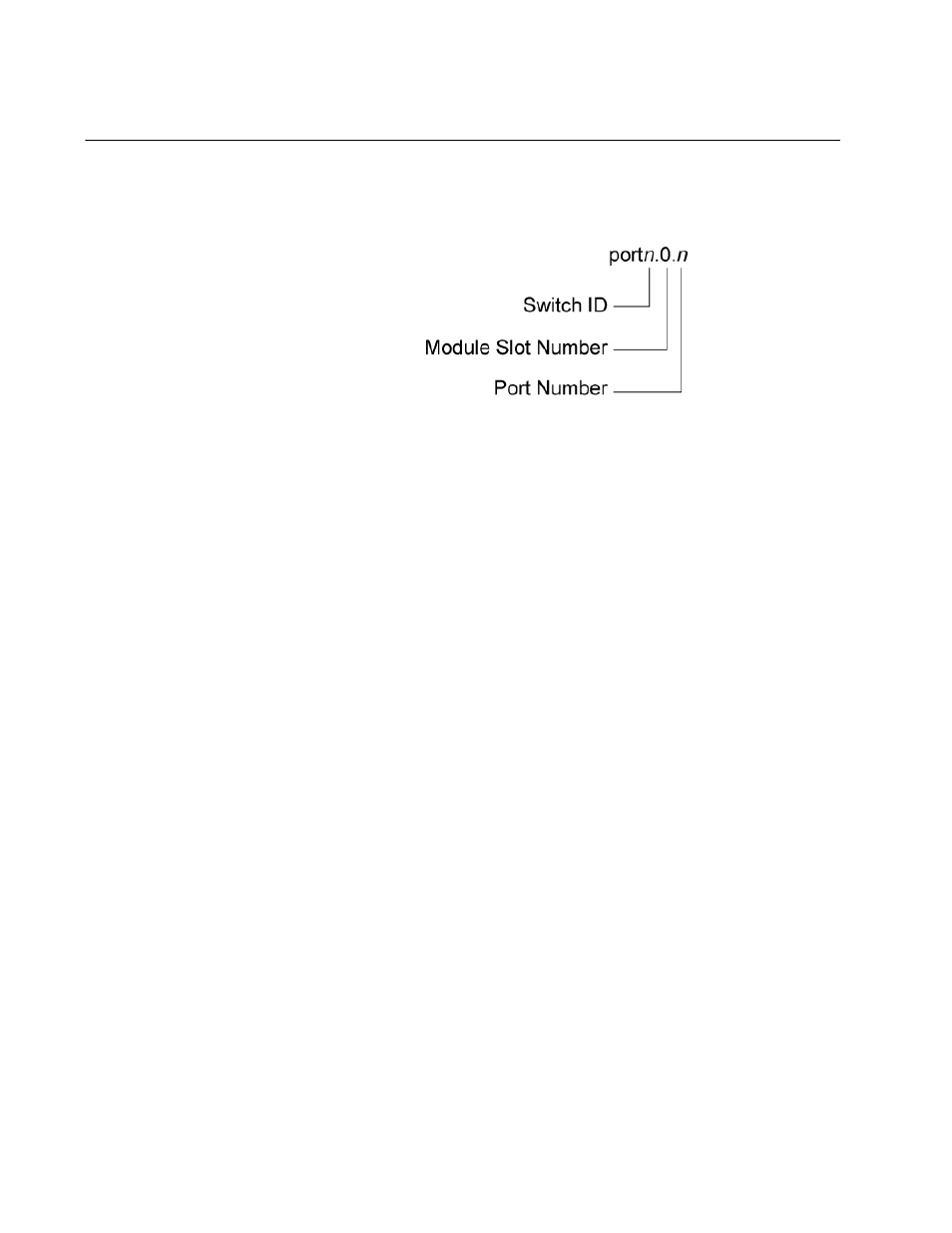

Figure 19. Port Numbering System
The port numbering system is defined as follows:
 Switch ID: This number is used if the switch supports stacking. It is
the switch’s ID number in a stack. This number is always 1 for
AT-9000 Series switches because they do not support stacking.
 Module Slot ID: This number is used for modular switches that
have slots for networking modules. It is used to identify the
networking modules by their slot numbers. This number is always
0 for AT-9000 Series switches because they are not modular
switches.
 Port number: This is a port number.
For example, port 1 would be displayed as port1.0.1.
Within the display, there is no differentiation between ports 25 through 28
and ports 25R through 28R. In the web interface, if you want to see if port
25 is connected versus port 25R, go to the home page and look at the
illustration of the switch. For an example of the home page, see Figure 4
on page 23.
To display the settings for all of the switch ports, do the following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 20 on page 59.
