Displaying Port Mirroring Settings
To display the port mirroring assignments for all of the switch ports, do the
following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 20 on page 59.
2. From the Switching tab, hover over Port.
The Port tab is displayed.
3. From the Port tab, move the cursor to the right and select Mirroring.
The Port Mirroring List page is displayed. See Figure 29.

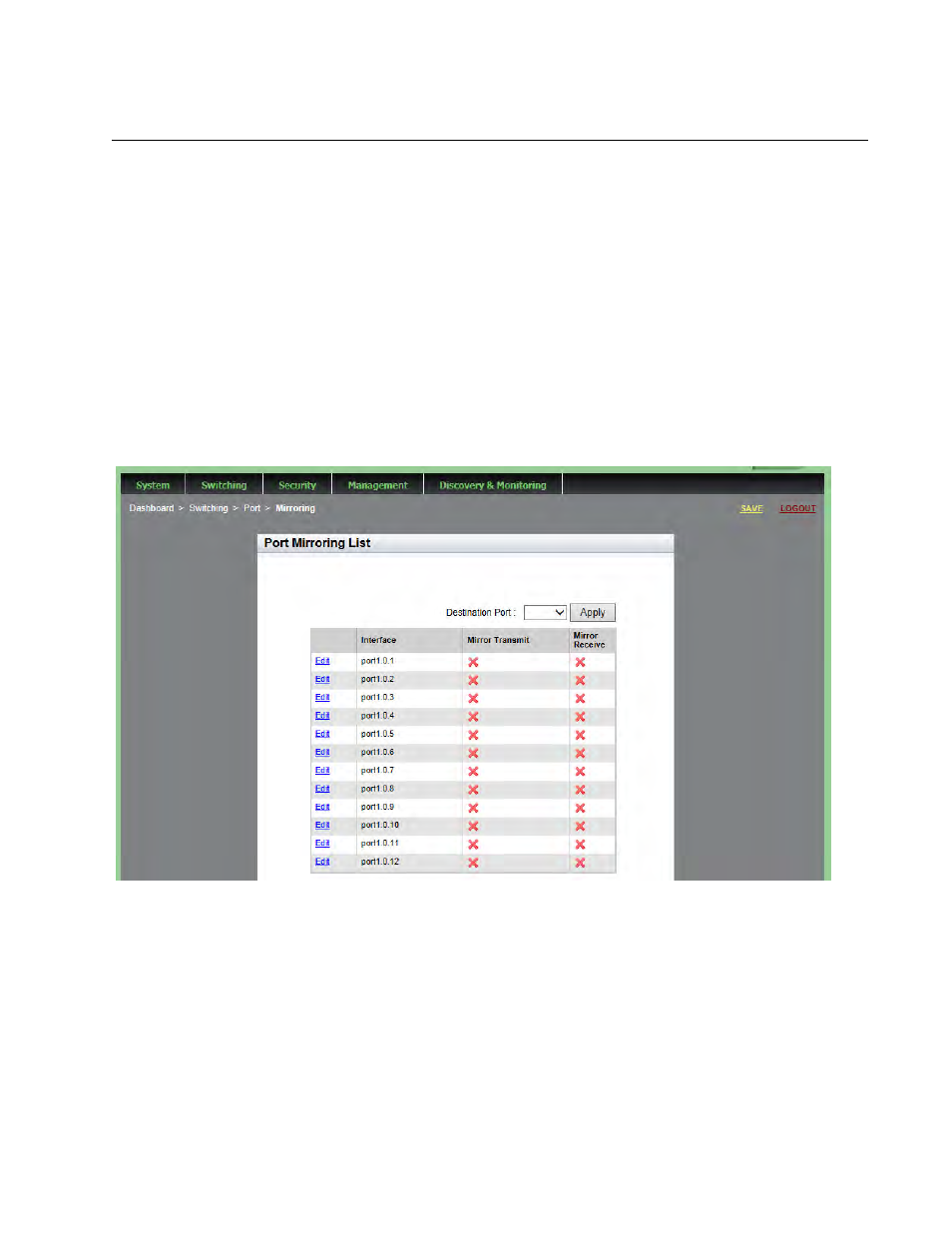

Figure 29. Port Mirroring List Page
The following fields are displayed:
 Destination Port— Port where the packets from the source ports
are copied and where the network analyzer is connected. There
can be only one destination port assigned to the switch. In
Figure 29, the Destination Port has not yet been assigned.
 Interface— Port number.
 Mirror Transmit— Source port whose transmitted (egress)
