Chapter 5: Setting Port Statistics
76
The Port Statistics with the Transmit tab selected is displayed. See
Figure 27.

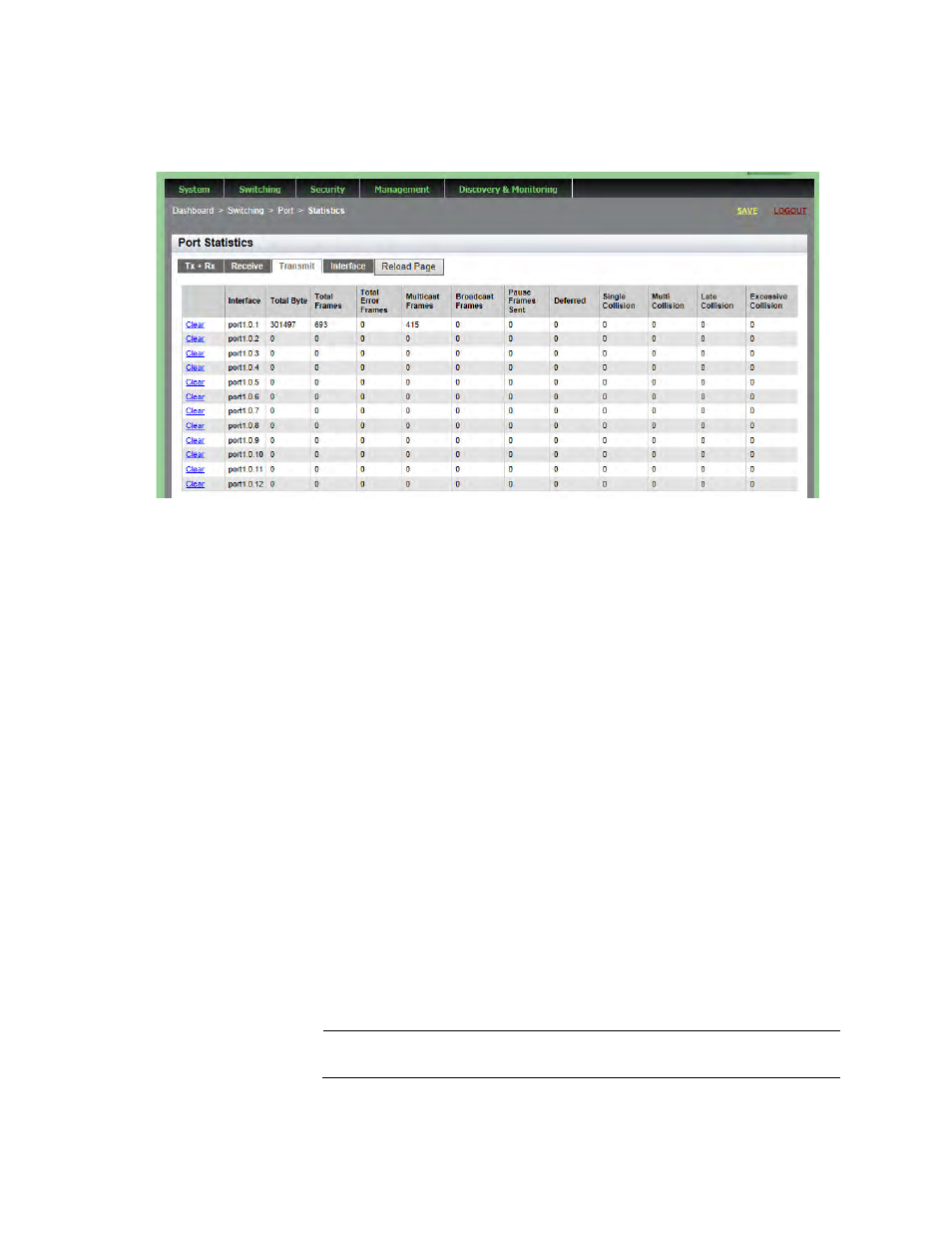

Figure 27. Port Statistics with Transmit Tab
The following fields are displayed:
 Interface— Port number.
 Total Bytes— Number of transmitted bytes.
 Total Frames— Number of transmitted frames.
 Total Error Frames— Number of transmitted frames with errors.
 Multicast Frames— Number of transmitted multicast frames.
 Broadcast Frames— Number of transmitted broadcast frames.
 Pause Frames Sent— Number of transmitted flow control pause
frames.
 Deferred— Number of egress frames that the port could not
immediately transmit.
 Single Collision— Number of frames that were transmitted after
at least one collision.
 Multi Collision— Number of frames that were transmitted after
more than one collision.
 Late Collision— Number of late collisions.
 Excessive Collision— Number of excessive collisions.
Note
The following fields are not displayed in Figure 27 on page 76.
