Chapter 5: Setting Port Statistics
72
Displaying Port Statistics
You can display several types of port statistics. See the following sections:
 “Displaying Transmit and Receive Port Statistics”
 “Displaying Receive Statistics” on page 73
 “Displaying Transmit Statistics” on page 75
 “Displaying Interface Statistics” on page 77
Displaying
Transmit and
Receive Port
Statistics
To display the transmit and receive statistics for all of the switch ports, do
the following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 20 on page 59.
2. From the Switching tab, hover over Port.
3. Move the cursor to the right and select Statistics.
The Port Statistics page is displayed with the Tx + Rx tab automatically
selected. See Figure 25.

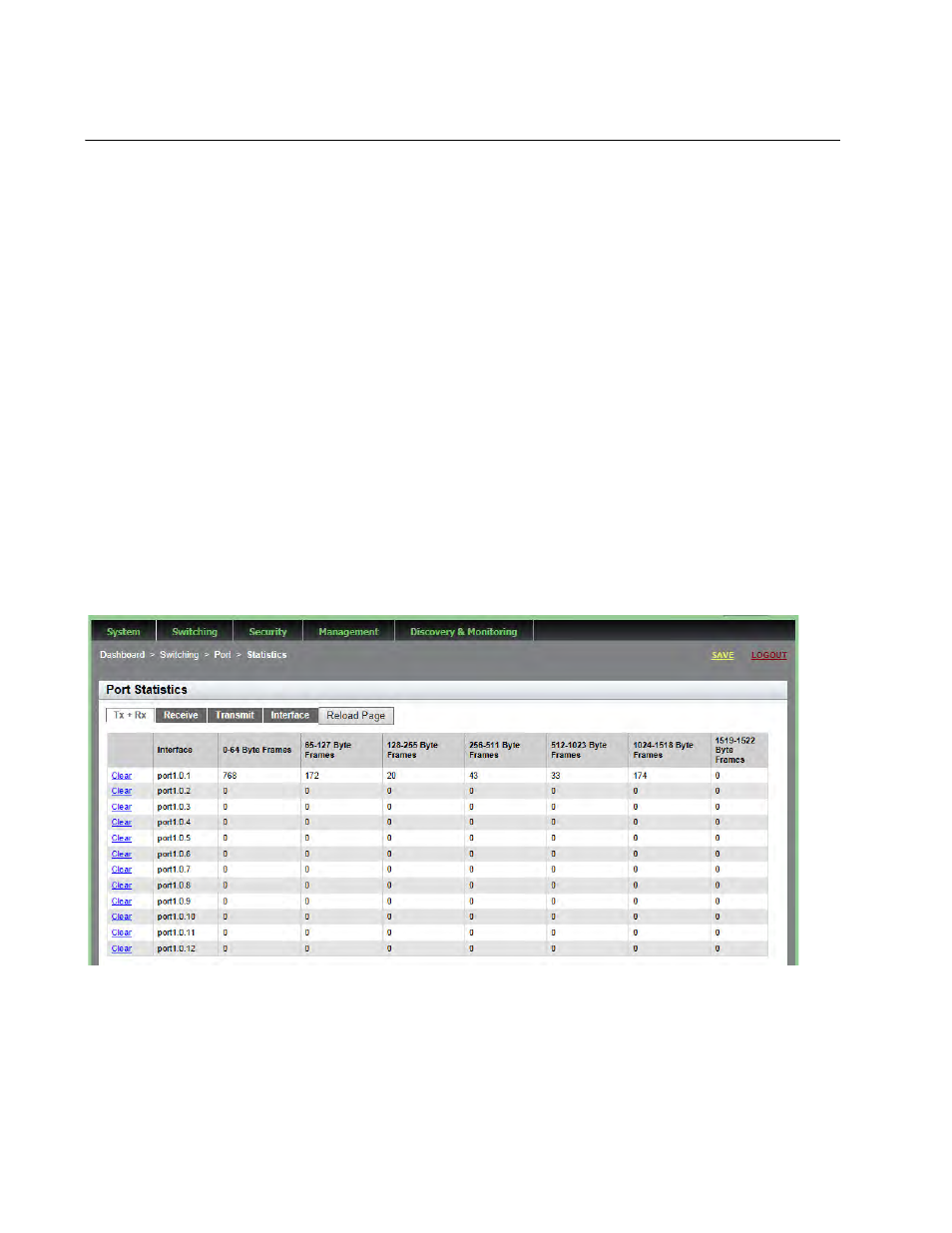

Figure 25. Port Statistics Page with Tx + Rx Tab
