Chapter 15: Setting MAC Address-based Port Security
166
Displaying MAC Address-based Port Security Settings
To display the MAC address-based port security settings, do the following:
1. Hover the cursor over the Security tab.
The Security tab is displayed. See Figure 57.

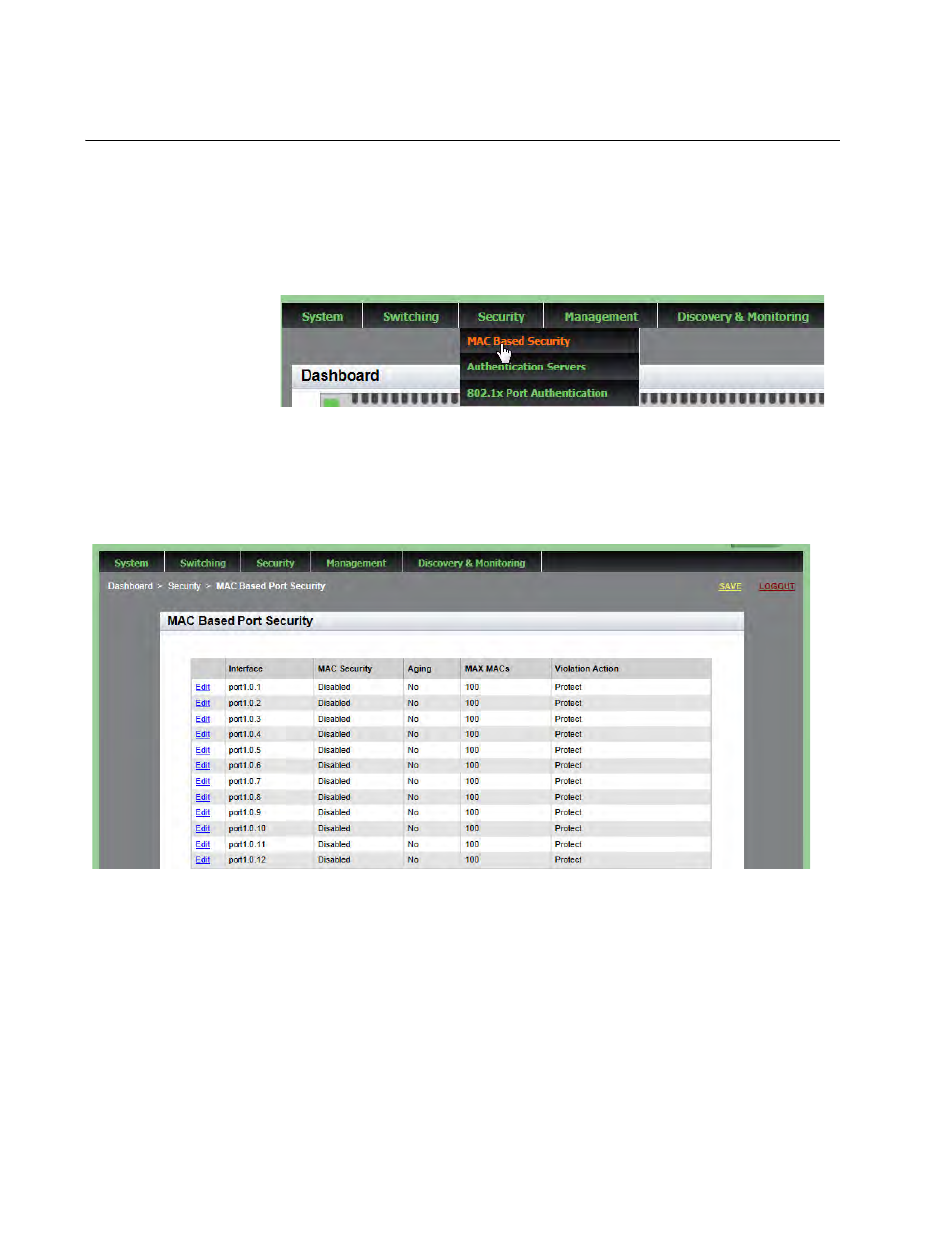

Figure 57. Security Tab
2. From the Security tab drop-down menu, select MAC Based Security.
The MAC Based Port Security page is displayed. See Figure 58.
Figure 58. MAC Based Port Security Page
The following fields are displayed:
 Interface— Port number.
 MAC Security— Whether MAC address-based security is either
“Enabled” or “Disabled” on a port. By default, this setting is
disabled.
 Aging— Indicates the ports that can or cannot add the source
MAC addresses as dynamic MAC address in the MAC address
