AlliedWare Plus Version 2.1.8 Management Software Web Interface User’s Guide

107

Adding an LACP Trunk

To create an LACP trunk, do the following:

1. Hover the cursor over the Switching tab.

The Switching tab is displayed. See Figure 20 on page 59.

2. From the Switching tab, hover over Link Aggregation.

For an example of the Link Aggregation selection, see Figure 38 on
page 105.

3. Move the cursor to the right and select LACP.

The LACP Trunks page is displayed. See Figure 39 on page 105.

4. From the LACP Trunks page, click Add.

The Add LACP Trunk page is displayed. See Figure 40.

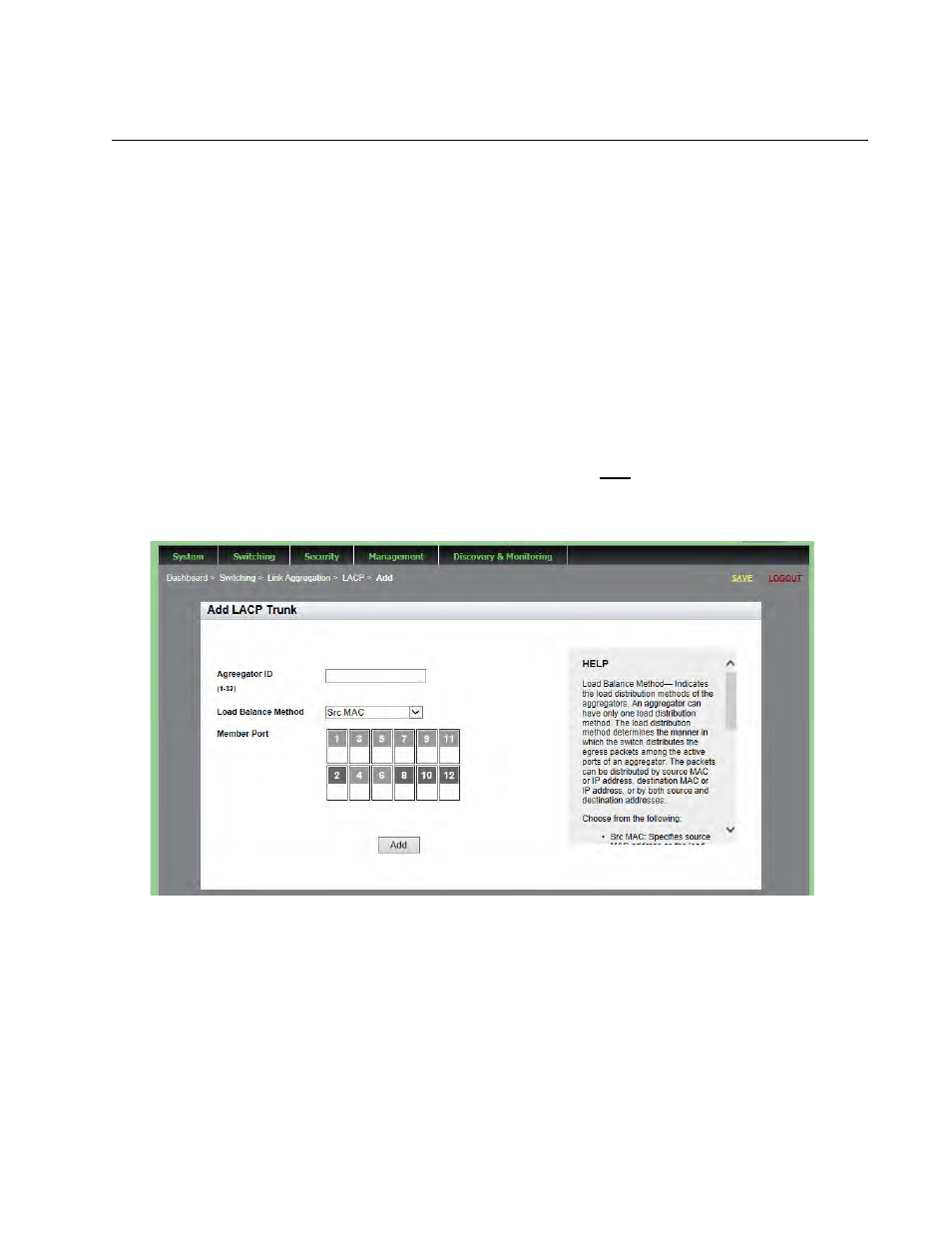

Figure 40. Add LACP Trunk Page

5. Specify the Aggregator ID. The range is 1 to 32.

6. Select the Load Balance Method. Choose from the following:

Src MAC— Specifies source MAC address as the load distribution
method.

Dst MAC— Specifies destination MAC address.
