AlliedWare Plus Version 2.1.8 Management Software Web Interface User’s Guide
77
 Total Collision Frames— Total number of collisions on the port.
 MAC Error Frames— Number of frames not transmitted correctly
or dropped due to an internal MAC transmit error.
Displaying
Interface
Statistics
To display the interface statistics, do the following:
1. Hover the cursor over the Switching tab.
The Switching tab is displayed. See Figure 20 on page 59.
2. From the Switching tab, hover over Port.
3. Move the cursor to the right and select Statistics.
The Port Statistics page with the Tx + Rx tab selected is displayed.
See Figure 25 on page 72.
4. Click the Interface tab.
The Port Statistics Page with the Interface tab selected is displayed.
See Figure 28.

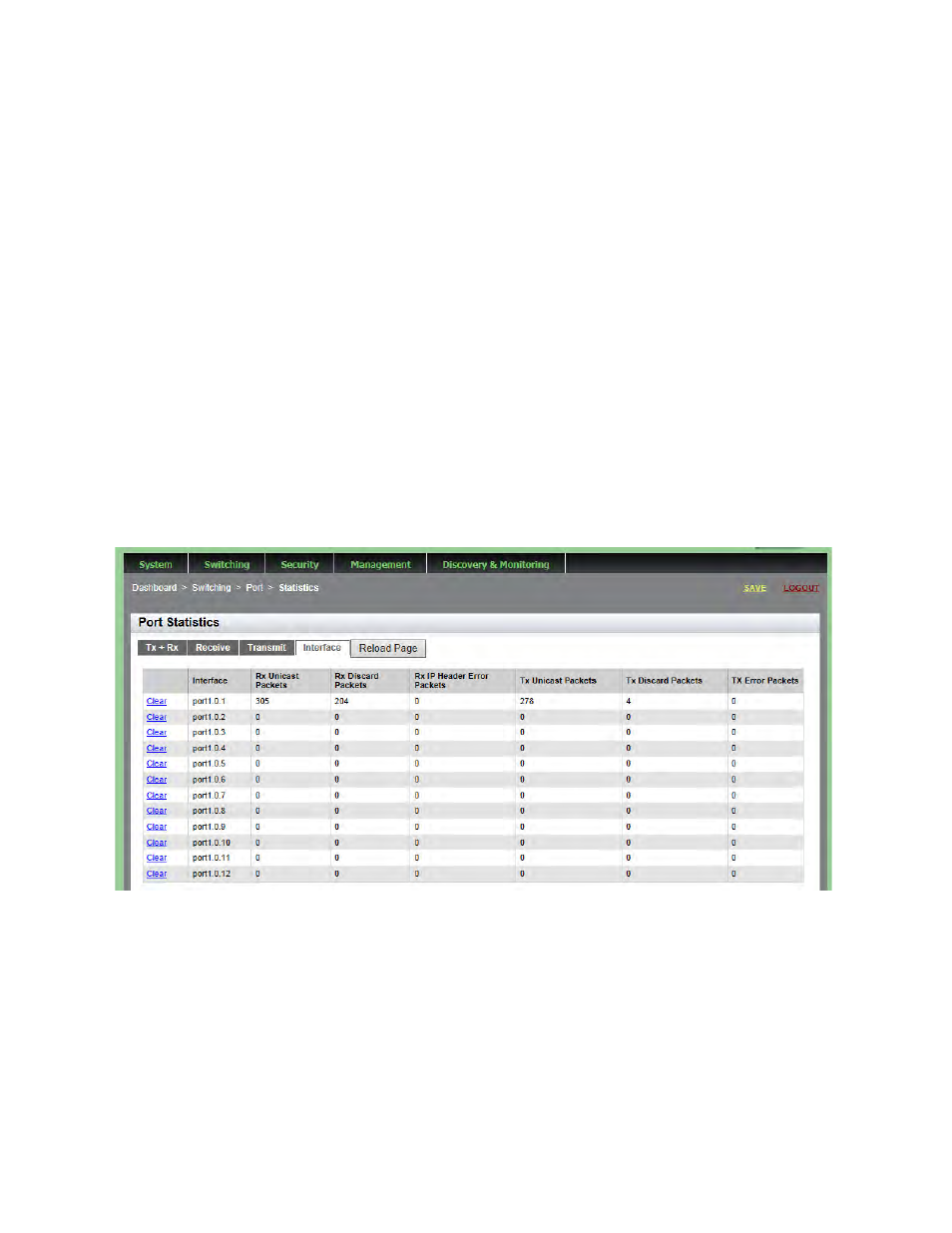

Figure 28. Port Statistics Page with Interface Tab
