AlliedWare Plus Version 2.1.8 Management Software Web Interface User’s Guide

105

Displaying LACP Trunks

To display the LACP trunk assignments for all of the switch ports, do the
following:

1. Hover the cursor over the Switching tab.

The Switching tab is displayed. See Figure 20 on page 59.

2. From the Switching tab, hover over Link Aggregation.

For an example of the Link Aggregation menu, see Figure 38.

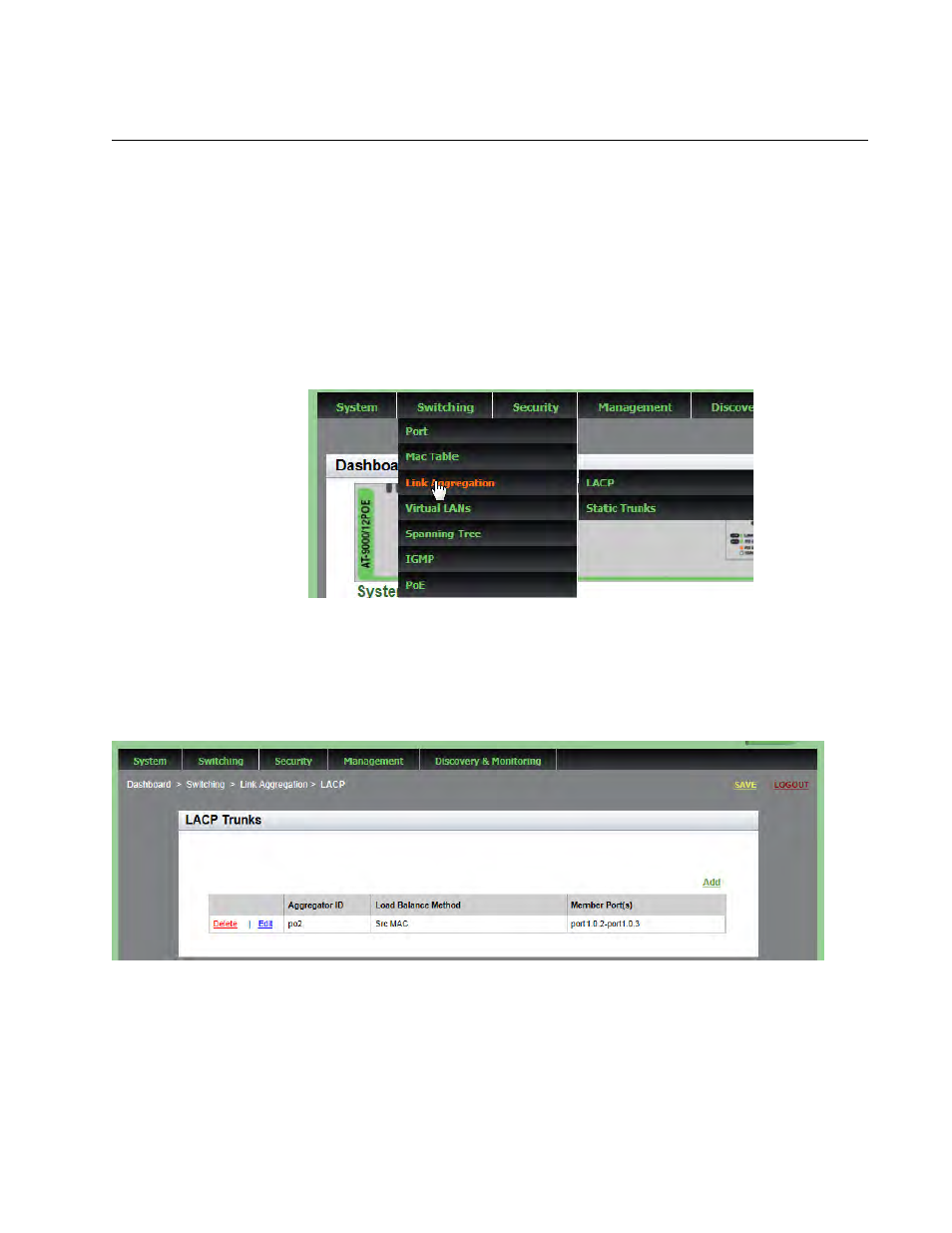

Figure 38. Switching Tab with Link Aggregation Selected

3. Move the cursor to the right and select LACP.

The LACP Trunks page is displayed. See Figure 39.

Figure 39. LACP Trunks Page

4. The following fields are displayed:

Aggregator ID— Each aggregator must have an ID number. The ID
number is the base port number (or lowest number) of an aggregator.
