Table 45 MCB Ethernet port LED activity
Possible States and Explanations LED Color
Green •
Steady on: the link is up; data can be sent or received through
the Ethernet port
• Steady off: the link is not up; data cannot be sent or received
through the Ethernet port
Amber •
Flashes at irregular intervals: data activity is occurring through
the Ethernet port
• Steady off: no data activity is occurring through the Ethernet port
MCB Fibre Channel port LEDs
The LEDs for the MCB Fibre Channel ports are for future use. Ignore LED behaviors that might
appear.

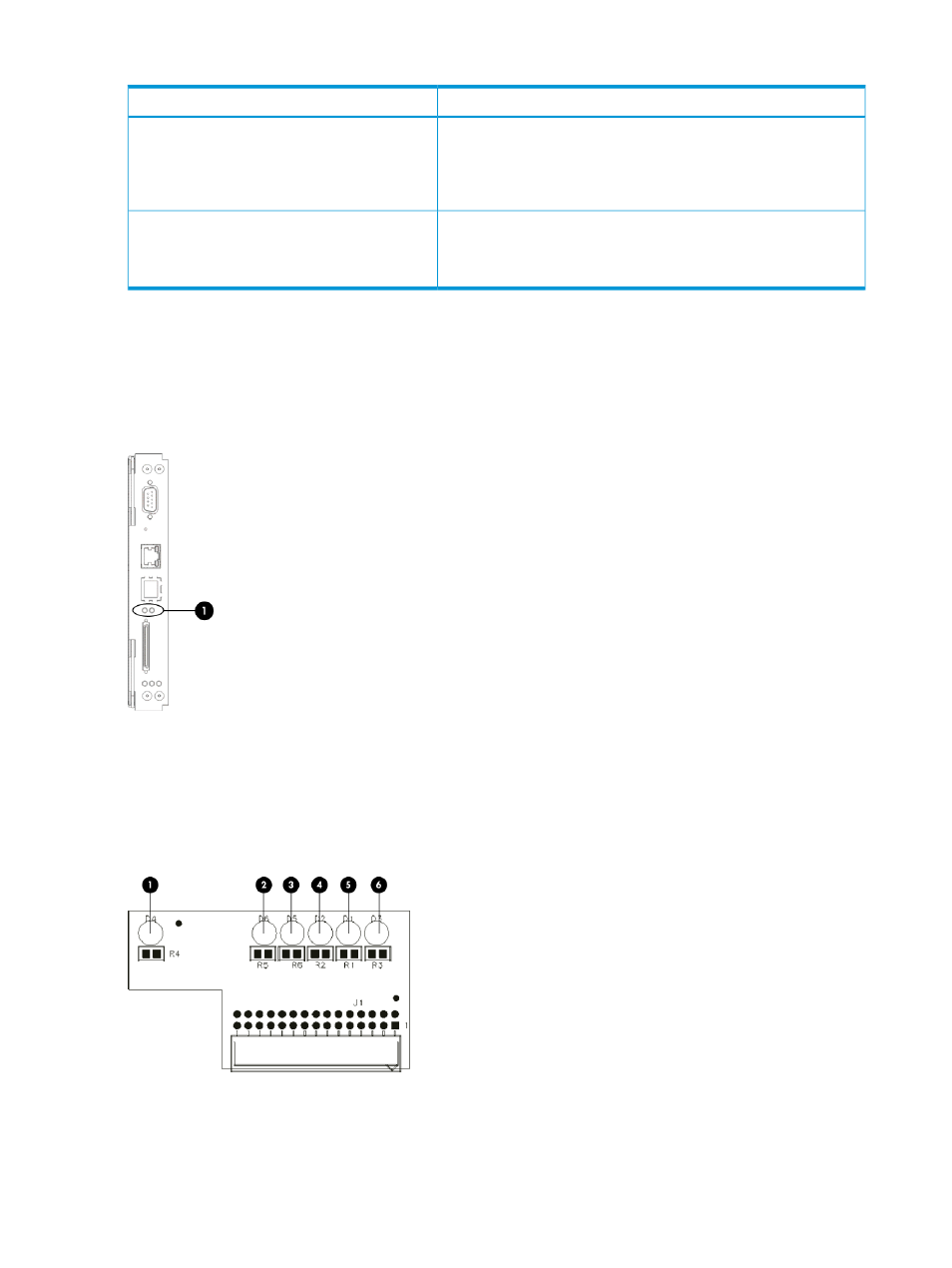

Figure 29 (page 214) shows the locations and colors of the LEDs.
Figure 29 Locations: colors of MCB FC port LEDs
1. MCB Ethernet port LEDs
Interpreting LBX terminator LEDs
The LBX terminator has six green LEDs that indicate the presence of modules in the library.
Figure 30 Locations of LBX terminator LEDs
See Table 46 (page 215) for callout explanations of Figure 30 (page 214) .
214 Troubleshooting your library
