4. HDLM Operation

289

Execute the following command to display the driver configuration information,

and then refer to the instance field of the HDLM driver obtained in step 1 (the

driver name of the HDLM driver is

dlmfdrv

). Identify the path used to determine

the HDLM logical device file name of the LU from the

FilterPath

property.


# /usr/sbin/prtconf -vP

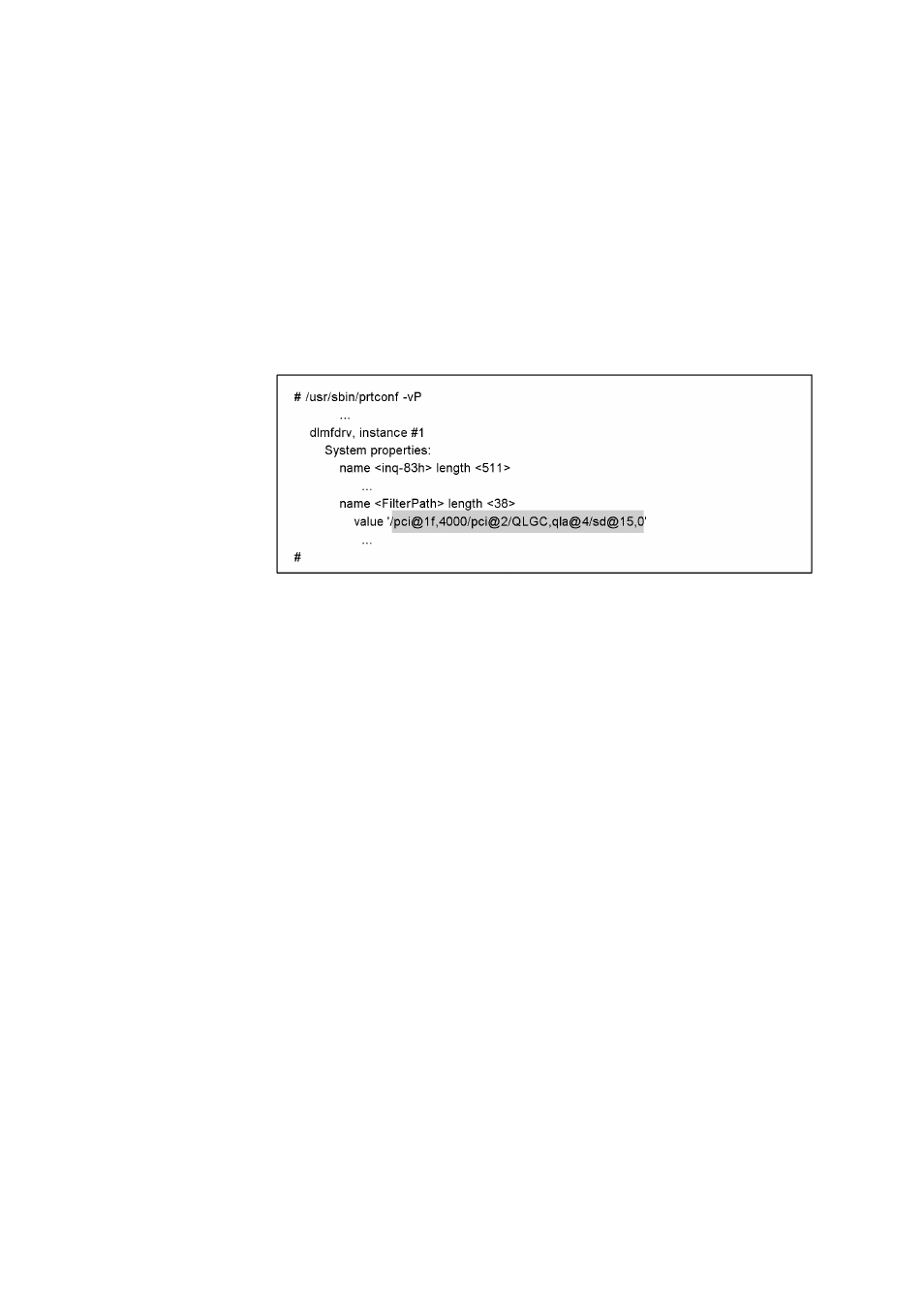

The following shows an example of executing the command.
This example shows the information on instance 1 of the HDLM driver (the driver

name of the HDLM driver is

dlmfdrv

), which is contained in the output results

of the

prtconf

command.

The shaded portion is the physical device file name of the sd or ssd driver of the

path used to determine the HDLM logical device file name.

(3) Switching the Kernel Mode

If you switch the kernel mode from 32 bits to 64 bits when only the 32-bit version of

HDLM is installed, you must re-install HDLM after the switch is completed.
For details on how to switch the kernel mode currently being used, see (5) Switch the

Kernel Mode of 3.5.1 Preparations for a New Installation of HDLM.

(4) When the Path Configuration Is Changed in a Boot Disk Environment

When HDLM changes the path used to determine the logic device file name of an

HDLM device, perform the procedures below. If this procedure is not performed, the

disk might fail to boot because the name of the physical device file corresponding to

the logical device file changed. To obtain the path that HDLM uses to determine the

logic device file name of an HDLM device, execute the procedure described in

(2) When the Path Configuration Is Changed.
1.

Migrate to the local boot disk environment, following the procedure described in

3.7 Migrating from a Boot Disk Environment to the Local Boot Disk
