UWBTracer/Trainer User Manual Chapter 6: Display Options
LeCroy Corporation
77
• Bus Utilization: Displays the Bus Utilization window, including Packet length, Bus
usage, and Bus usage by device.
• Real-Time Statistics: Displays the Real-Time Statistics window, including Data
Packet Count, Data Payload Throughput, and Bus Usage.
• Fonts: Sets the font type and bold or italic style for Fields and Data.
• Configuration Name: You can name the current set of Display Options values for
use with an .opt file. (The options file can have a different name.)
• Restore Factory Presets: Sets all Display Options values to the installed values.
6.2 Display Options: Color, Format, and Hiding
To modify the colors, formats, and hiding options, select the Color/Format/Hiding tab.

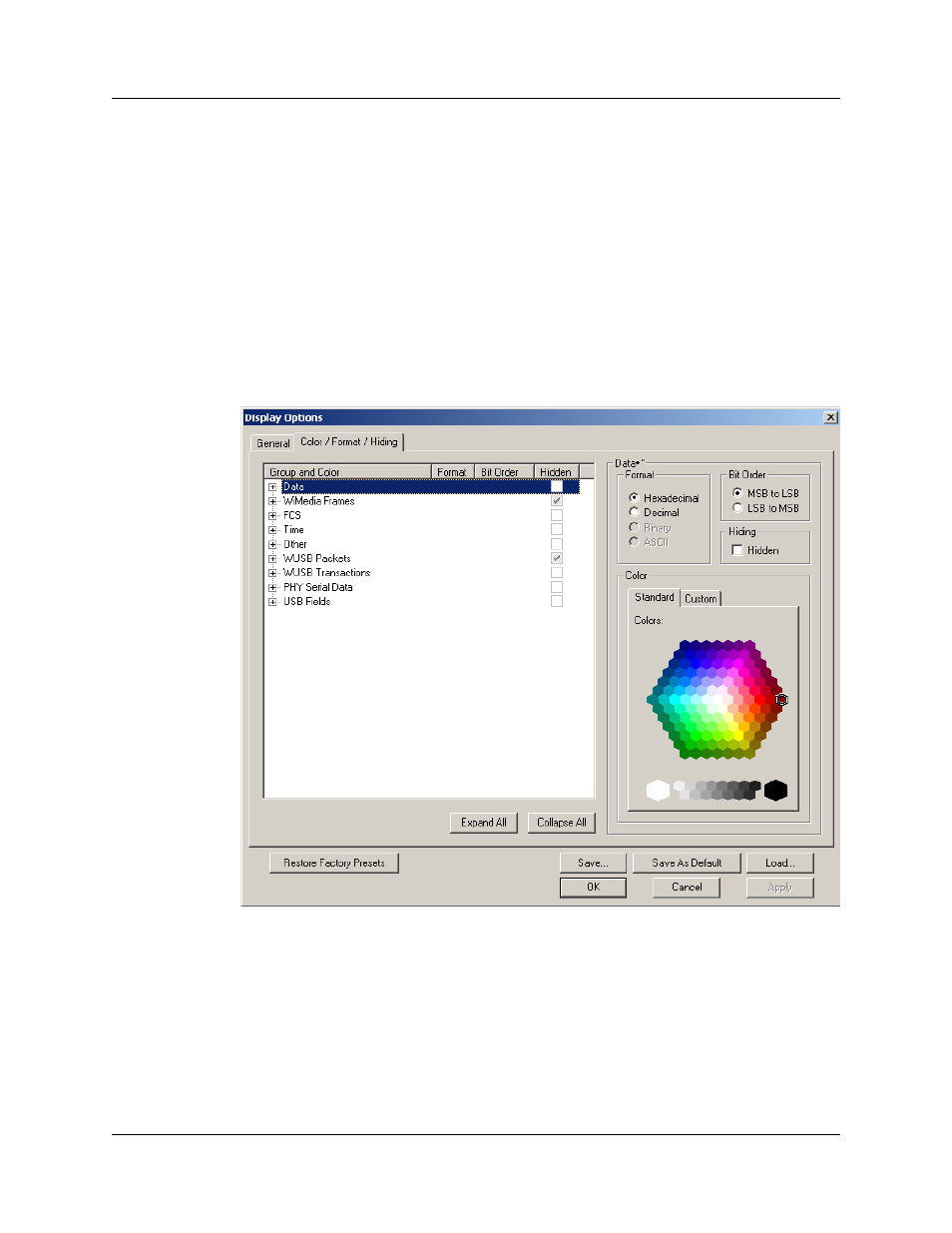

Figure 6.3 Display Options Window: Color, Format, and Hiding Page
