Chapter 6: Display Options UWBTracer/Trainer User Manual
76
LeCroy Corporation
6.1 Display Options: General
You specify the main Trace View information types and settings using General tab of
Display Options (see figure on previous page):
• Zoom Level: Zooms out from 100% (default) to 10% or zooms in from 100% to
200%.
• Enable Tips: Pops up text when you position the cursor over a field.
• Wrap: Wraps lines of traffic information instead of truncating lines at the right edge
of the display.
• Right click cell context menu: By default, clicking the left mouse button on a field
heading displays a context-sensitive pop-up menu providing commands about the
field and clicking the right mouse button pops up a menu with display options. After
selecting this option, clicking the right mouse button on a field heading displays the
context-sensitive pop-up menu and clicking the left mouse button does nothing.
• Hierarchy Lines: Displays lines on the left side of Trace View showing the hierarchy
from Packets to Transactions to Transfers if you show higher-level decodes.

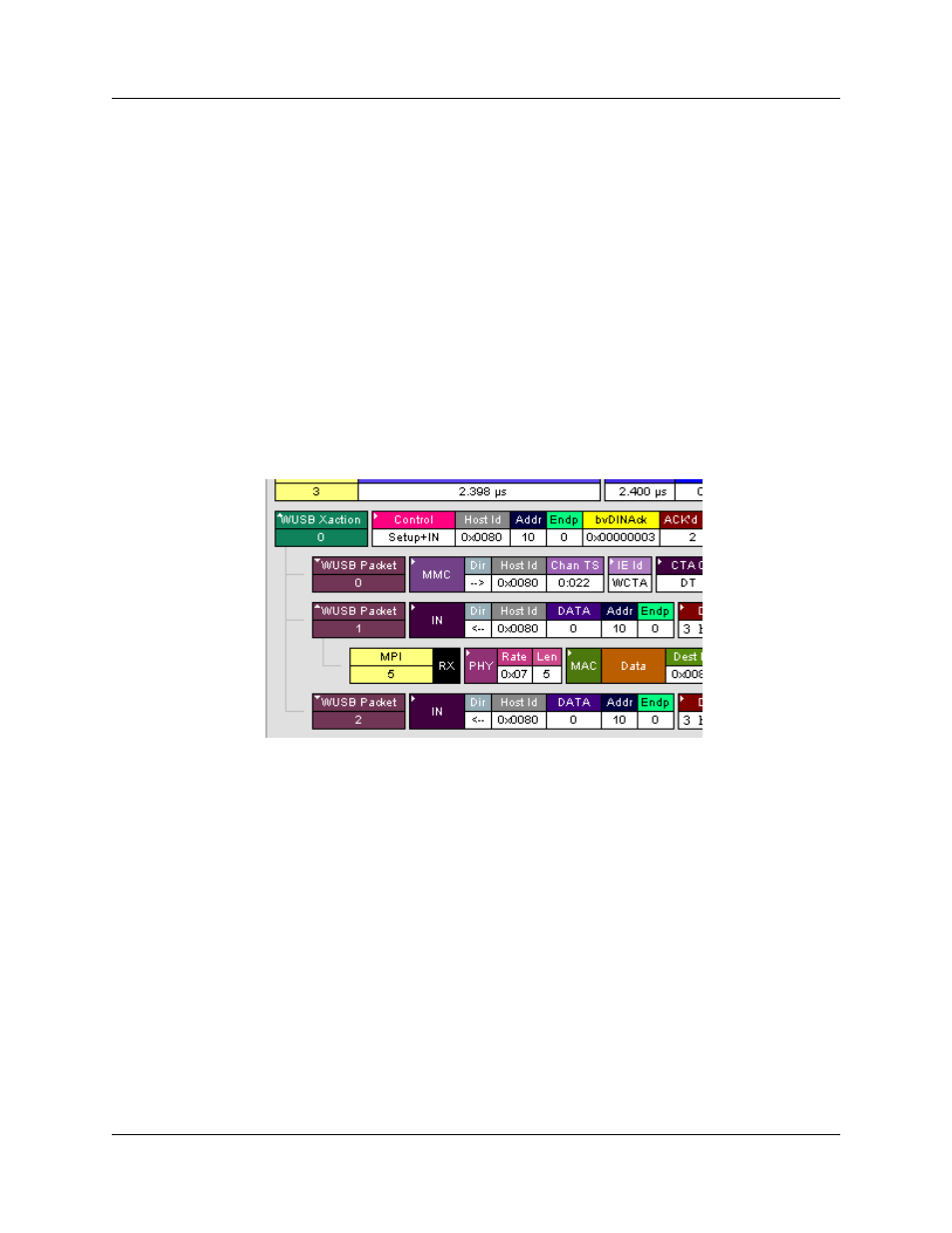

Figure 6.2 Hierarchy Lines
• Timestamp At The Beginning: Aligns the Timestamp field in a column on the left
side of the Trace View. Selecting this option allows easier comparison with previous
or following timestamps.
• Calculate Delta Time from the Previous Frame: Compute the time difference from
the previous frame.
• Hide WiMedia PHY-MAC headers for decoded frames: Hide the headers of
decoded frames.
• Trace Viewing Level: Displays WiMedia Frame, WUSB Packet,
WUSB Transaction, WUSB Transfer, Wire Adapter Segment,
Wire Adapter Transfer, WLP Frame, WLP Ethernet Protocol Unit, and
WLP Internet Protocol Unit.
• Error Report: Displays the Errors section of the Traffic Summary window.
• Traffic Summary: Displays the Traffic Summary window, showing all reports,
including Packets, Transactions, Transfers, and Errors.
