UWBTracer/Trainer User Manual Chapter 3: Software Overview
LeCroy Corporation
27
3.8 Tool Bar
The Main window Tool bar provides quick access to most UWBTracer/Trainer software
functions. You can learn the function of each button by passing the mouse pointer over
it. Button descriptions appear on the Status bar at the bottom of the window and as
tooltips above each button.

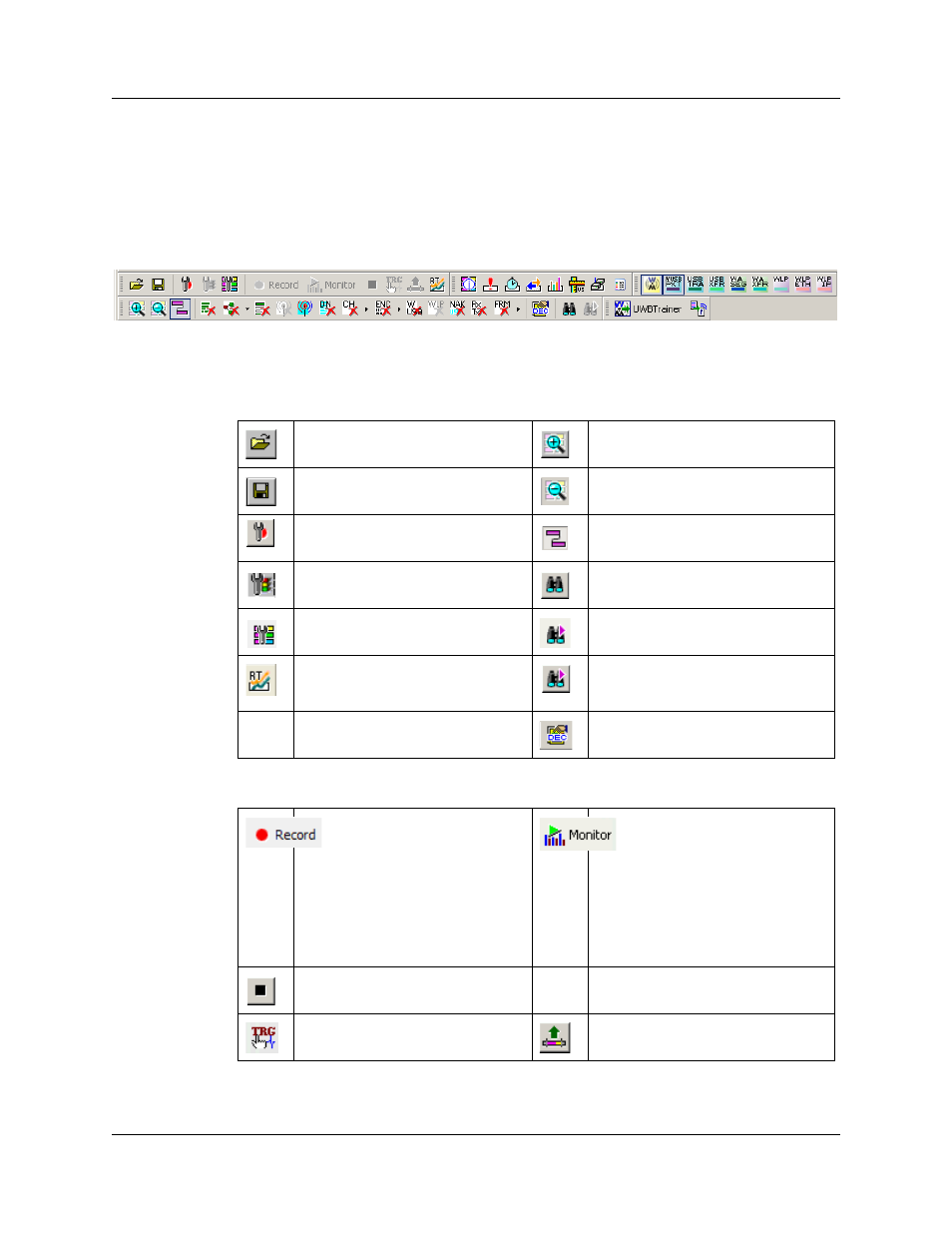

Figure 3.4 Main Window Toolbar
General Buttons
Record Buttons
Open file Zoom In
Save As Zoom Out
Setup Recording Options Wrap
Setup Generation Options Find
Setup Display Options Find Next
Real-Time Statistics. Opens a
window that shows realtime
information on links activity.
Find Next. Repeats last find.
Apply Decoding Scripts
Start Recording
Initiates a monitoring session.
You can see the TraceView
and Timing Analysis views in
real-time. (Clicking the Monitor button
is the same as manually configuring
Recording Options to Snapshot
mode and Spooled Recording scope,
using your current Max Disk Usage
setting.)
Stop Recording
Manual Trigger
Repeat Upload
(Reupload/Partial Upload)
