UWBTracer/Trainer User Manual Chapter 2: Hardware Description
LeCroy Corporation
17
UWB Exerciser Plug-in Module
When powered ON, the UWB Exerciser activates user-accessible controls and LEDs on
front and rear panels of the platform. This section covers front panel features. The next
section covers rear panel features.

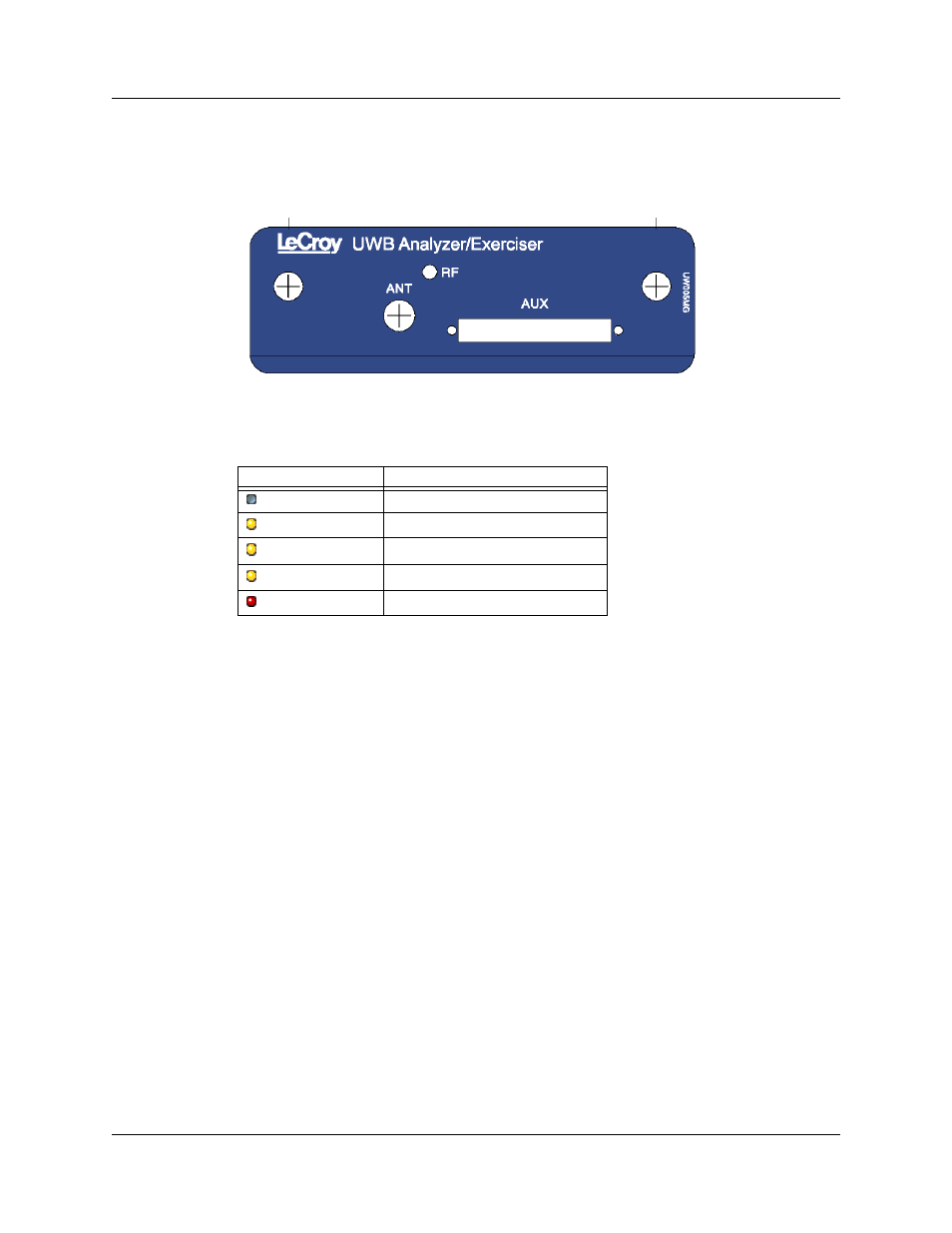

Figure 2.14 UWB Exerciser Plug-in Module
LEDs (status of the Exerciser RF channel)
Connectors
The connectors are:
• ANT: SMA Connector for Antenna
• AUXILIARY: Connector
LED State
No light Idle
Yellow Blink Fast Scenario running
Yellow Blink Slow
Scenario waiting for condition
Yellow Solid
Scenario paused
Red Solid Scenario error
