UWBTracer/Trainer User Manual Chapter 15: Creating and Editing Generation Files
LeCroy Corporation
269
Step 3 (optional) Click the Begin region to display its properties in the
Properties window. By default, the Element Comment is blank, which
you can change.You can also enter a Description of up to 30 characters.
All elements have editable Comments and Descriptions. Click Return to
store entered values.
The Begin block has a small L in a square. This indicates the start of a link. A link
ends on the border of an element.
Note: You cannot edit any properties of the End Element.
Step 4 Select the main Wait or Send element, which is the action element. For
example, select a Send element:

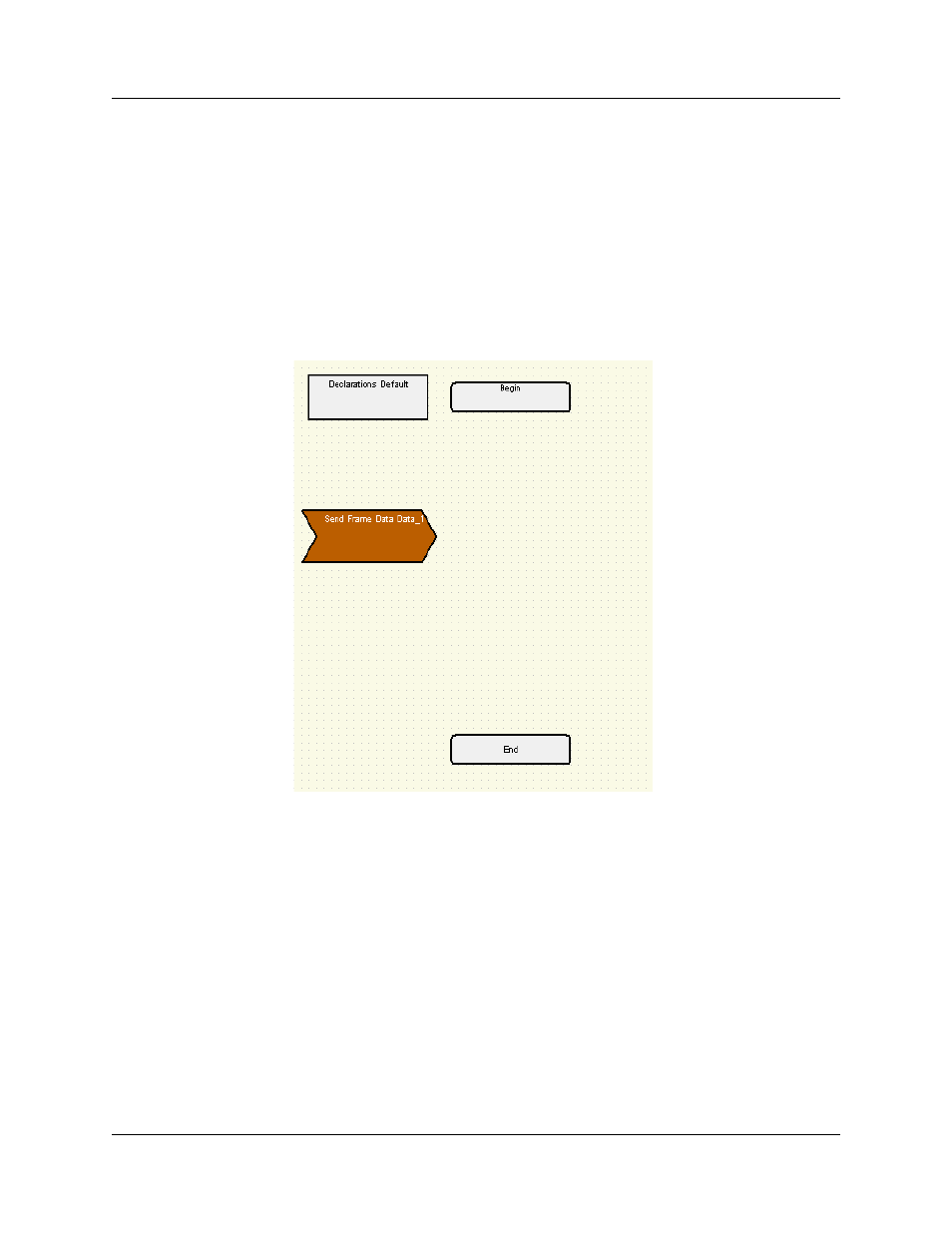

Figure 15.9 Graphical Scenario Example - Action
Set the parameters for the Wait or Send element. For example, if you use a Send
element, select the Template Name from a list of defined templates.Optionally
set the time with the Send Time Method, Send Time Method Value, and Fine
Time Adjustment parameters, the Burst parameter, any Overrides, or the
TimeVar Index parameter.
