Chapter 9: Reports
UWBTracer/Trainer User Manual
124
LeCroy Corporation
General Statistics Area
The right side of the Real-Time Statistics window shows the General Statistics area. The
following figure (Figure 9.24) shows MPI information.

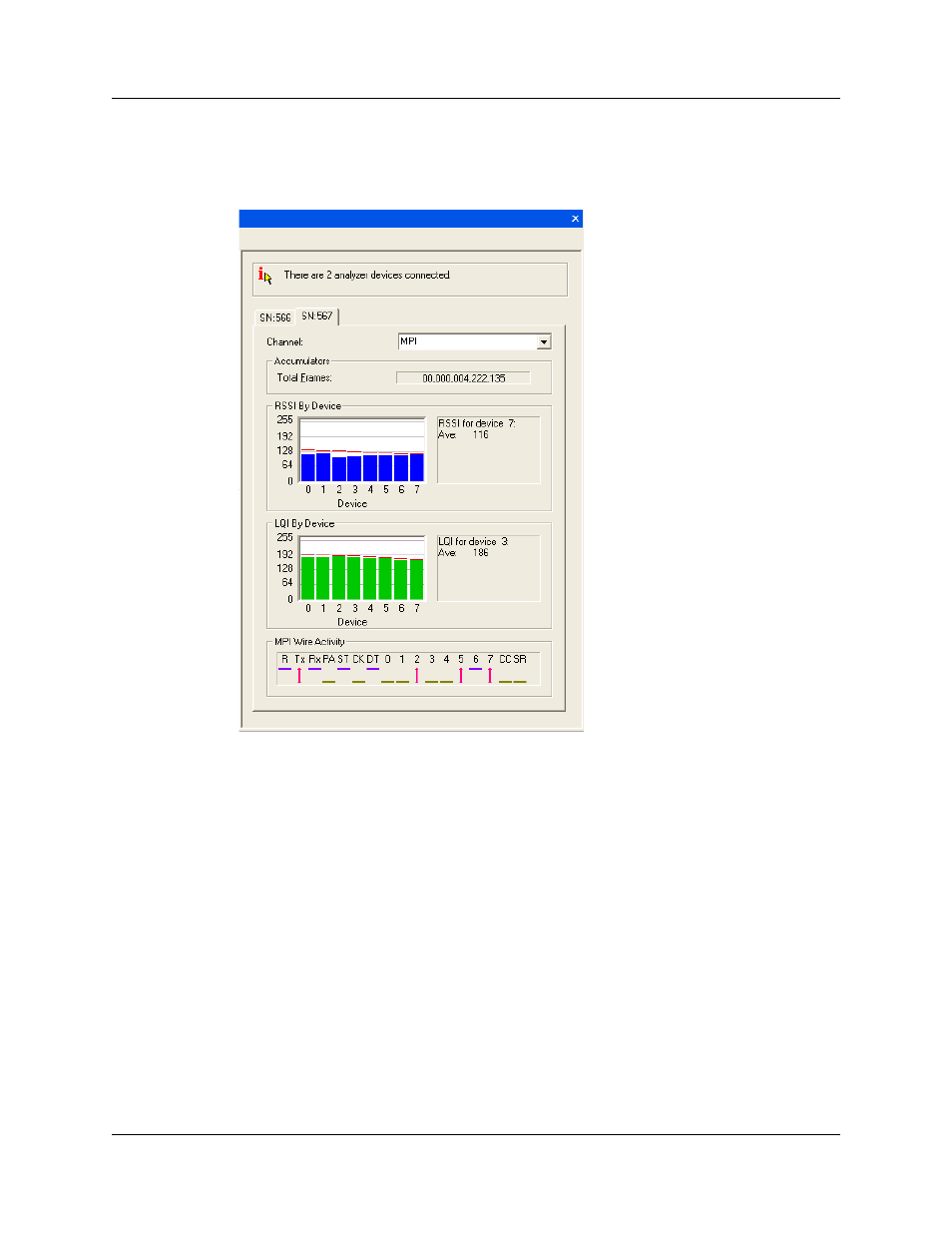

Figure 9.24 Real-Time Statistics Window: General Statistics Area for MPI
Information
It has the following displays:
•
Number of analyzer devices connected: Each one has a tab in the display.
•
Channel: MPI or RF
•
Accumulators: Running count of total frames displayed during the statistics collec-
tion period.
•
RSSI By Device: Histogram showing received signal strength for UWB devices.
•
LQI By Device: Histogram showing link quality for up to eight UWB devices.
•
MPI Wire Activity: Signal state on the MPI bus:
•
Purple bar: Signal high
•
Green bar: Signal low
•
Red arrow: Signal toggled at least once during latest signal period
