UWBTracer/Trainer User Manual Chapter 11: Setting Up for Recording
LeCroy Corporation
165
Chapter 11: Setting Up for Recording
This chapter describes how to connect the triggering cable for external triggering, how to
connect the probe cables and their cable adapters, and how to set up for wireless
recording.
11.1 External Triggering Setup
With each analyzer, LeCroy includes a TRIG-IN/TRIG-OUT BNC Y-cable
(see Figure 2.4) that allows you to export a trigger signal to, and receive a trigger signal
from, external equipment.
The Trigger Cable connects to the EXT DATA connector located on the
UWBTracer/Trainer rear panel, as shown in Figure 11.1.

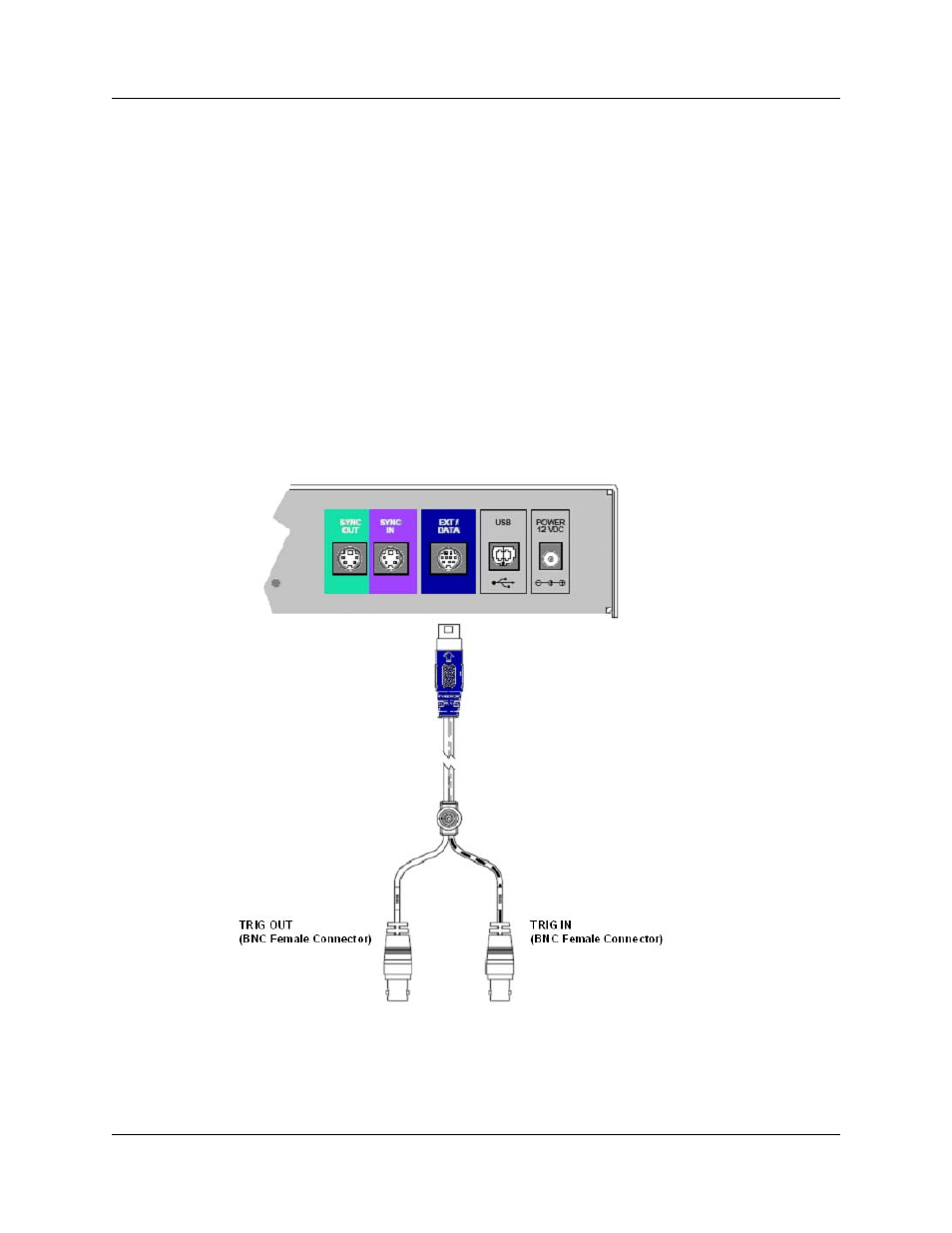

Figure 11.1 EXT DATA Connector and Cable
