UWBTracer/Trainer User Manual Chapter 12: Recording Options
LeCroy Corporation
205
External Trigger Signal Setting
The External Trigger Signal dialog allows you to view and set characteristics of the
external trigger signal for each of the connected analyzer devices.
If an analyzer device is connected to the host machine, you can:
• View the current signal level and force it to HIGH or LOW.
• View the changes to the signal, if any, when a recording session starts.
• View the signal action when a trigger event occurs.
• Set the pulse width of the signal (only if the action is set to Pulse HIGH or
Pulse LOW.

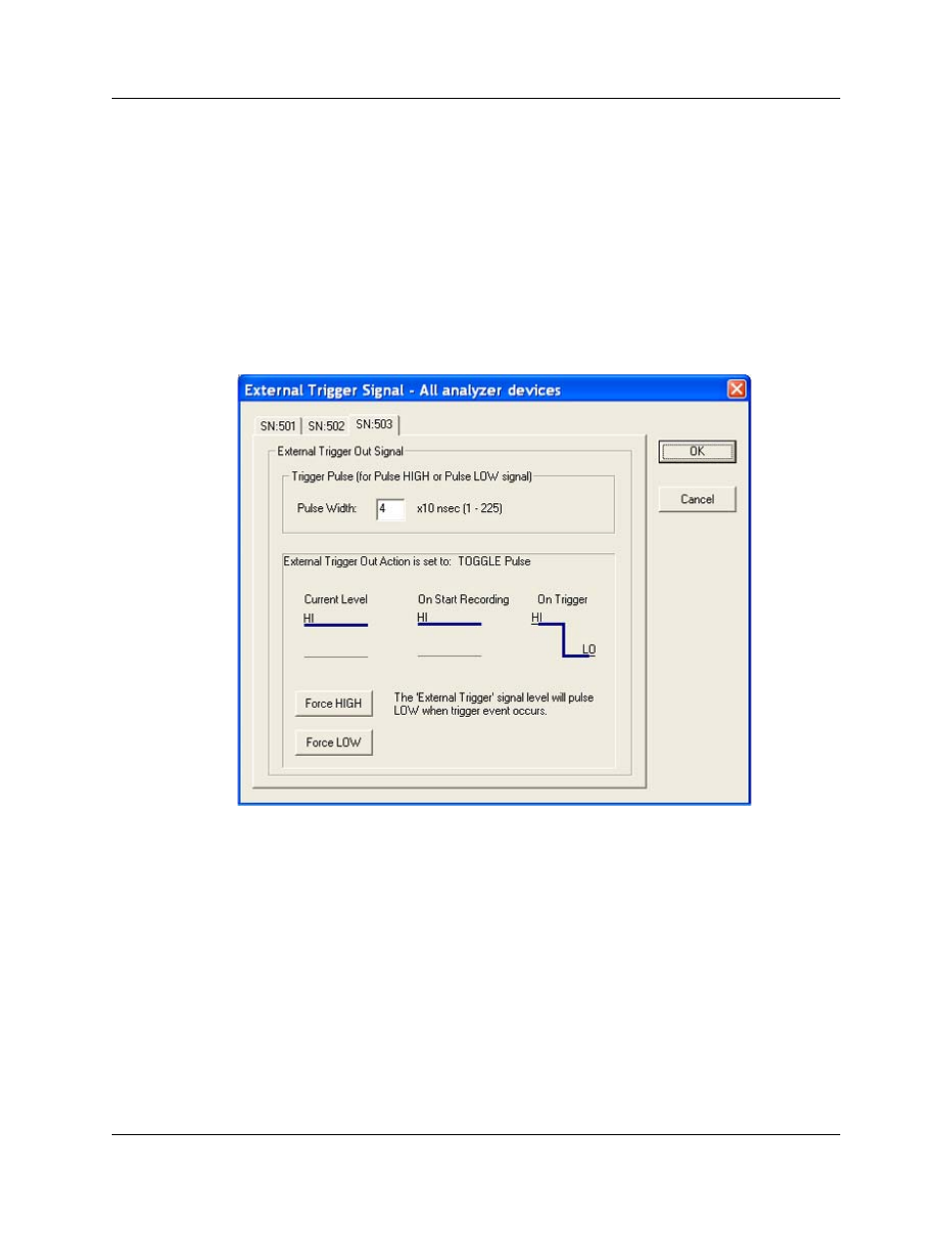

Figure 12.23 External Trigger Signal Dialog for Toggle Action and
HIGH Signal Current Level
