UWBTracer/Trainer User Manual Chapter 9: Reports
LeCroy Corporation
115
Step 5 In the Select Range dialog box, select WiMedia Frame as the protocol
unit. Enter 3 as the start point of the range (Figure 9.13).

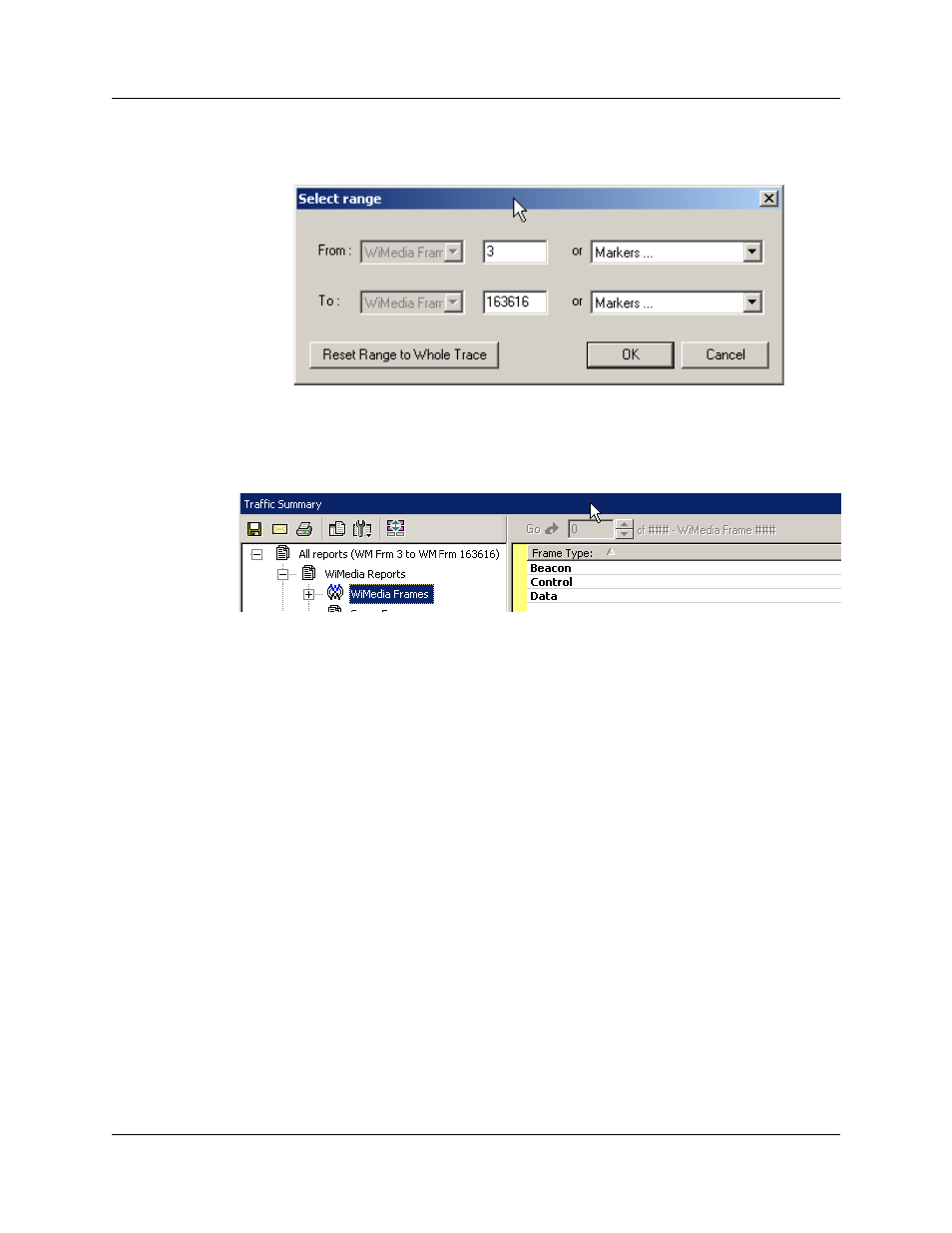

Figure 9.13 Setting Range to Start on Third Frame
Step 6 The Traffic Summary window now shows statistics for Frame 3 through
Frame 163616 of the trace (Figure 9.14).
Figure 9.14 Traffic Summary for Three MPI Frames
