UWBTracer/Trainer User Manual

Chapter 7: Decoding USB/WUSB Requests

LeCroy Corporation

99

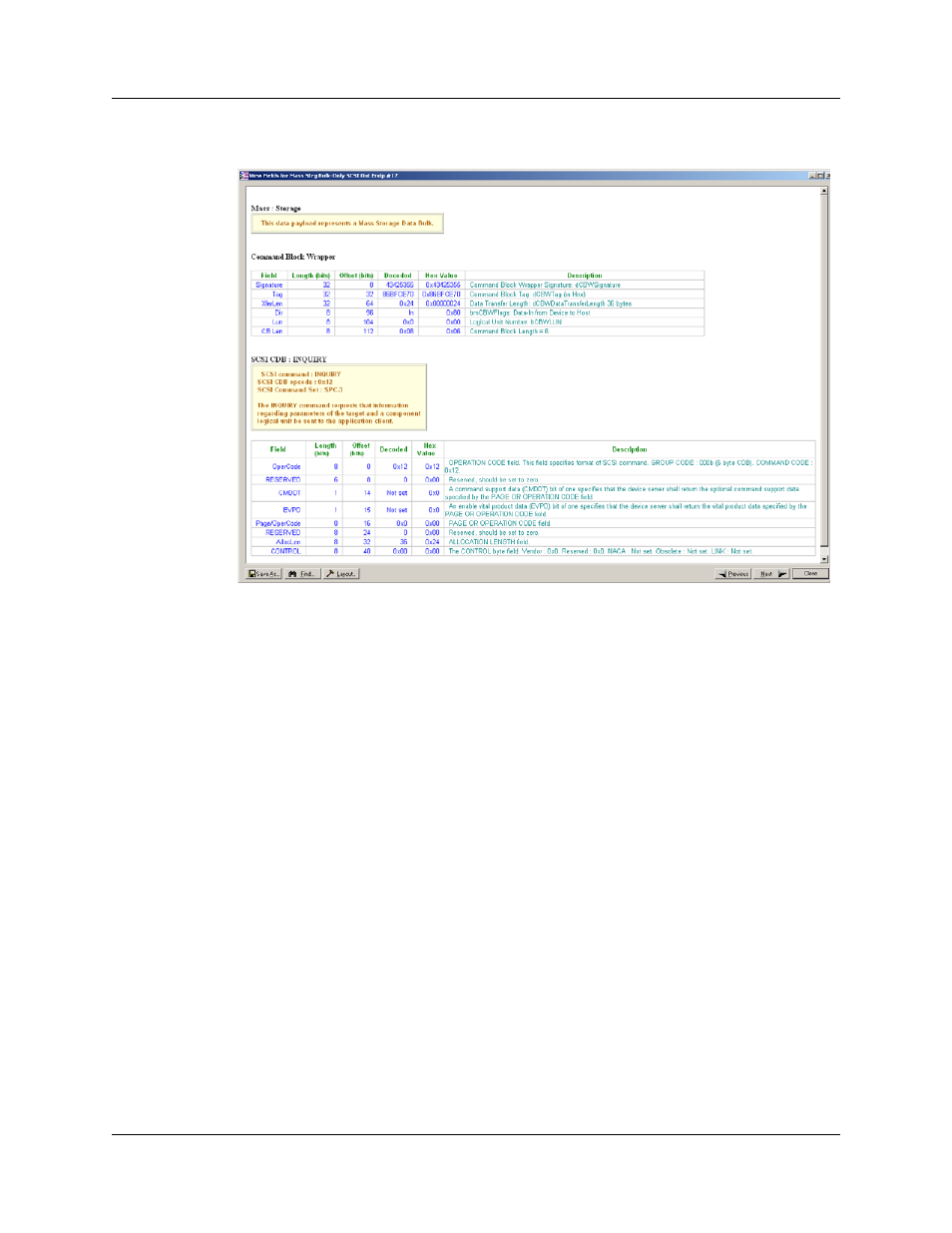

Figure 7.16 shows a Mass Storage Bulk-only SCSI Out Endpoint:

Figure 7.16 View Fields for Mass Storage Bulk-only SCSI Out Endp

Text Box

Changing the Layout of Decode Requests

In the View ... Fields windows, the Decoding Information and the Descriptor information
blocks (following the Request Summary information) have the following columns:

•

Field: such as bRequest, wValue, wIndex, bLength, bDescriptorType, wTotalLength

•

Length in bits

•

Offset in bits

•

Decoded: hex value typically equal to Hex Value

•

Hex Value: hex value typically equal to Decoded

•

Description: short description of field

To change the layout of decode requests display:
