Chapter 3: Software Overview UWBTracer/Trainer User Manual
30
LeCroy Corporation
3.10 Pop-Up Menus
Pop-up menus within the trace provide options for formatting the trace.
Left Mouse Button
Left-clicking a header opens a menu for expanding fields, viewing data fields, and
formatting the trace. The menu is context-sensitive and changes, depending on what part
of the trace you have clicked. Figure 3.6 shows three examples.

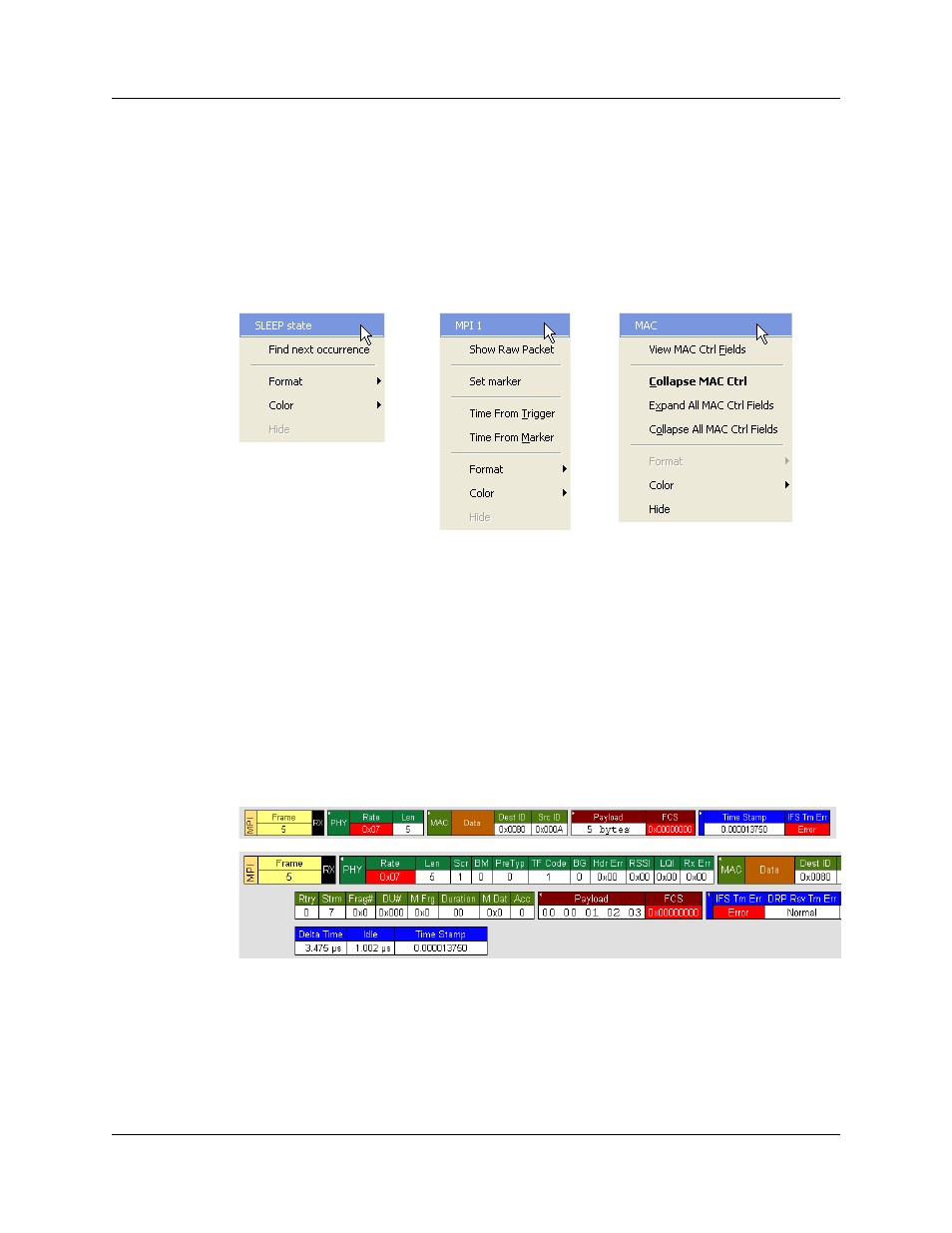

Figure 3.6 Trace Pop-Up Menus
Common options appear on most menus:
• Format: Presents choices for changing the numerical formatting of the data fields
throughout the trace.
• Color: Presents choices for changing the color of the data fields throughout the
trace.
• Hide: Hides data fields throughout the trace. To re-display hidden fields, right-click
anywhere in the trace and select Unhide Cells and then one of the options from the
sub-menu.
Left-clicking the small triangle in the upper left corner of the PHY, MAC, Payload, or
Timing data block expands the data block to show all fields.
Figure 3.7 Expanded Data Block
If you double-click a cell of a PHY, MAC, Payload, or Timing data block, the trace displays
all the fields of the block (see Figure 3.7). If you double-click a cell of an expanded block,
the trace displays the truncated block
