UWBTracer/Trainer User Manual Chapter 9: Reports
LeCroy Corporation
113
Setting Traffic Summary Display Options
You can control the appearance of the traffic summary display using the Options button
on the Traffic Summary tool bar. When you click the button, the Options drop-down menu
appears (Figure 9.9).

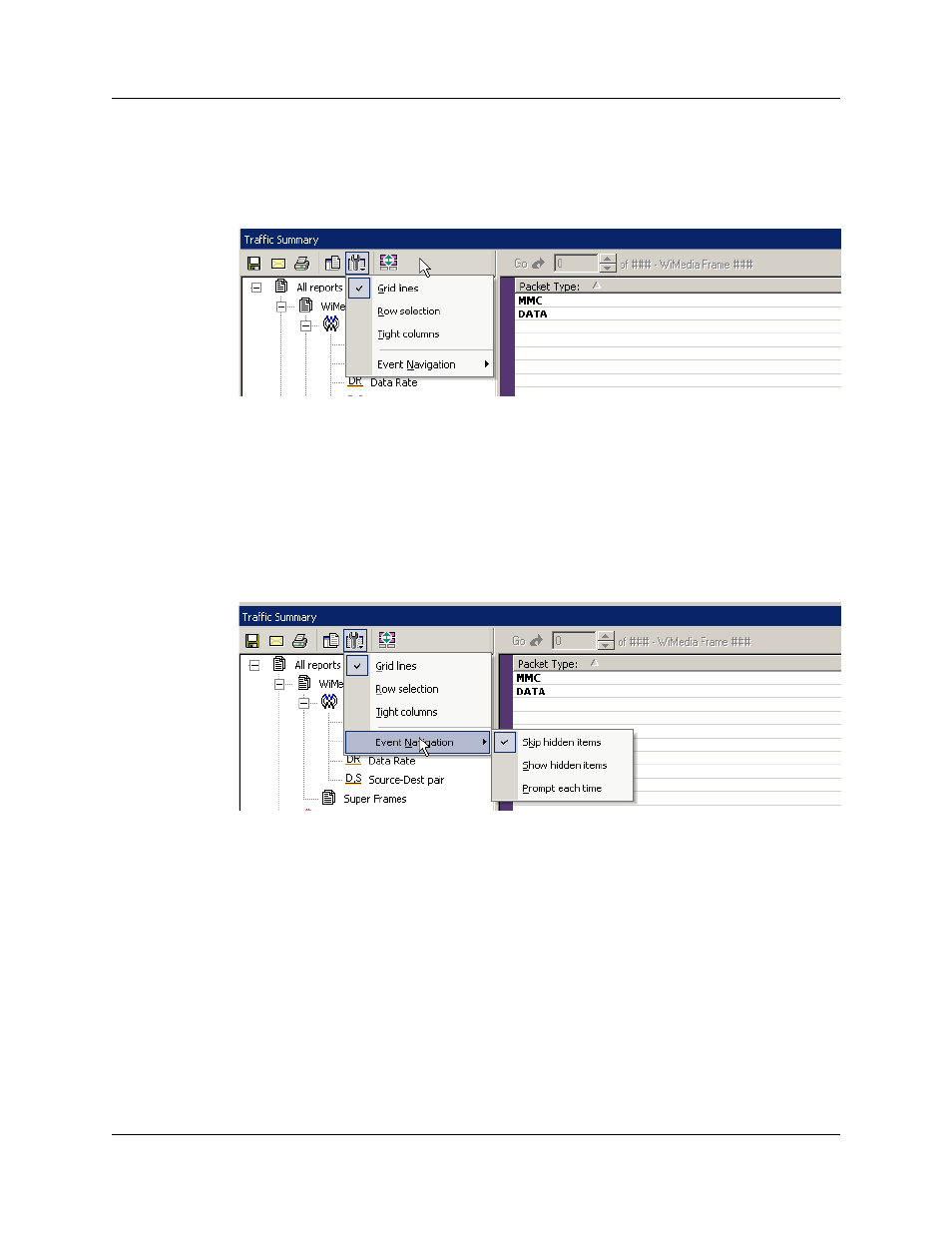

Figure 9.9 Traffic Summary Options Menu
Grid Lines: Enables/disables grid lines to the display.
Row Selection: Enables/disables row highlighting in the right pane.
Tight Columns: Enables/disables narrow columns in the display.
Event Navigation: Displays a menu that allows you to set parameters for using traffic
summary to navigate in the trace (trace navigation is described later in this section)
(Figure 9.10).
Figure 9.10 Event Navigation Submenu
In the Event Navigation menu, the Skip hidden items option means you cannot navigate
to hidden items in the trace. Show hidden items means if you navigate to a hidden item,
the item is shown in the trace. Prompt each time means you can navigate to a hidden
item, but UWBTracer/Trainer™ prompts you to indicate whether or not you want the item
to appear in the trace.
