UWBTracer/Trainer User Manual Chapter 9: Reports
LeCroy Corporation
105
Chapter 9: Reports
Reports assist you in analyzing traffic recorded by the analyzer. The available reports
are:
• File Information: To view general information about the trace file.
• Error Summary: To view a count of errors in a trace file.
• Timing Calculations: To view timing measured between two markers or counters
set within the trace file.
• Traffic Summary: To view a summary of protocol-related information in the trace
file summary information about a selected group of items in the trace file (such as a
count of particular frame or packet types).
• Device List: Lists the DUTs, active devices, archive devices, wireless USB, and
WLP devices by DUTs, Type, EUI-48, Address, Alias, Last Updated, and
User Notes
• Timing Analysis Views: Analyzes Beacon, WUSB, and Superframe timing.
• Run Verification Scripts: To run verification scripts over the open trace, perform
custom trace analysis, and create custom reports. (Fore more information, see the
LeCroy UWBTracer Verification Script Engine Manual.)
See Section 3.18 "Directory Structure on Windows XP and Vista" on page 47.
Reports are available from the Report menu and from buttons on the Tool bar.

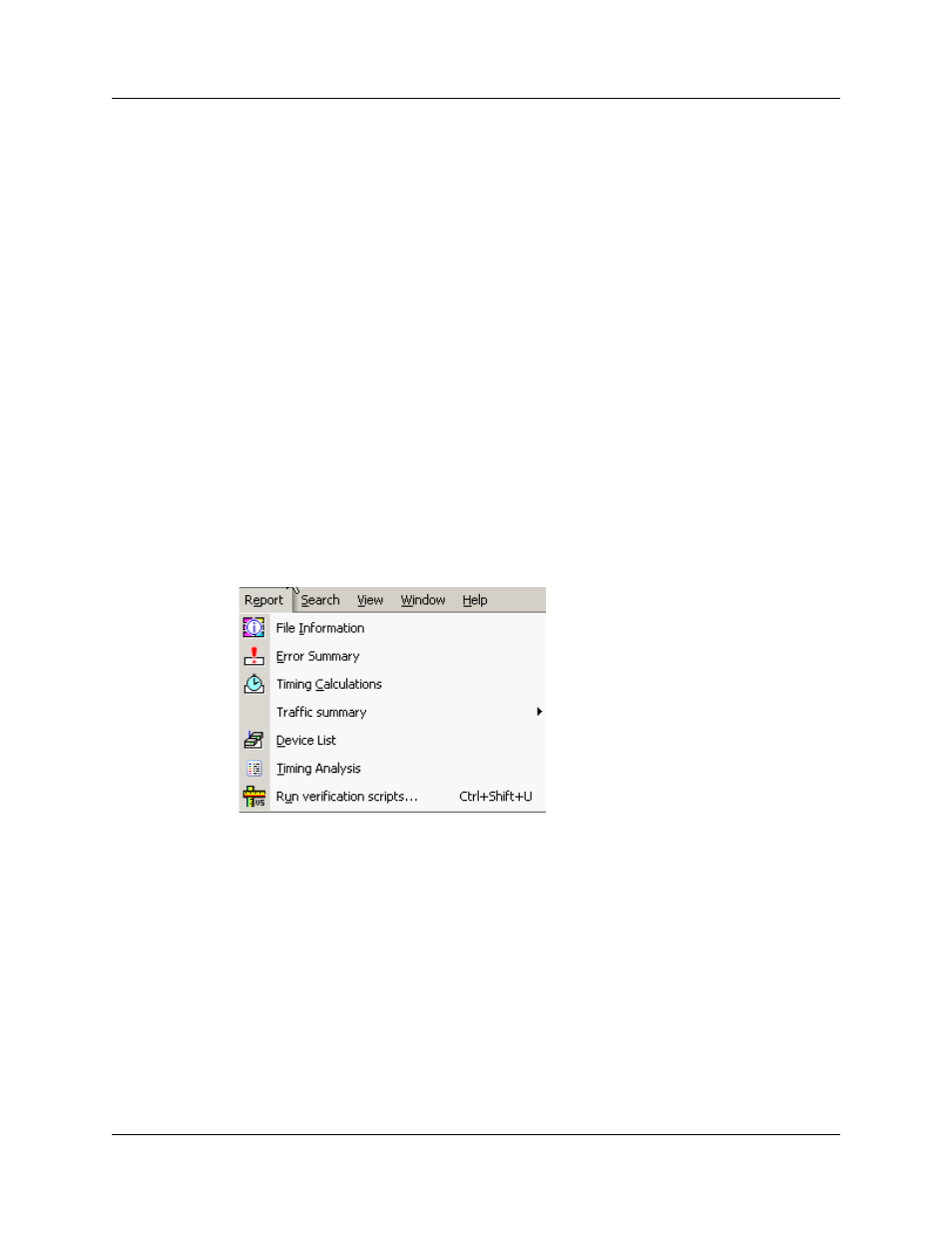

Figure 9.1 Report Menu
This chapter also describes:
• Real Time Statistics: Summarizes the occurrences of frame types and error types
in a trace file for all connected devices.
• Bus Utilization: Displays information on bandwidth use for the recording channels.
