Chapter 3: Software Overview UWBTracer/Trainer User Manual
32
LeCroy Corporation

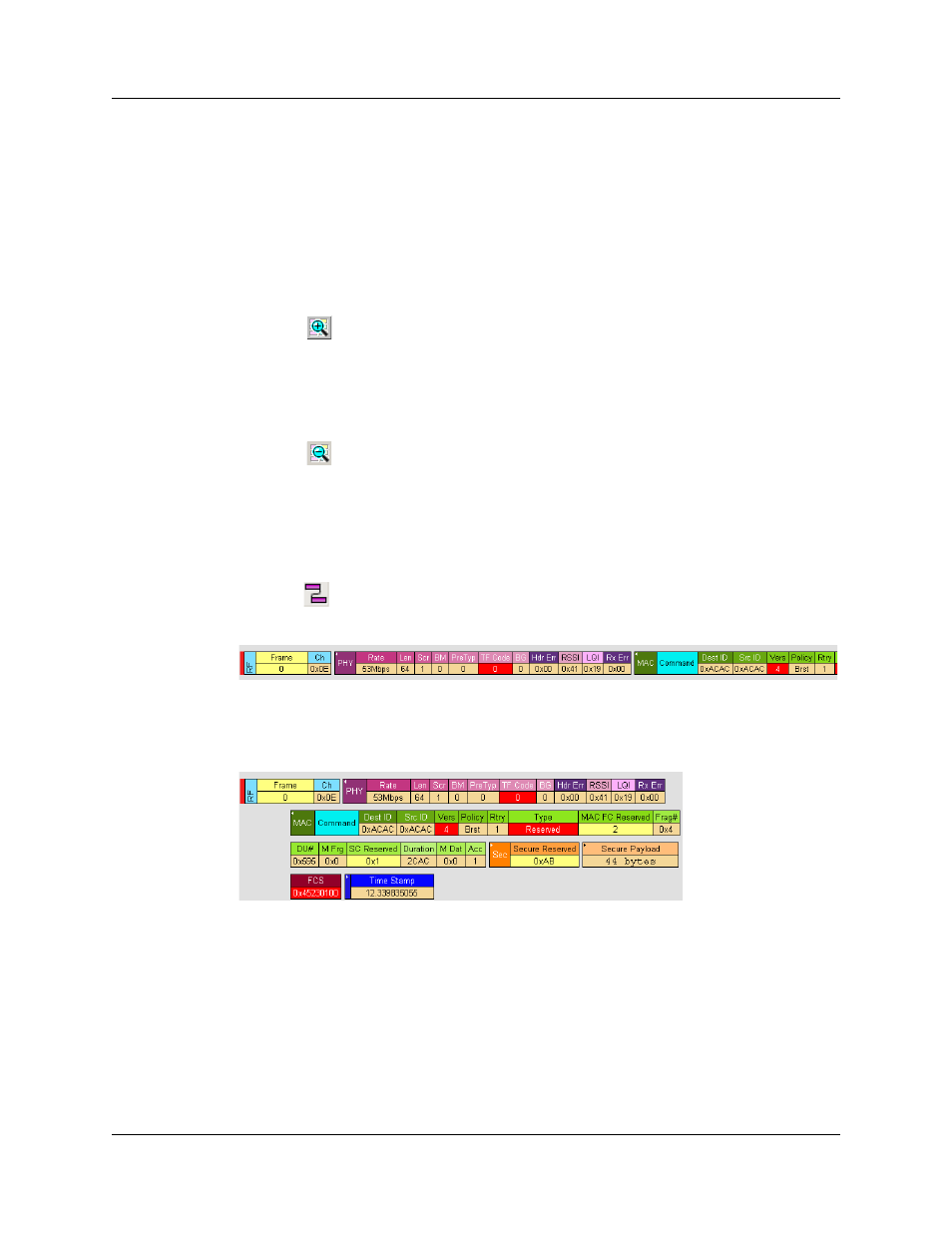

3.11 View Settings Tools
You can zoom in and out, and wrap the trace to fit within the screen by using the following
buttons:
Zoom In
Increases the size of the displayed elements, allowing fewer (but larger) Frame fields per
screen.
• Click on the Tool bar.
Zoom Out
Decreases the size of the displayed elements, allowing more (but smaller) Frame fields
per screen.
• Click on the Tool bar.
Wrap
Adjusts the Trace View so that frames fit onto the next line if they are longer than the size
of the window. Without wrap, you can use the horizontal scroll bar to see the hidden part
of a frame.
• Click on the Tool bar.
In Figure 3.9, the timestamp extends off the right edge of the screen.
Figure 3.9 Trace With Wrap Turned OFF
In Figure 3.10, the entire frame appears in the window.
Figure 3.10 Trace With Wrap Turned ON
