Chapter 2: Hardware Description UWBTracer/Trainer User Manual
12
LeCroy Corporation
MPI Kit
The MPI kit is designed for hooking to the MPI bus in two types of setups:
1.
PHY subsystem connects to the MAC subsystem through a short (ribbon) cable.
2. PHY subsystem piggybacks directly on the MAC subsystem. The two subsystems
connect through an adapter board without the use of cables.
Three types of connectors are common for current designs:
1.
IDE 40-pin connector
2. Hirose 68-pin Connector
3. Hirose 60-pin Connector
The optional MPI Kit includes:

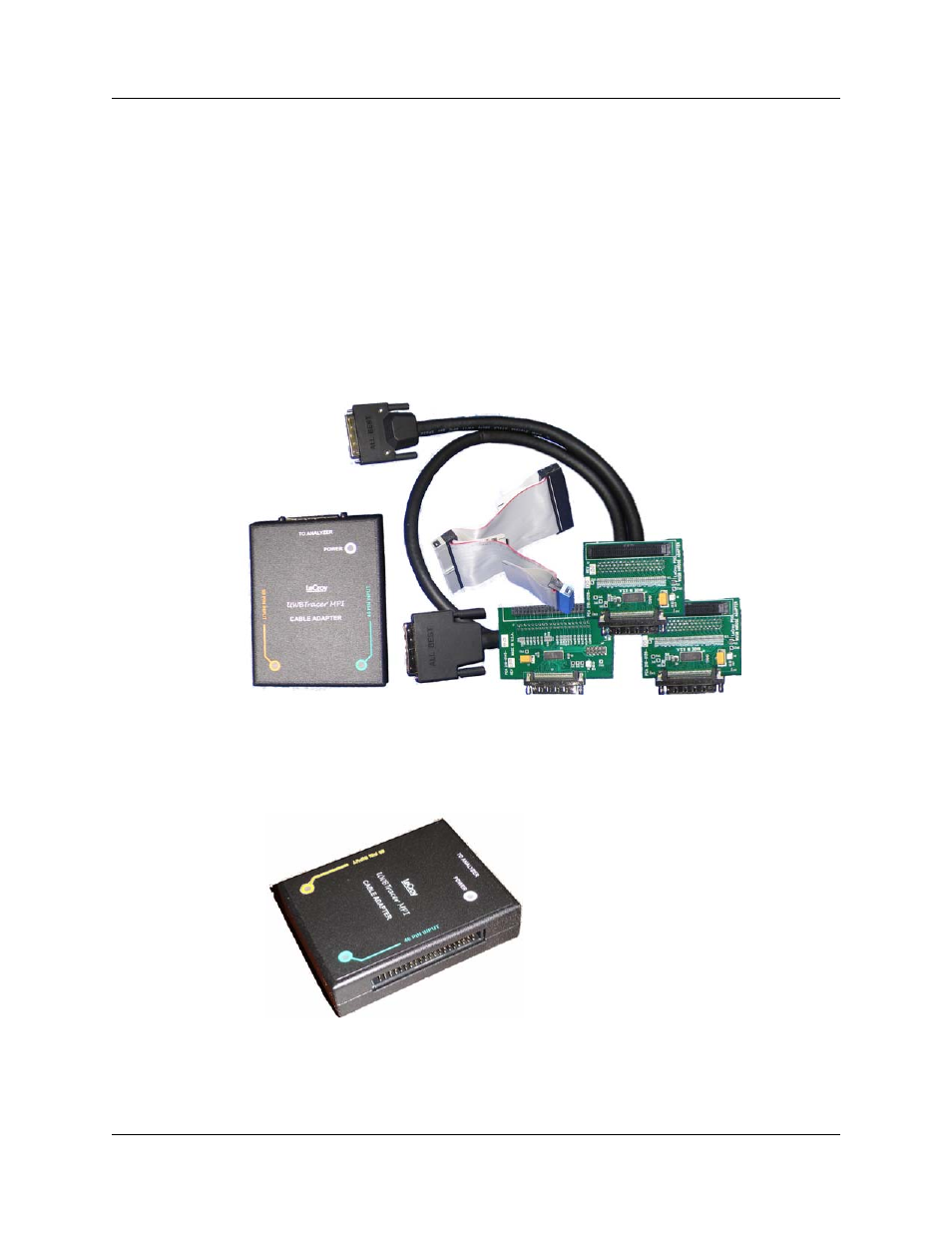

Figure 2.7 MPI Kit
• Cable Adapter for Hirose 68-pin or IDE 40-pin Connectors
Figure 2.8 Cable Adapter for Hirose 68-pin or IDE 40-pin Connectors
