UWBTracer/Trainer User Manual Chapter 9: Reports
LeCroy Corporation
149
Display Options for Beacon Period View
Right-click the Timing Analysis window Beacon Period View to display the
Timing Analysis Display Options for Beacon Period View menu:

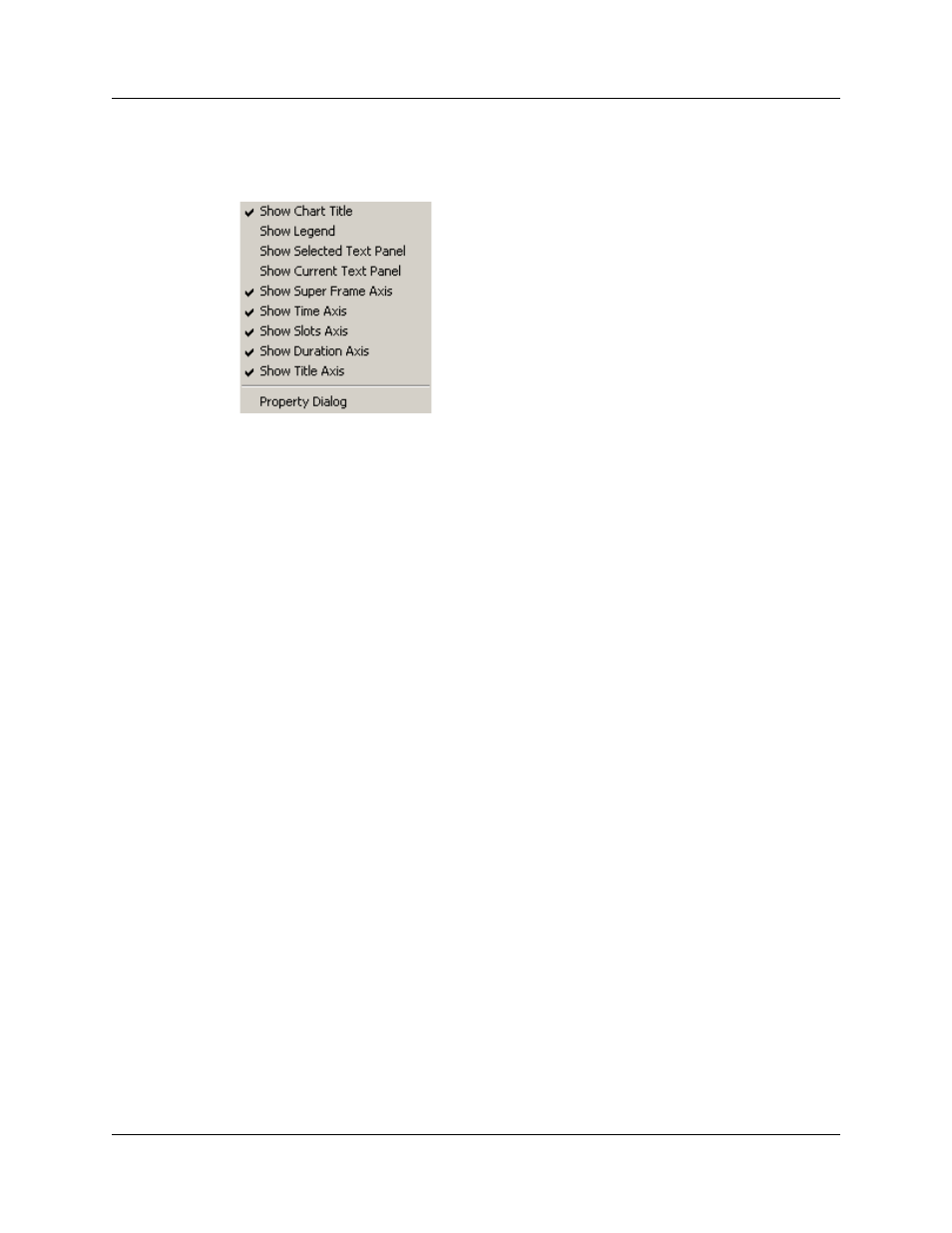

Figure 9.50 Timing Analysis Display Options for Beacon Period View
Menu
The options are:
• Show Chart Title: Display or hide the left vertical blue bar that says
WUSB Detail View or Beacon Period View.
• Show Legend: Display or hide the list of colors for Beacon Specification, Alien
Beacon Specification, Invalid Beacon Specification, Slowest Device Indicator, Prior
BP, Movable, Invalid, Unoccupied, Occupied and Invalid, Occupied and Movable,
Occupied and Nonmovable
• Show Selected Text Panel: Display or hide the Selected Item window in the lower
right corner.
• Show Current Text Panel: Display or hide the Item Under Cursor window in the
lower right corner.
• Show SuperFrame Axis: Display or hide the bottom bar that shows the
SuperFrame index.
• Show Time Axis: Display or hide the tan time axis at the bottom of the window.
• Show Slots Axis: Display or hide the green slots axis at the bottom of the window.
• Show Duration Axis: Display or hide the duration bar at the top of the window.
• Show Title Axis: Display or hide the Traffic and Transaction Group headings at the
left of the window.
• Property Dialog: Allows you to set time synchronization and select the display
options for the Beacon Period, WUSB Detail, and Superframe Grid views (see
previous section for screenshot).
