UWBTracer/Trainer User Manual Chapter 7: Decoding USB/WUSB Requests
LeCroy Corporation
87
Step 8 Click OK.
Mapping Endpoint to Class/Vendor Decoding
To assign a Class/Vendor Endpoint decoding:
Step 1 Click the Apply Decoding Scripts button on the Toolbar.
OR
Left-click the Bulk/Int Transfer field to display the USB/WUSB Device Request
menu.
Step 2 Select Map Endpoint to Class/Vendor Decoding to display the
Request Recipients and Endpoints dialog box.
Step 3 Click the Endpoints tab to display the Endpoints dialog box:

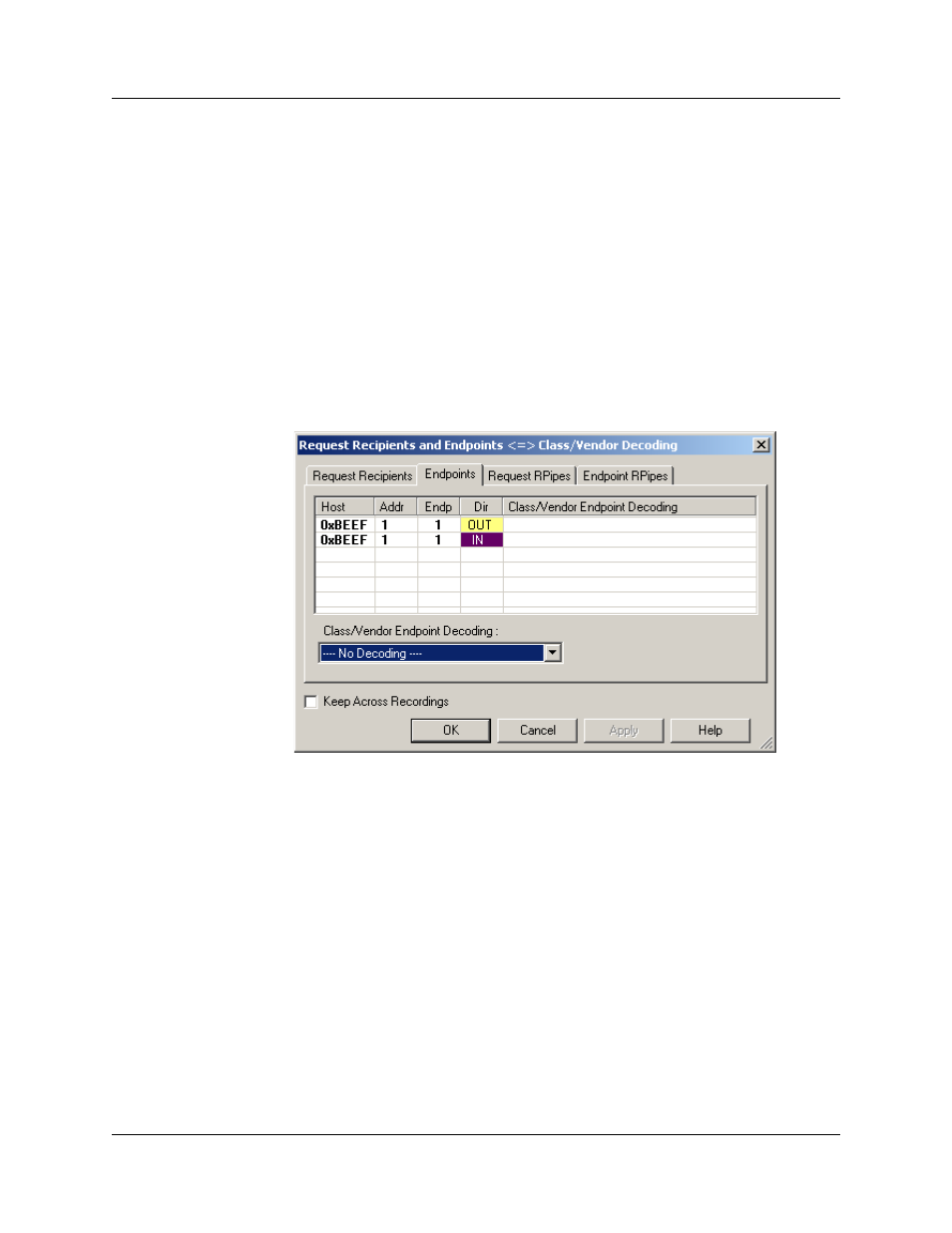

Figure 7.3 Endpoints Dialog Box
The Endpoint field (Endp) shows all Endpoints found in the trace file. The
displays shows the Host, Address, and Direction for the recipient. On the right
are the names of Class/Vendor Endpoint Decoding groups currently assigned to
endpoints. If blank, no decoding is assigned for a recipient.
Step 4 Select an endpoint.
