View Settings Menu
Clicking the View settings button causes a menu to open with options for
formatting the display.

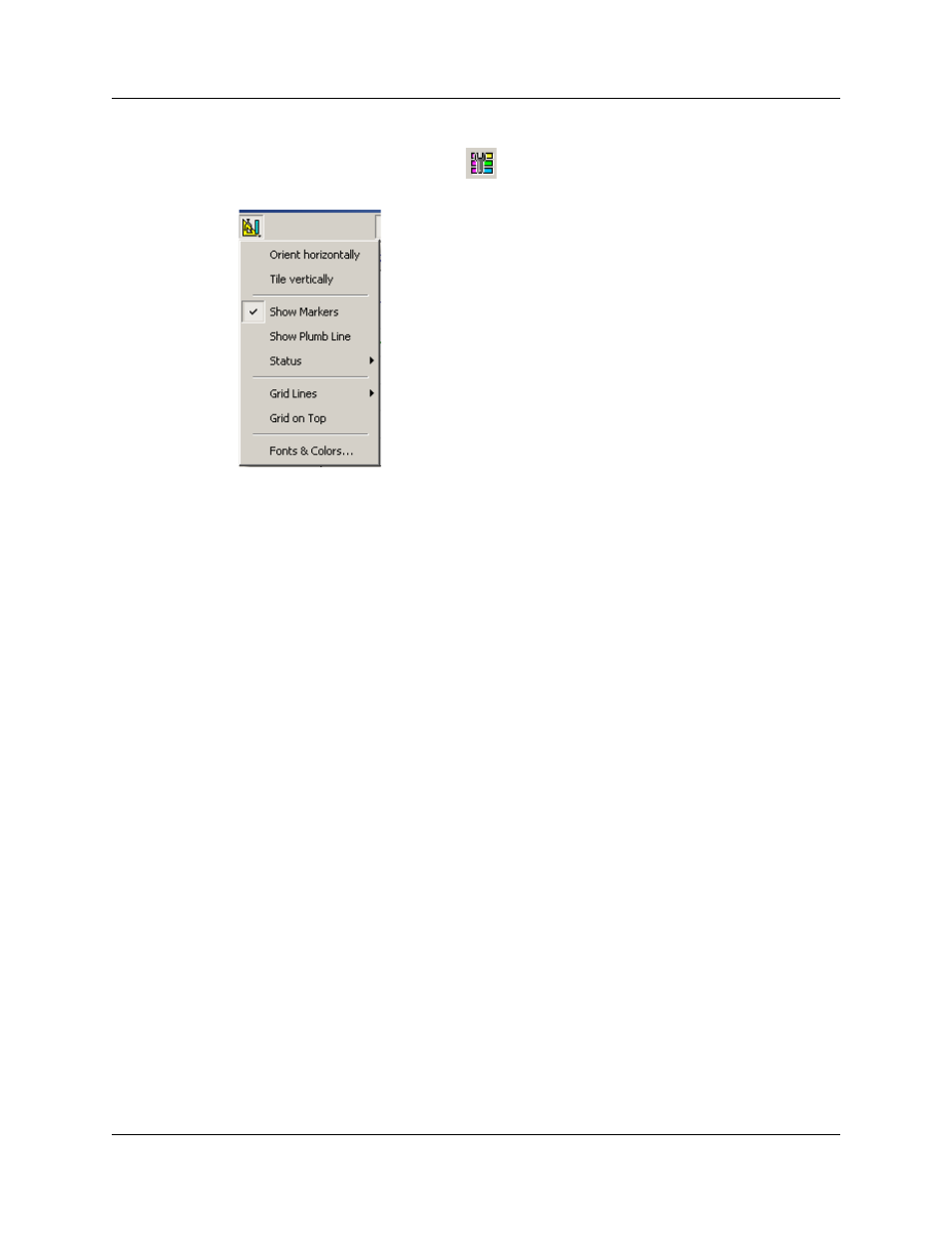

Figure 9.28 View Options: View Settings Menu
• Orient Horizontally: changes the orientation of bus usage to horizontal. After
selecting this option, the menu has Orient Vertically.
• Tile Vertically: tiles the two graphs vertically (i.e., side by side). After selecting this
option, the menu has Tile Horizontally.
• Show Markers: Places "tick" marks along the x axis of each graph.
• Show Plumb Line
• Status: Opens a submenu with the following options:
• Bar: Displays a status bar at bottom of graph.
• Tooltip: Causes a tooltip to appear if you position your mouse pointer over
part of the graph and leave it there for a couple of seconds.
• None: Turns off tooltips and the status bar.
• Grid Lines: Opens a submenu with the following options:
• Both Axes: Displays both X and Y axis gridlines
• X Axis: Displays X axis gridlines
• Y Axis: Display Y axis gridlines
• No Grid: Turns off gridlines
• Grid on Top: Moves the grid lines above the graph.
