Wireless USB View
The Wireless USB view provides a graphical depiction of the timing between the WUSB
packets in a transaction group and between transaction groups. The top row (starting with
MMC and In in Figure 9.52) depicts the timing and duration of the actual received packet.
The bottom row (starting with MMC, DNTS, and DT in Figure 9.52) shows the scheduled
time windows (CTAs), which are extracted from the MMC packets. The bottom MMC
depicts the “start time” of the top MMC, which is really very short, as a fading colored
block for clarity.

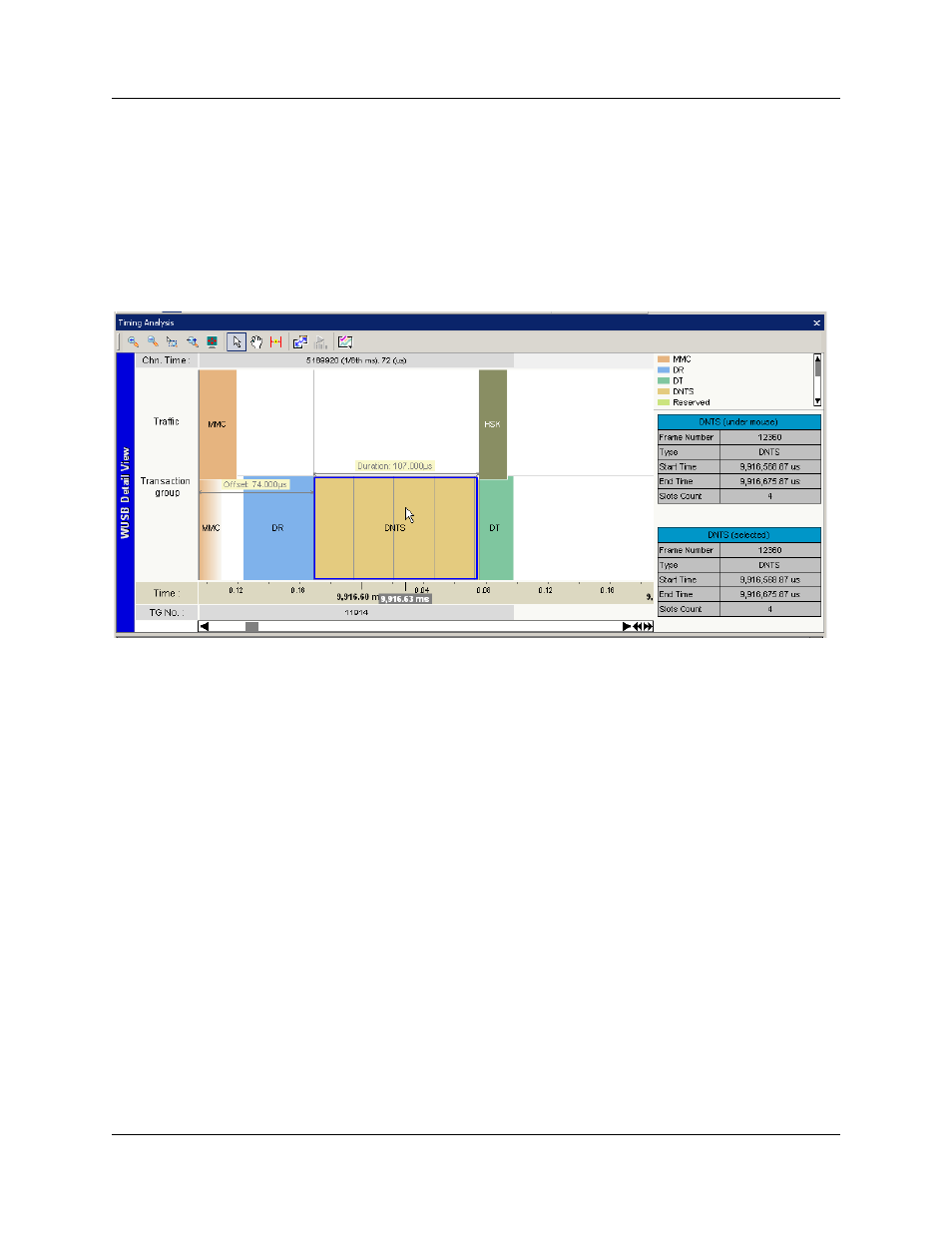

Figure 9.52 WUSB Detail View
Block Information
To select a block, click it in the view. A solid blue rectangle indicates a selected block.To
display information about the selected block, display the Selected Text Panel by
right-clicking in the view to display a popup menu and selecting Selected Text Panel.
To display information about a block, display the Current Text Panel by right-clicking in
the view to display a popup menu and selecting Current Text Panel. Move the cursor
over a block in the view. A dashed blue rectangle indicates the “under mouse” block.
You can compare the selected and current block information.
