UWBTracer/Trainer User Manual Chapter 15: Creating and Editing Generation Files
LeCroy Corporation
273
Step 8 Make a pathway from the Begin to the End.

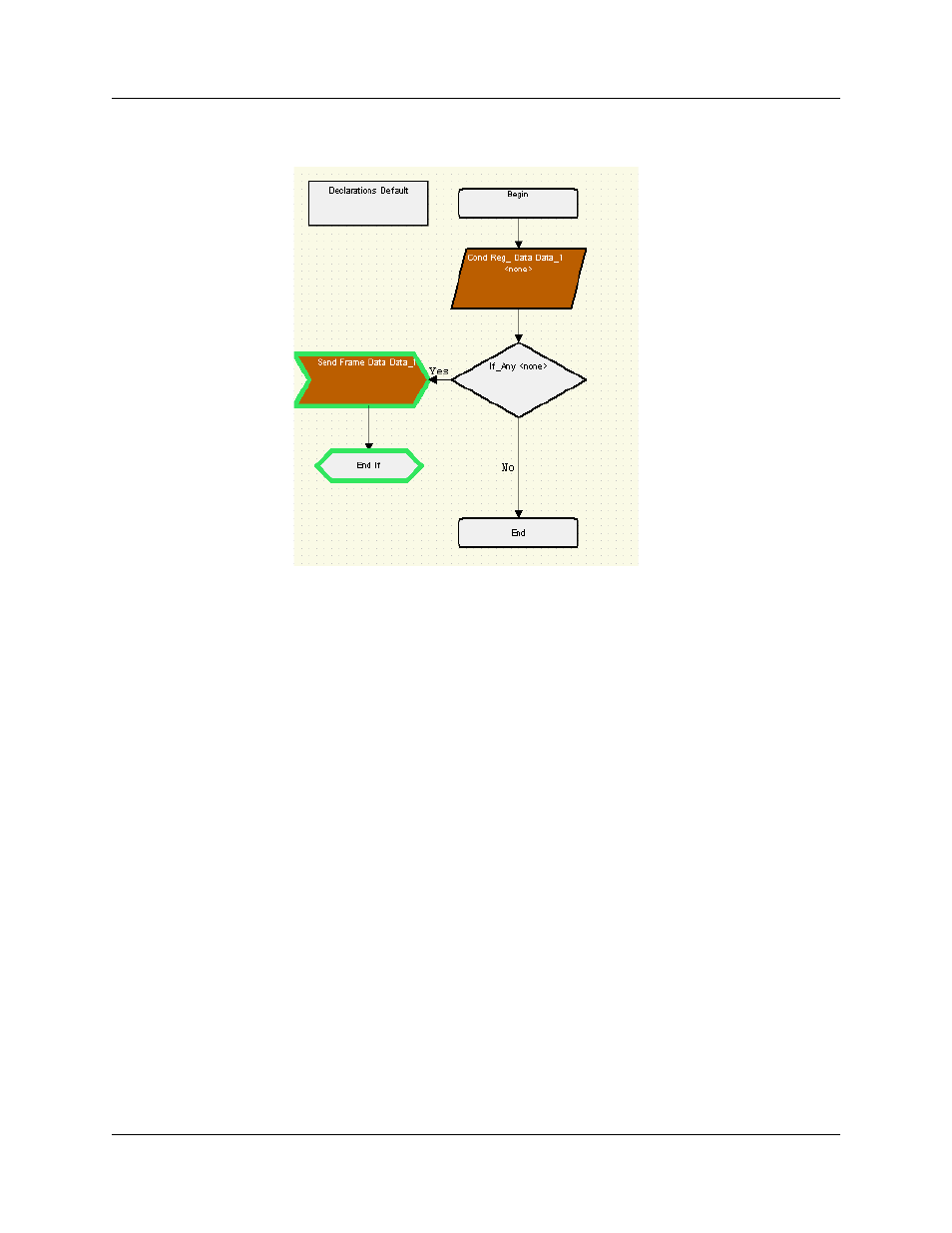

Figure 15.13 Graphical Scenario Example - Links
Make link from Begin.
Make a link from the Condition element.
Make the Yes Link and the No link of the If element.
Make a link from the Send element to the End If, so the If element has a
termination.
