UWBTracer/Trainer User Manual Chapter 5: Searching Traces
LeCroy Corporation
73
For WLP Internet Protocol Units:

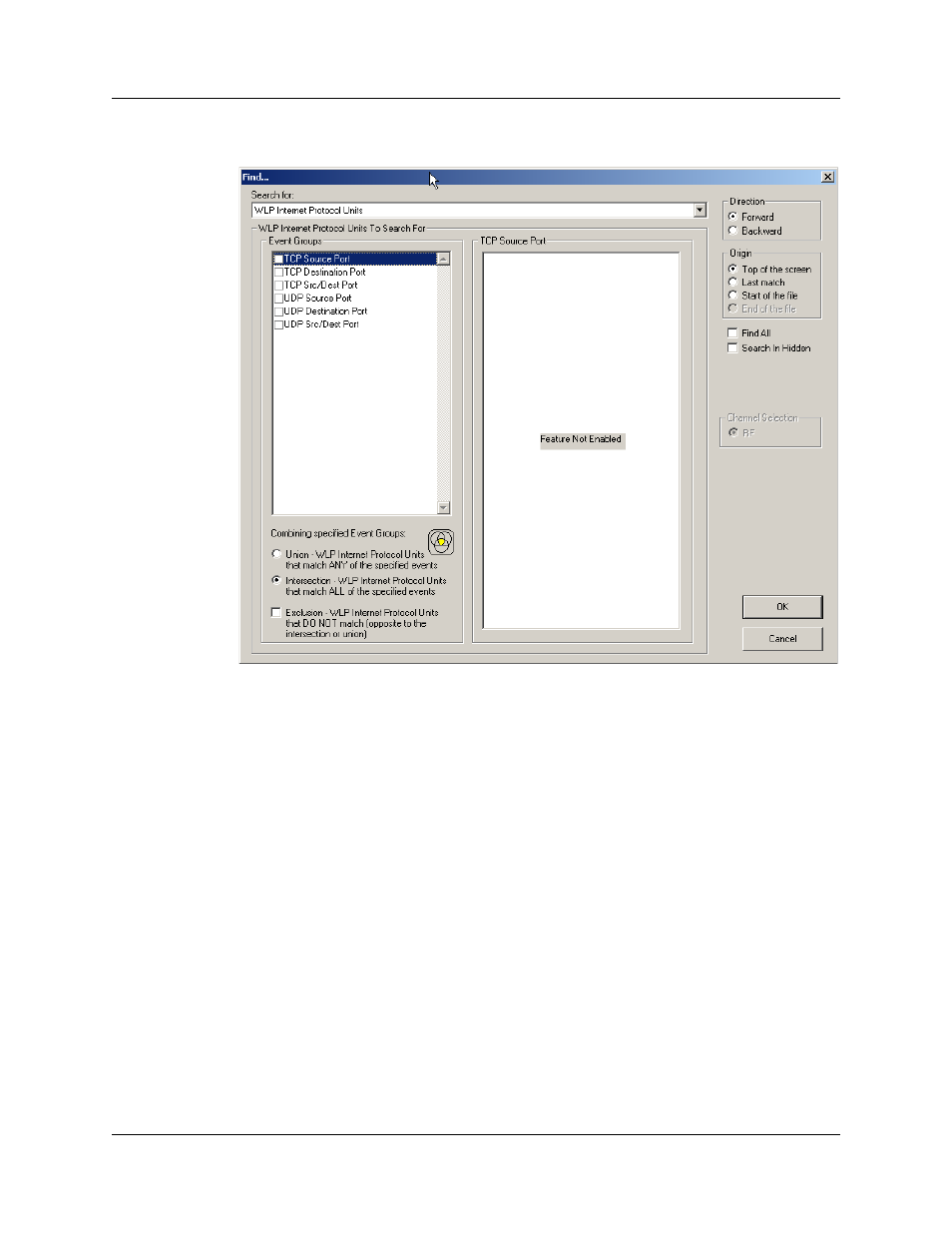

Figure 5.26 Find Events Window, WLP Internet Protocol Units Checkboxes
You also can combine specified event groups, meaning you can use logical relationships
in your search: OR, AND, and NOT:
• Union: OR relationship. A Find operation searches for frames that include any of
the items selected in the Event Groups pane.
• Intersection: AND relationship. A Find operation searches for only those frames
that match all the items selected in the Event Groups pane.
• Exclusion: NOT relationship. A Find operation searches for frames that do not
match any of the items selected in the Event Groups pane.
