Chapter 9: Reports UWBTracer/Trainer User Manual
138
LeCroy Corporation
Adding a WSS Group
To add a WSS group:
Step 1 In the Device List window, select the WLP_Devices line.
Step 2 In the Device List window, click the Add New Device button to
display the Add New WSS dialog box:

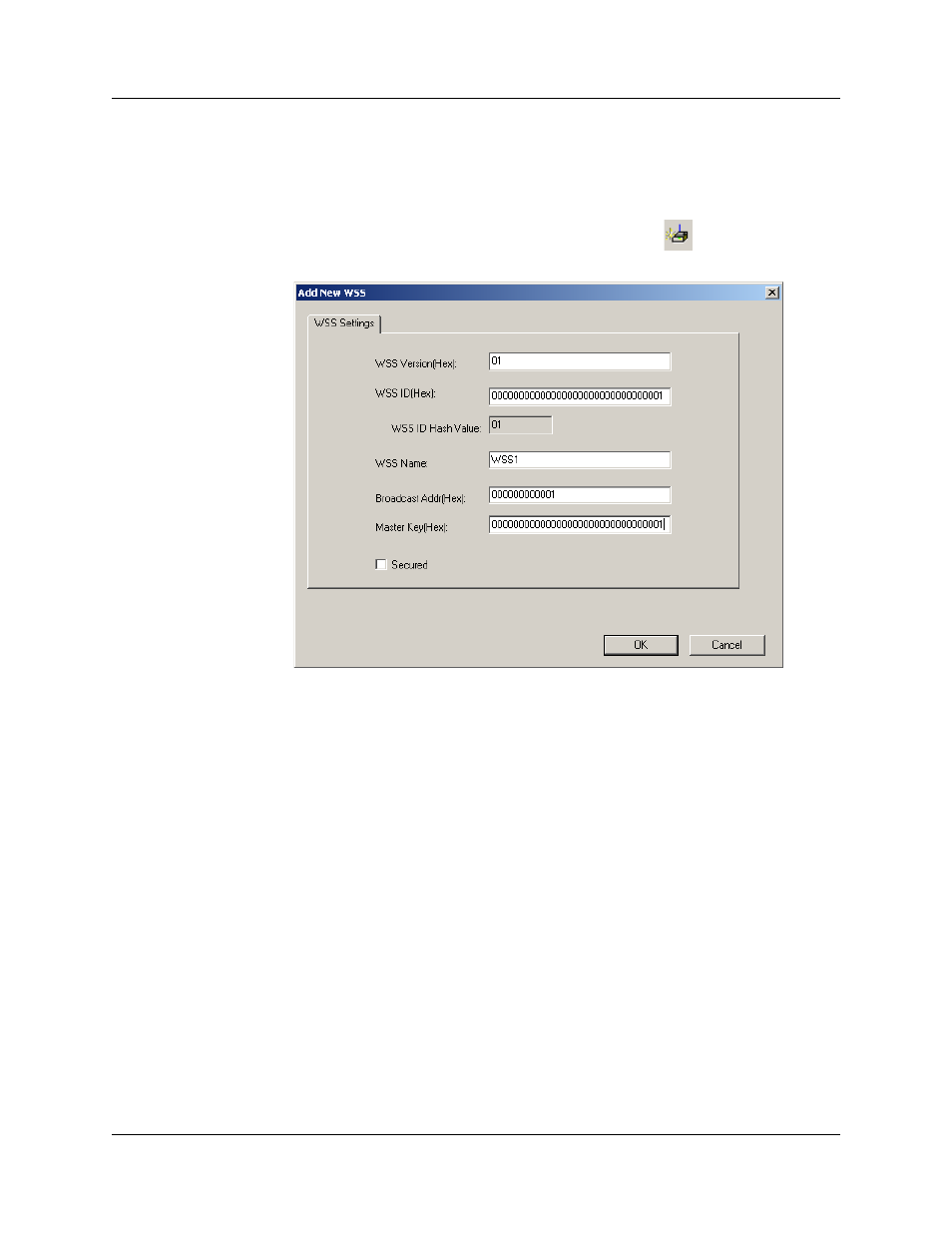

Figure 9.40 Add New WSS Dialog Box
Step 3 Enter the WSS Version in 2-digit hexadecimal.
Step 4 Enter the WSS ID in 32-digit hexadecimal. The WSS ID Hash Value is
automatically calculated based on the WSS ID entered.
Step 5 Enter the WSS Name (up to 255 characters).
Step 6 Enter the Broadcast Address in EUI48 format.
Step 7 Enter the Master Key in 32-digit hexadecimal.
Step 8 Use the check box to indicate if the WSS is secured.
Step 9 Click OK to return to the Device List.
