12.3 Recording Options: MPI
An MPI tab appears if you selected any of the following system operating modes:
• [Rec. Chan #1: Right MPI] [Rec. Chan #2: Right RF]
• [Rec. Chan #1: Right MPI] [Rec. Chan #2: Right RF] [Supports
USB Association Capturing]
• [Rec. Chan #1: Right MPI] [UWBTrainer supported]
You can set MPI recording options.

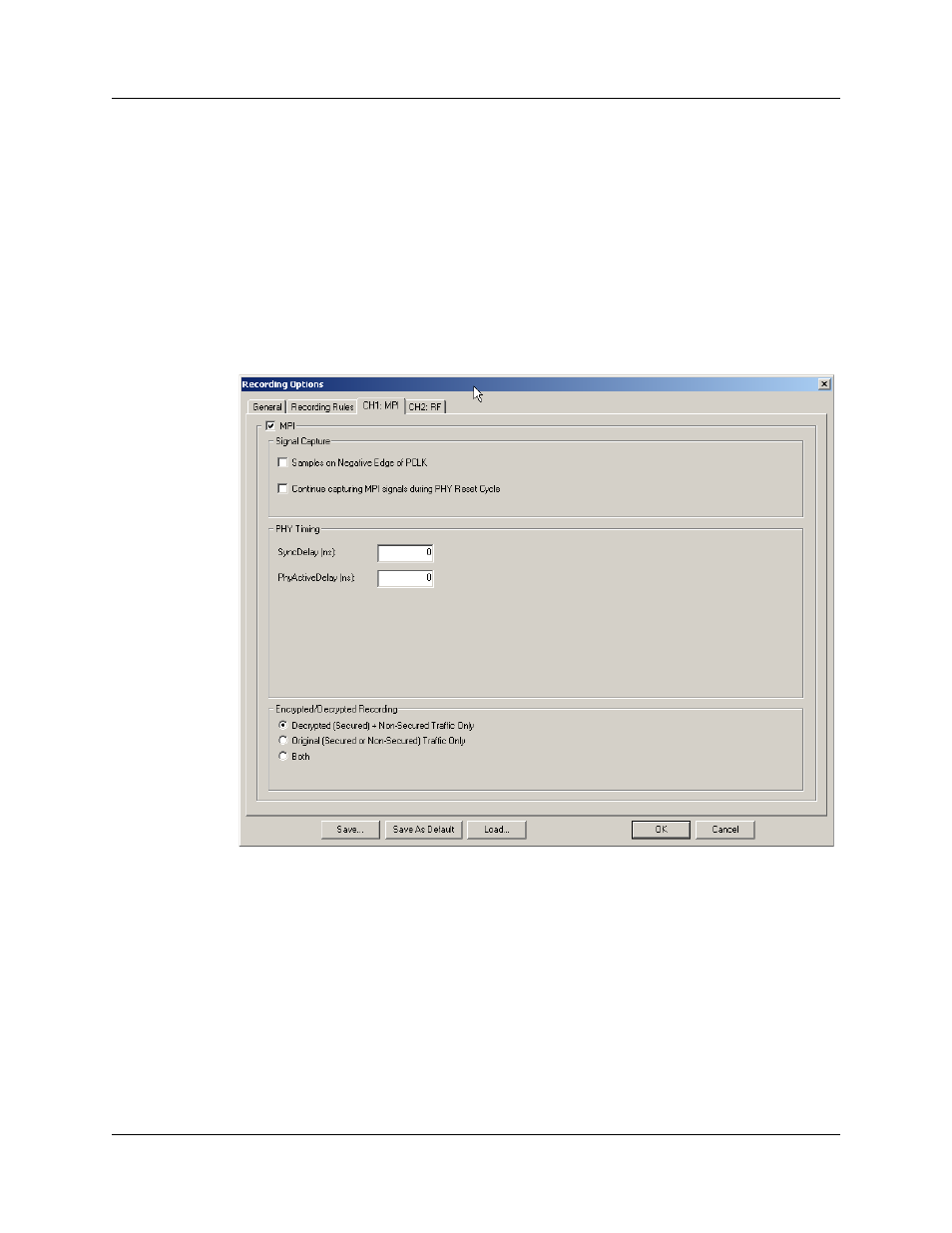

For MPI recording, select the MPI checkbox at the top left of the MPI section in the lower
left corner of the window.
Signal Capture
By default, a trigger occurs on the negative edge of the PCLK clock pulse. If recording
data is corrupt, you can set a trigger to occur on the positive edge of the PCLK clock pulse
by deselecting the Samples on Negative Edge of PCLK checkbox in the Signal Capture
section in the lower left corner of the window.
To continue recording during reset, select the Continue capturing MPI signals during
PHY Reset Cycle checkbox in the Signal Capture section in the lower left corner of the
window.
