Fonts and Colors - Opens a dialog box for setting the colors and fonts used in the
graphs:

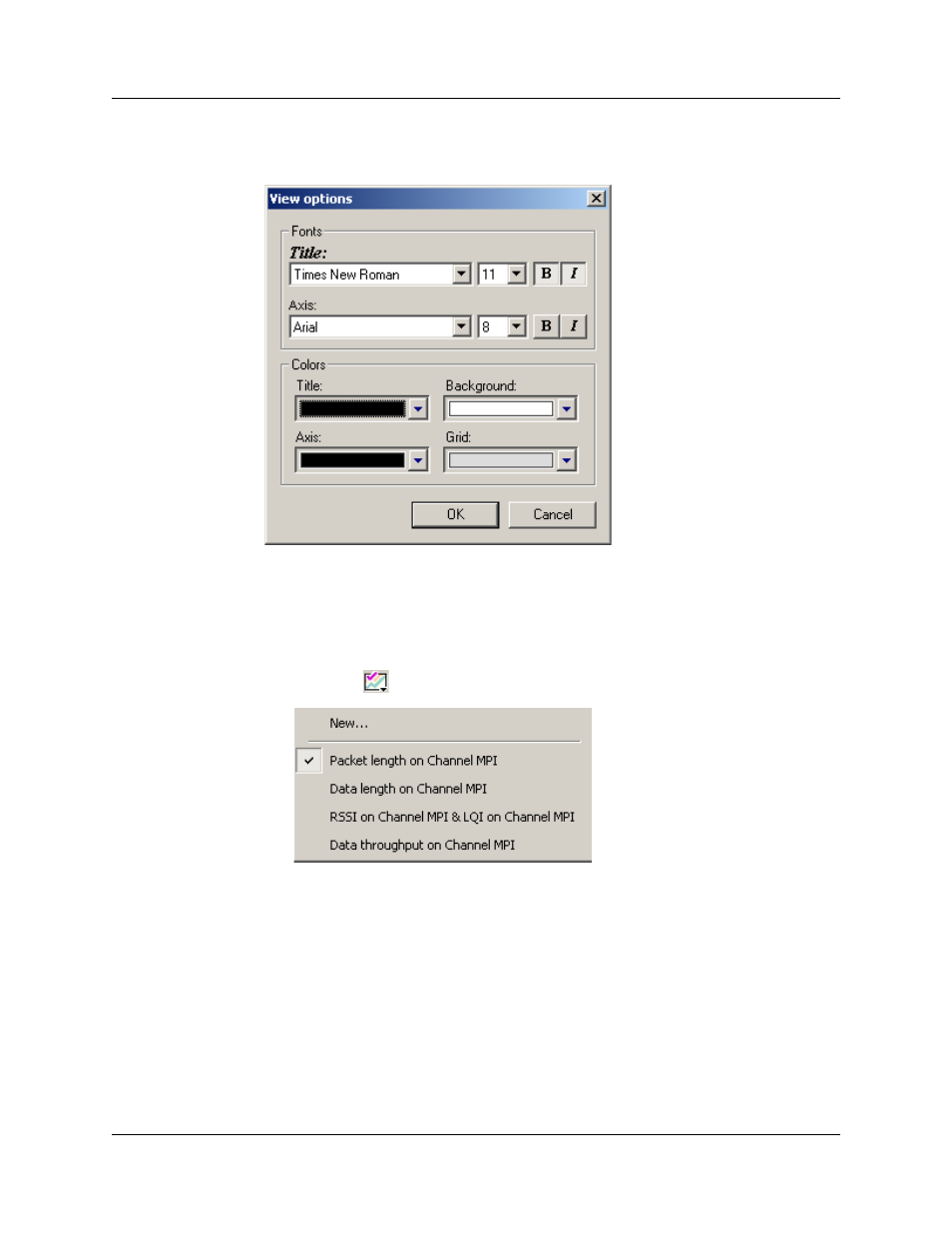

Figure 9.29 View Options: Fonts and Colors
Graph Areas Menu
The Graph Areas menu allows you to view different information types in the Bus
Utilization window.
Step 1 Click the
button to display the Graph Areas menu:
Figure 9.30 Graph Areas Menu
Step 2 Select the data you want to appear in the Graph Areas window: Packet
length, Data length, RSSI & LQI, and/or Data Throughput.
