Working with Timing Analysis Fields
The Timing Analysis fields are:
• IFS Tm Error: Inter-frame spacing between previous frame and this frame
• DRP Tm: Follows DRP reservation rule or not
• MAS Status: Superframe cell status:
# means MAS in the superfreame that allows packet to transmit
@ means MAS that packet starts
N/A means not applicable
• Frm Duration: Frame duration
• Delta Time: Time between starts of frames on the same channel
• Beacon Slot Time: SuperFrame (SF) index or Beacon Slot and Slot Offset relative
to expected BPST
• BPST Delta: Time between BPST in previous and current SuperFrames
• BPST: BPST in current SuperFrame
• Time Stamp: Time at beginning of preamble
Left-click a timing analysis field to display a drop-down menu.

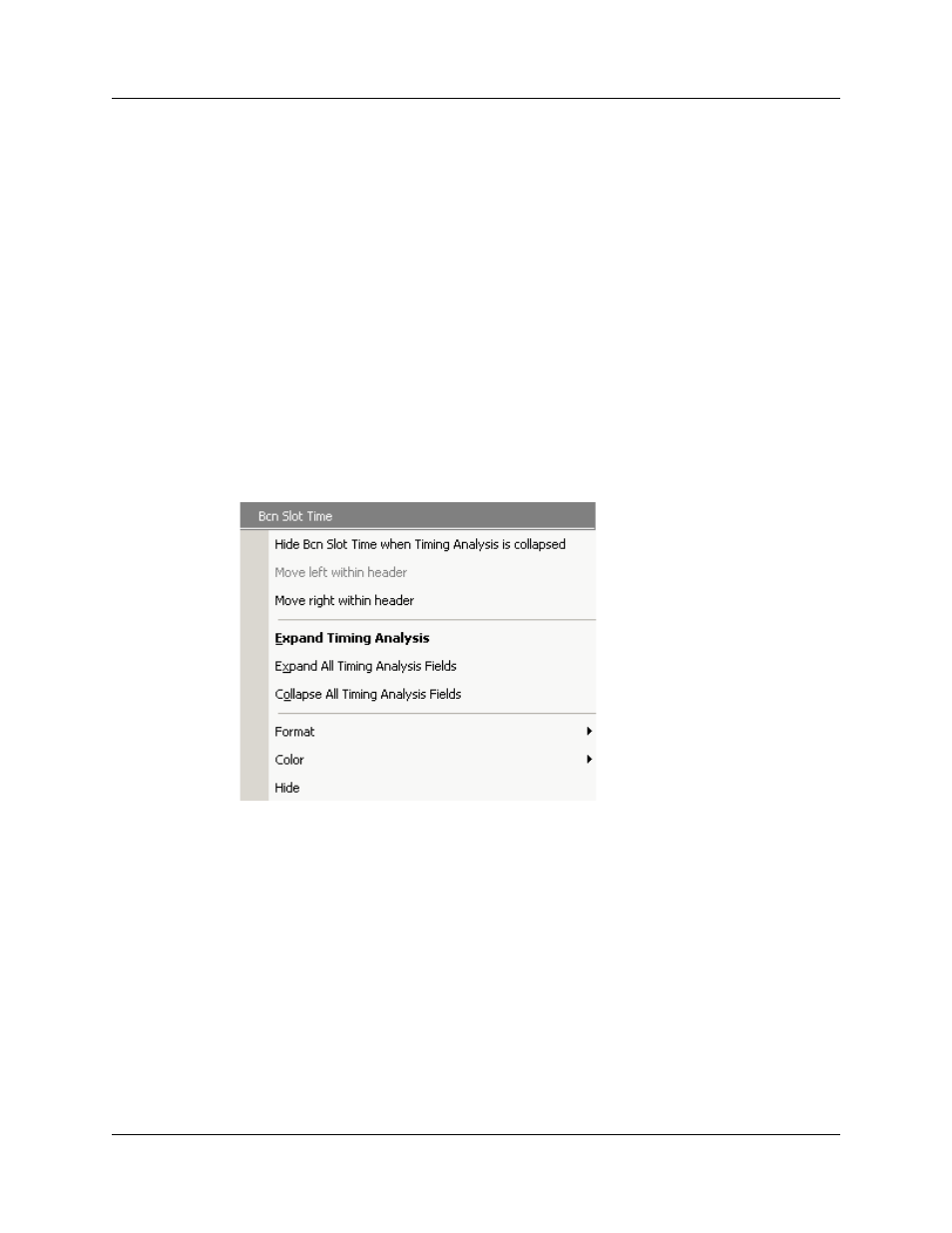

Figure 9.57 Left-Click Timing Analysis Fields Menu
To show or hide the timing analysis fields, select Expand Timing Analysis, Expand All
Timing Analysis Fields, or Collapse All Timing Analysis Fields.
To show or hide the selected field, select
Show/Hide ... when Timing Analysis is Collapsed.
To change the position of the field, select Move left or Move right within header.
