UWBTracer/Trainer User Manual

Chapter 15: Creating and Editing Generation Files

LeCroy Corporation

271

Step 6 If needed, select a Flow element, such as an If element.

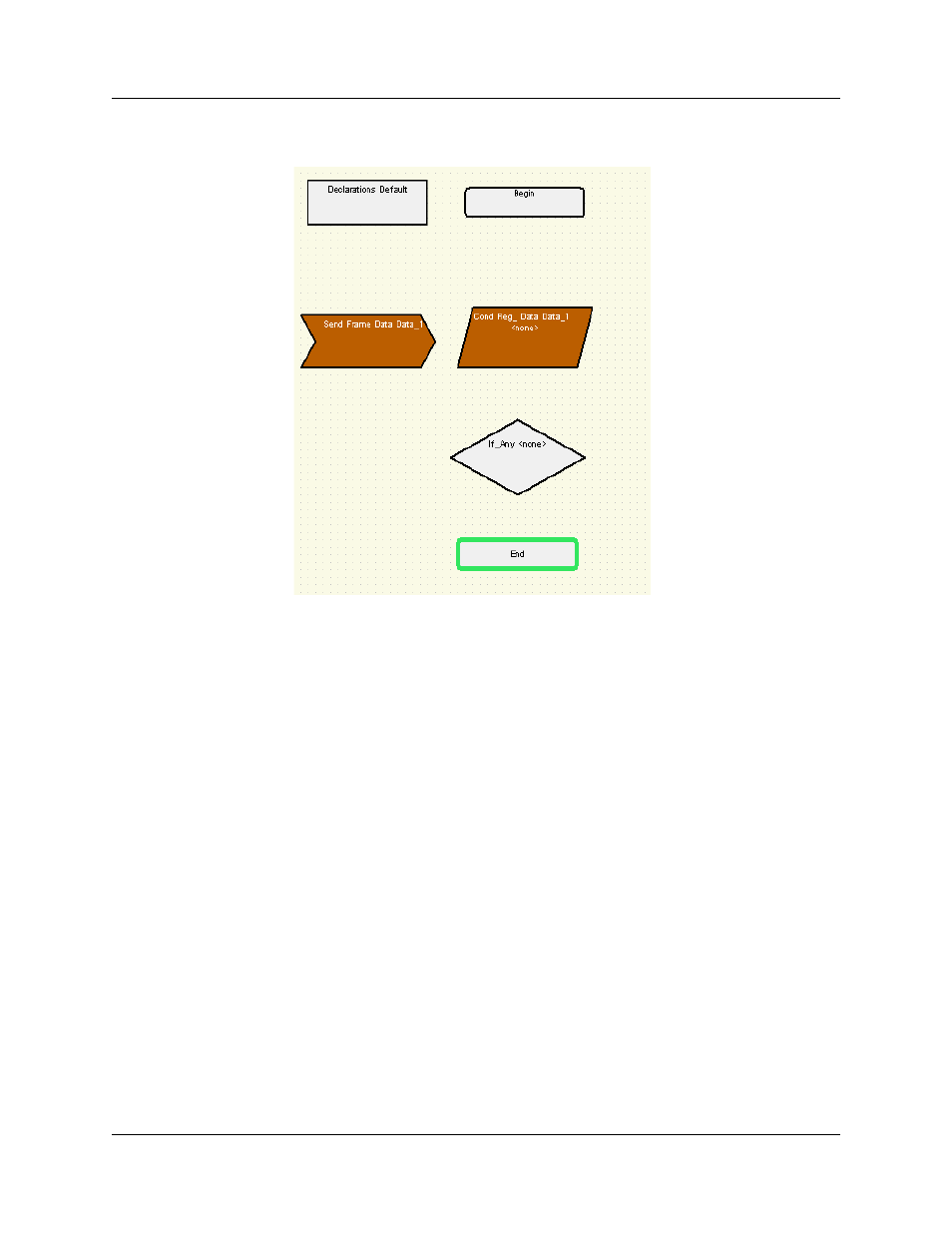

Figure 15.11 Graphical Scenario Example - Flow

For the If element, select the condition that you previously entered.

Then require Any or All of the selected conditions. (In this example, it does not
matter, because there is only one condition.)
