UWBTracer/Trainer User Manual Chapter 12: Recording Options
LeCroy Corporation
195
Creating Event Buttons
To create a rule, first create one or more Event buttons. As you create Event buttons, they
appear in the Available Events area. You then can drag-and-drop them into the Main
Display area.
To create event buttons:
Step 1 Click the New Event button at the left side of the toolbar to display the
New Event pop-up menu (Figure 12.10) for MPI or RF.

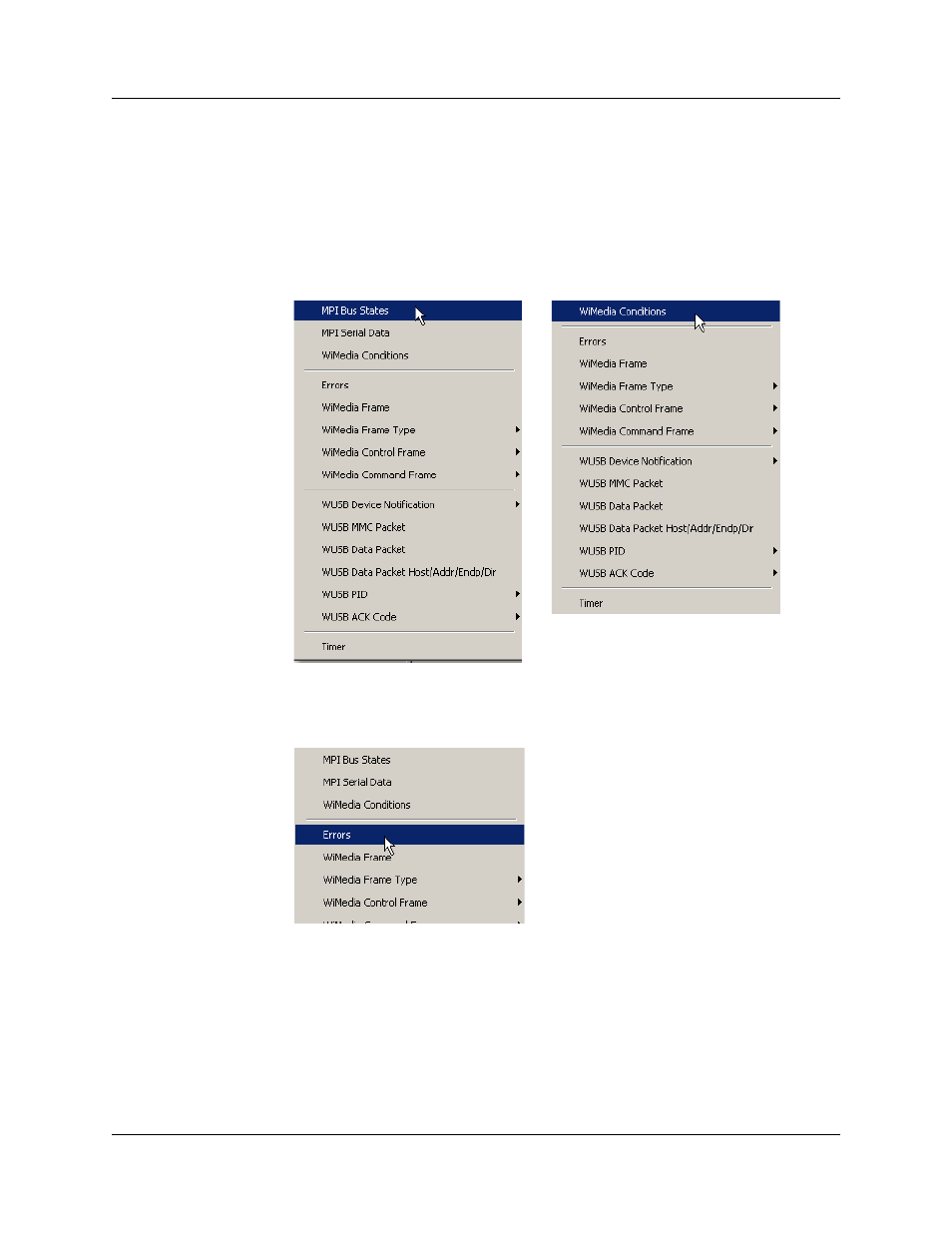

Figure 12.10 Creating a New Event
Step 2 Select an event (Figure 12.11).
Figure 12.11 Selecting Event Type
