Chapter 2: Hardware Description

UWBTracer/Trainer User Manual

10

LeCroy Corporation

Optional Components

In addition to the basic package, optional components are available:
•

USB Analyzer plug-in module for capturing USB Cable Association traffic
(US007MA)

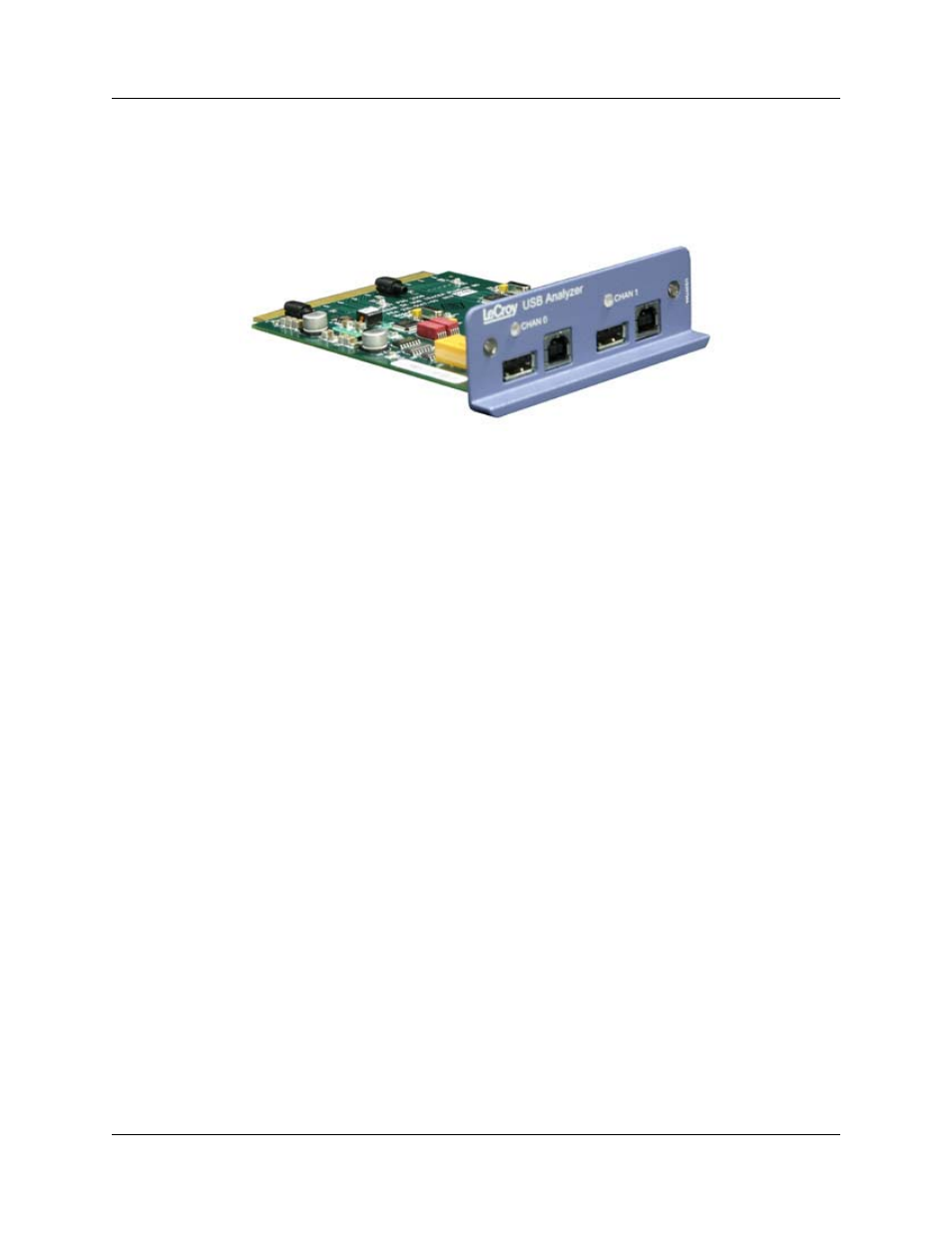

Figure 2.5

USB Analyzer Plug-in Module (US007MA)

•

UWB Analyzer plug-in module with PHY (radio) from a different vendor

(UW002MA or UW003MA)

[see Figure 2.2]

•

MPI Kit (please refer to the Data Sheet for detailed information)

[see next page]
