Chapter 3: Software Overview UWBTracer/Trainer User Manual
28
LeCroy Corporation

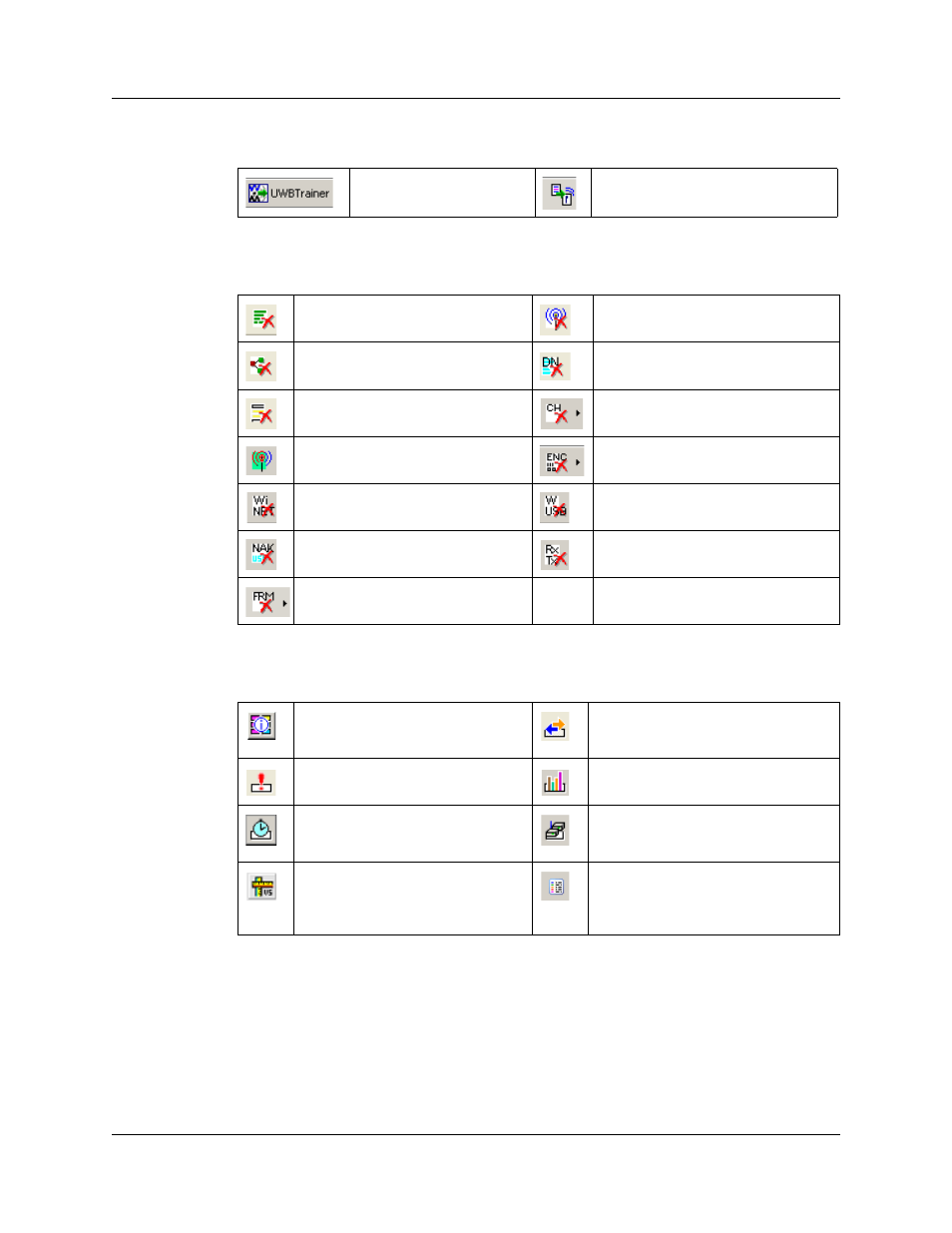

UWBTrainer Buttons
Hide Buttons
Reports Buttons
UWBTrainer Export To Script
Hide Unassociated Traffic Hide Beacon Frames
Hide Devices Hide Empty MMC Intervals
Hide Empty Super Frame Hide Channels (MPI or RF)
Show Only Beacons Hide Decoded/Original Traffic
Hide WLP Hide WUSB
Hide Nak’s Hide Rx/Tx W/O Data
Hide Frame Types
File Information Report. Opens a
summary of general information
about the trace file. Traffic Summary. Opens a summary
of protocol-related information in the
trace file.
Error Report. Opens a summary of
error information in the trace file. Bus Utilization. Opens a window that
shows packet length by time.
Timing and Bus Usage
Calculations. Opens a calculator for
measuring timing between frames
Device List Window
Run verification scripts.
Opens a window to allow you to run
verification scripts over the open
trace.
Timing Analysis
