Display Options for WUSB Detail View
Right-click the Timing Analysis window WUSB Detail View to display the
Timing Analysis Display Options for WUSB Detail View menu:

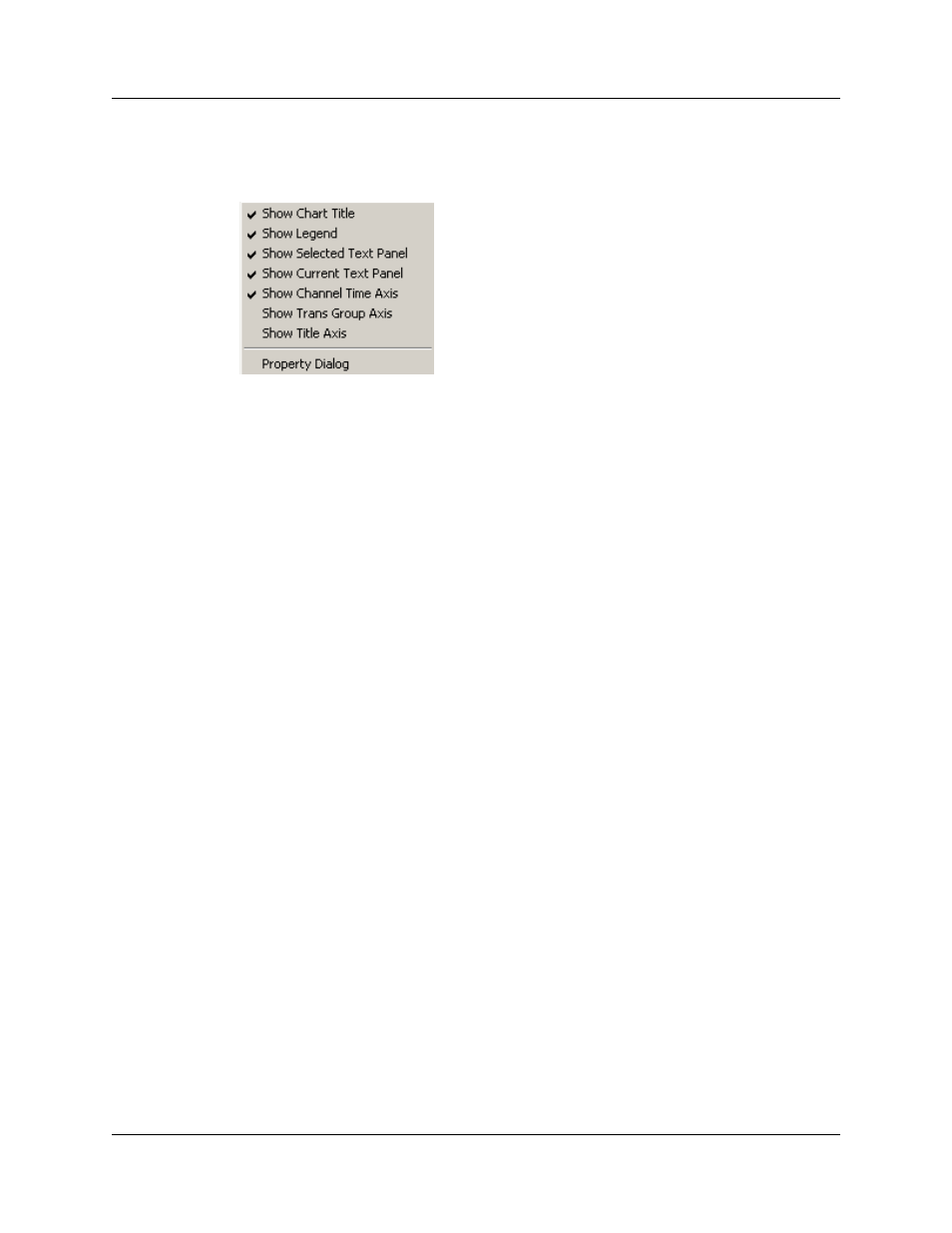

Figure 9.53 Timing Analysis Display Options for WUSB Detail View Menu
The options are:
• Show Chart Title: Display or hide the left vertical blue bar that says
WUSB Detail View or Beacon Period View.
• Show Legend: Display or hide the list of colors for MMC, DR, DT, DNTS, Reserved,
IN, OUT, DN, HSK, Unknown
• Show Selected Text Panel: Display or hide the Selected Item window in the lower
right corner.
• Show Current Text Panel: Display or hide the Item Under Cursor window in the
lower right corner.
• Show Channel Time Axis: Display or hide the time axis at the top of the window.
• Show Trans Group Axis: Display or hide the group axis at the bottom of the
window.
• Show Title Axis: Display or hide the Traffic and Transaction Group headings at the
left of the window.
