UWBTracer User Manual

Chapter 16: Updates and Licensing

LeCroy Corporation

281

Manual Update of BusEngine, Firmware, and Plugin Init

You also can manually load Plugin Init, firmware, and BusEngine files using the
Update Device command on the Setup menu.

To update manually:

Step 1 From the Setup menu, select Update Device to display the

Update UWBTracer/Trainer dialog box:

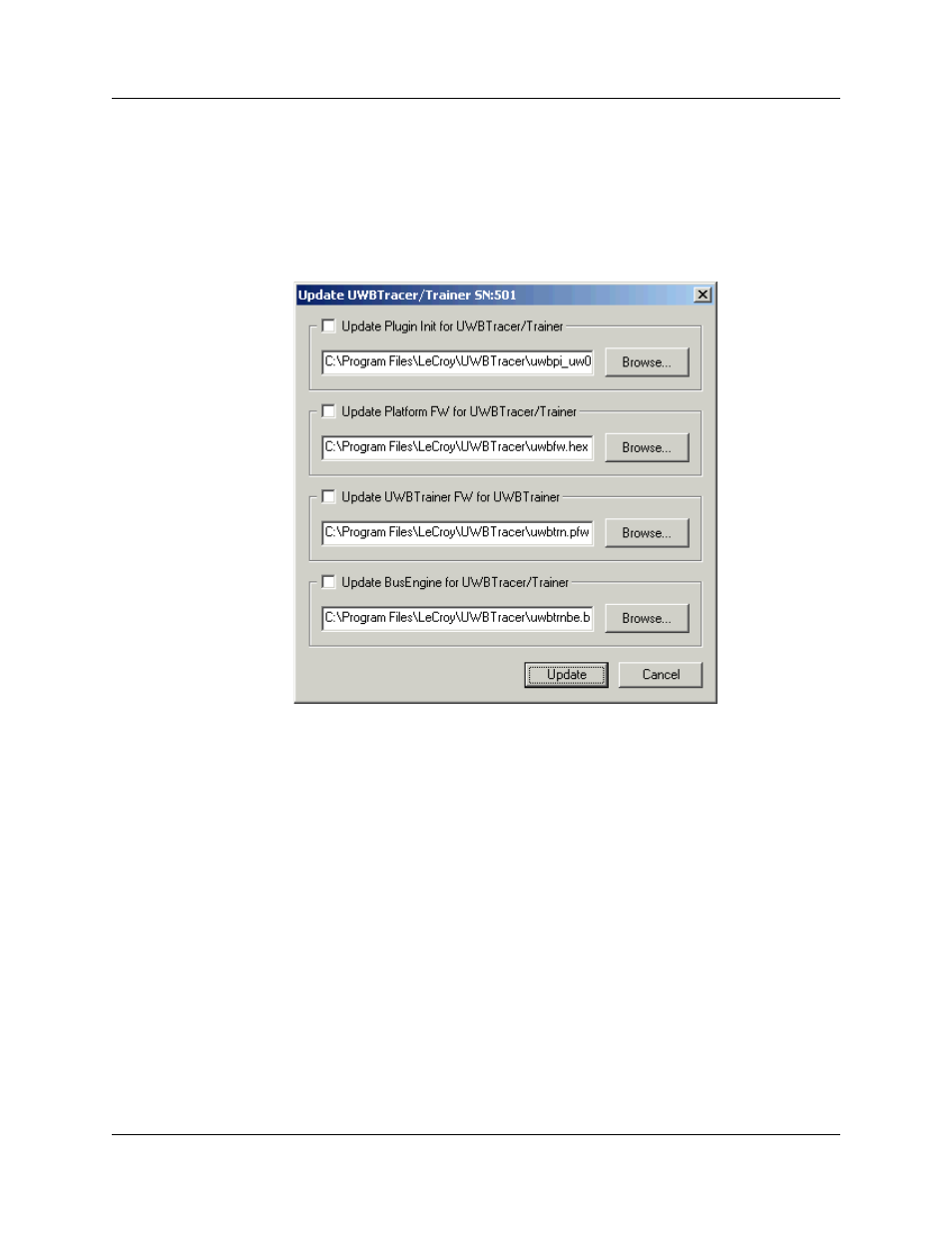

Figure 16.2 Update UWBTracer/Trainer Dialog Box

You can update the Firmware, BusEngine, and/or Plugin Init (PHY Initialization
data).

Step 2 Select whether to update Firmware, BusEngine, and/or Plugin Init, and

browse to the file if necessary.

Step 3 Click Update to confirm that you want to proceed with the update. The

update is executed.
