3.14 Edit or Clear Marker
To clear a marker or edit comments associated with a Frame marker:
Step 1 Click Frame # for the chosen packet to display a pop-up menu
(Figure 3.15).

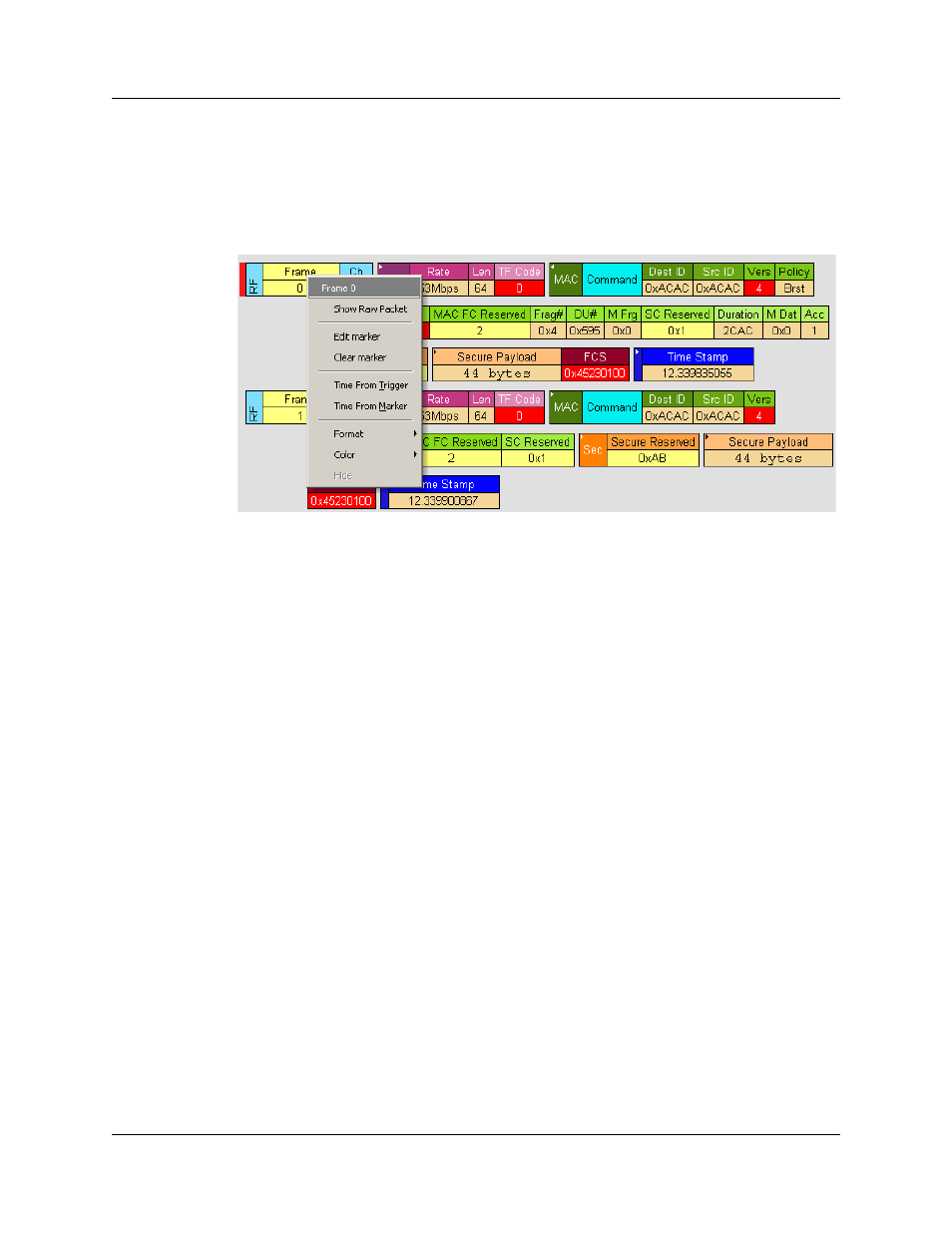

Figure 3.15 Editing a Frame Marker
Step 2 To edit the marker comment, select Edit Marker.to display the Edit
Marker for Frame # comment window (Figure 3.13).
Step 3 Edit the comment.
Step 4 Click OK.
Step 5 To clear a marker, click Clear marker in the frame pop-up menu
(Figure 3.15). The vertical red Marker bar disappears.
