UWBTracer/Trainer User Manual Chapter 5: Searching Traces
LeCroy Corporation
57
5.4 Go to Marker
To instruct the analyzer to display a marked frame, follow these steps:
Step 1 From the Search menu, select Go to Marker (Figure 5.3).

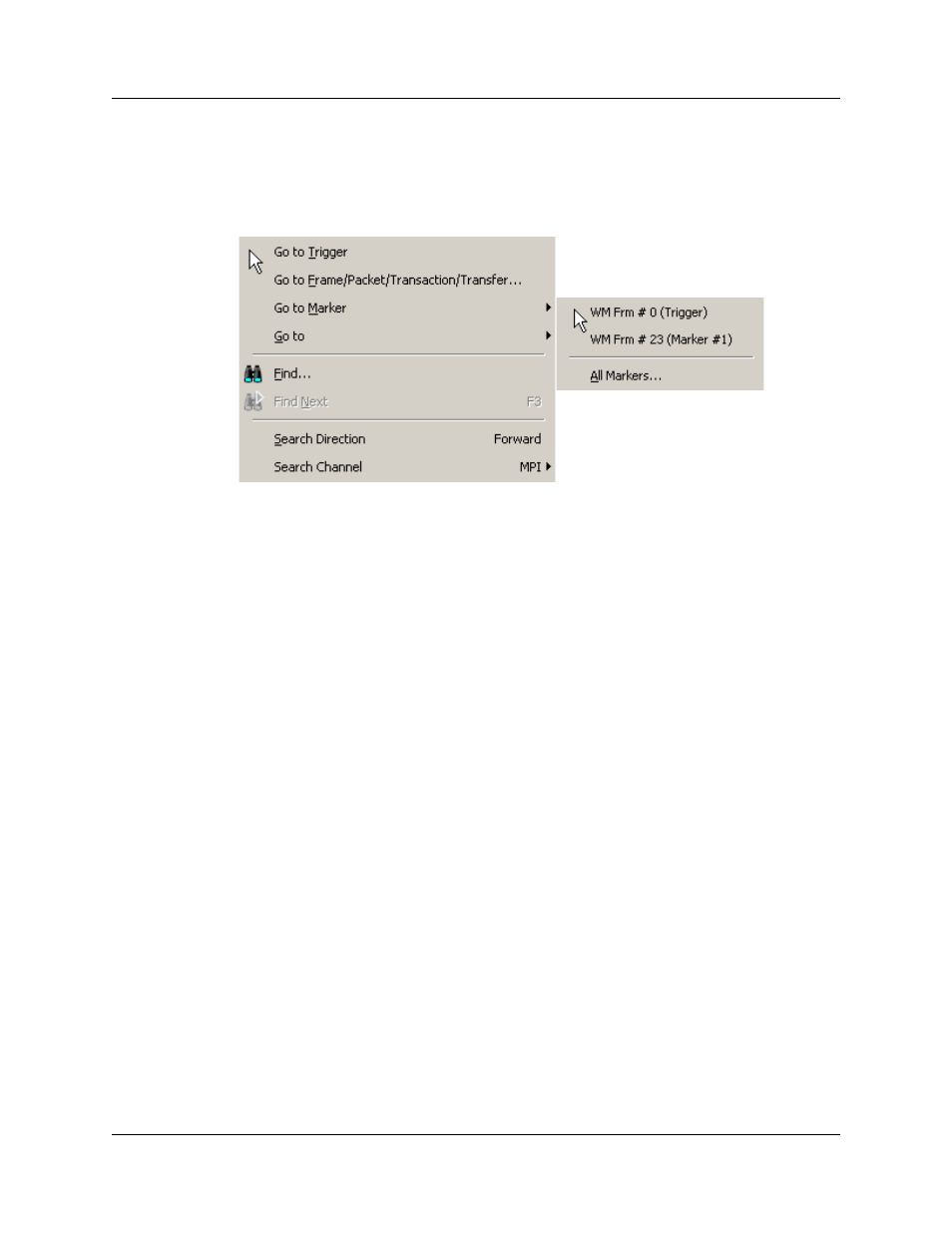

Figure 5.3 Selecting Go to Marker
Step 2 Select a frame or packet number from the listed markers. Alternatively,
select All Markers to open the All Markers dialog box (see figure 5.17,
“All Markers Window”), select a marker, and then click Select.
The trace view displays the selected item at the top of the main window.
Note: The Go to Marker feature functions in conjunction with the Set Marker
feature. The comments within the parentheses following each marked
Frame are added or edited with the Set Marker feature.
