UWBTracer/Trainer User Manual Chapter 7: Decoding USB/WUSB Requests
LeCroy Corporation
91
Step 6 Select a decoding group.
OR
Select No Decoding if you do not want any specific decoding.
Step 7 Repeat the previous steps for additional recipients.
Step 8 To retain a mapping from trace to trace DURING an application session,
select the Keep Across Recordings checkbox.
Step 9 Click OK.
Mapping Endpoint RPipe to Class/Vendor Decoding
To assign a Class/Vendor Endpoint RPipes decoding:
Step 1 Click the Apply Decoding Scripts button on the Toolbar.
OR
Left-click the Bulk/Int Transfer field to display the USB/WUSB Device Request
menu.
Step 2 Select Map Endpoint RPipe to Class/Vendor Decoding to display the
Request Recipients and Endpoints dialog box.
Step 3 Click the Endpoint RPipes tab to display the Endpoint RPipes dialog
box:

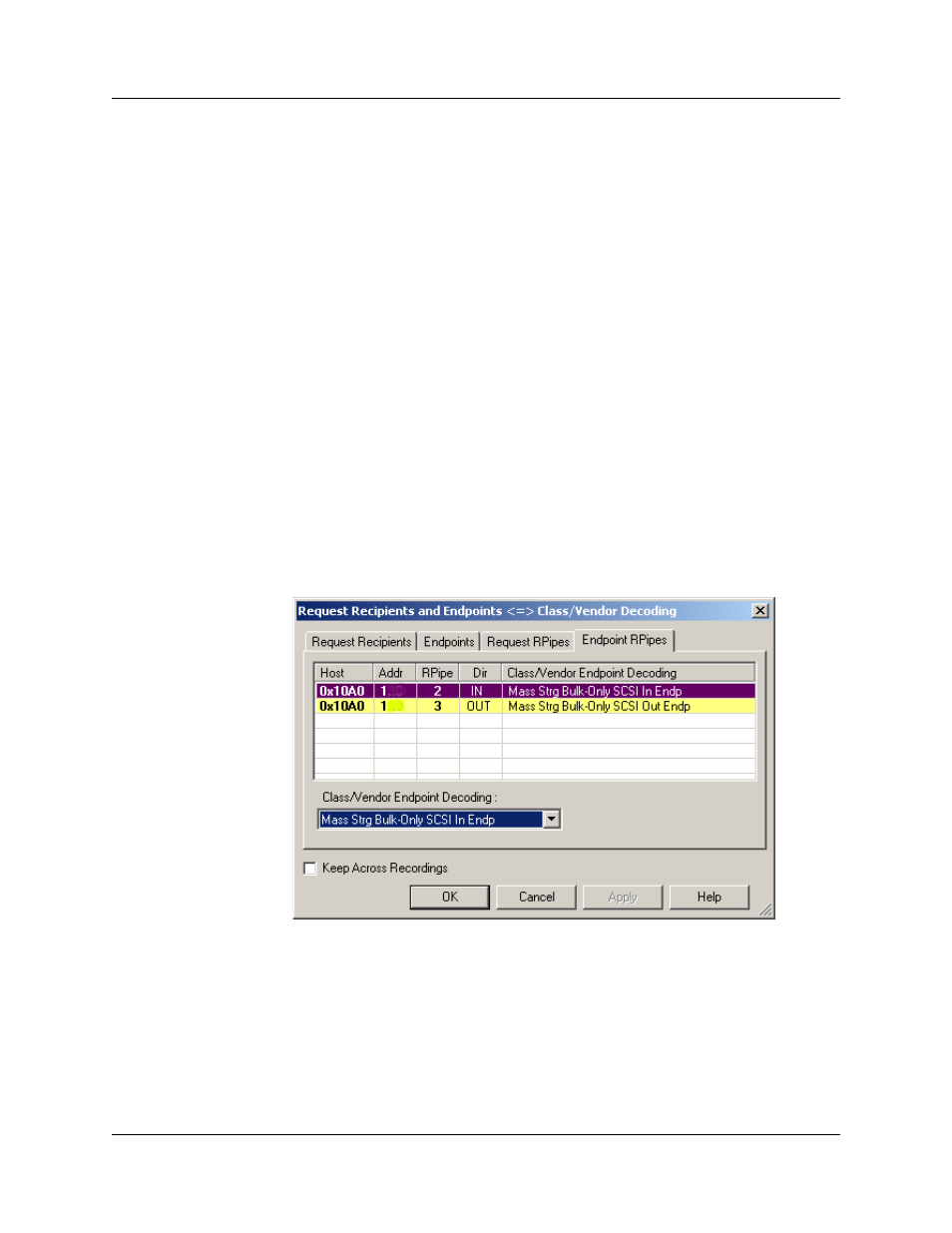

Figure 7.6 Endpoint RPipes Dialog Box
The RPipe field shows all RPipes found in the trace file. The displays shows the
Host, Address, and Direction for the recipient. On the right are the names of
Class/Vendor Endpoint Decoding groups currently assigned to endpoints. If
blank, no decoding is assigned for a recipient.
Step 4 Select an endpoint RPipe.
