UWBTracer/Trainer User Manual Chapter 9: Reports
LeCroy Corporation
127
Bus Utilization Buttons
The Bus Utilization window has a row of buttons for changing the format of the displayed
data and for exporting data:

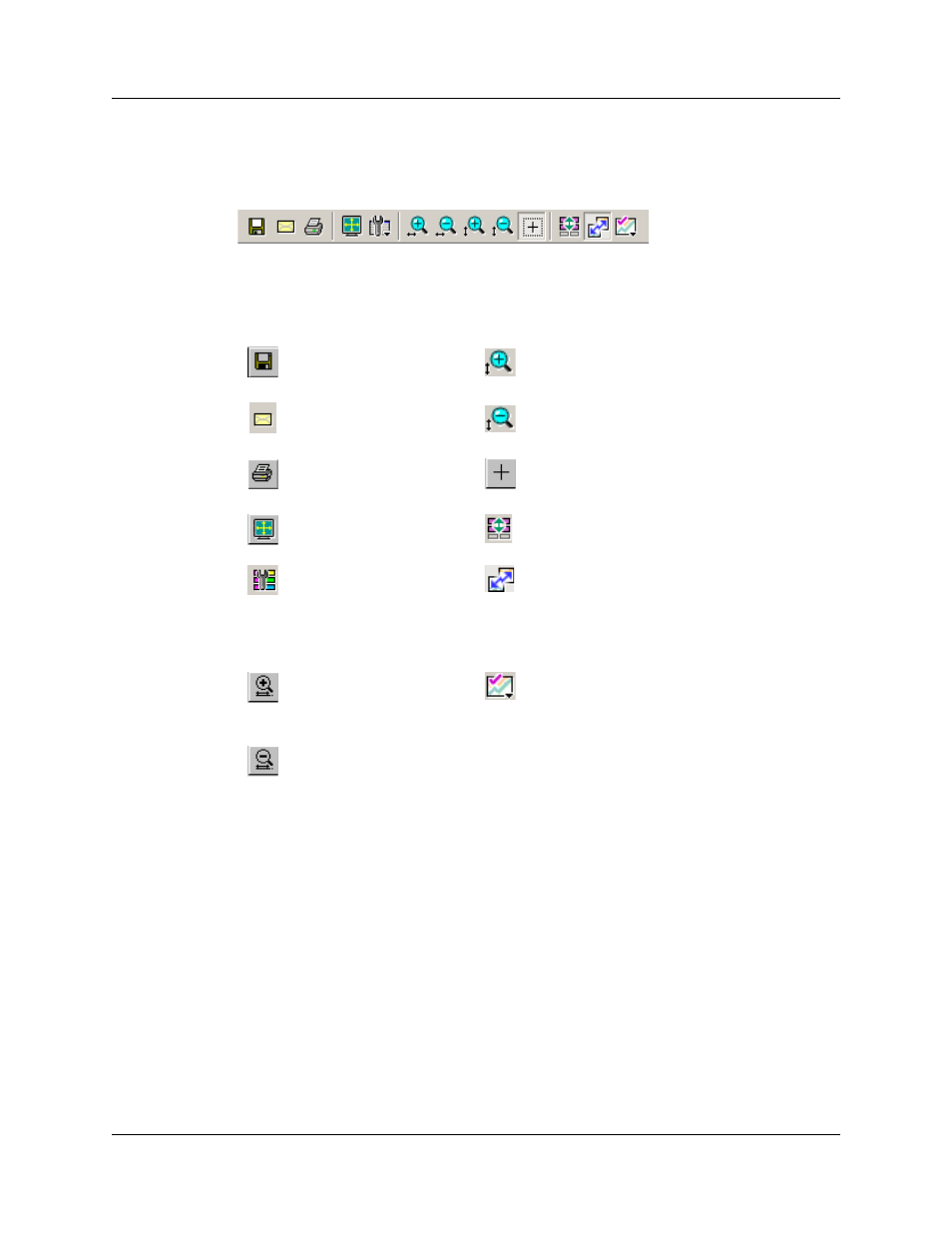

Figure 9.27 Bus Utilization Buttons
The buttons have the following functions:
Save As - Saves the
graphs as a bitmap file
(*.bmp)
Vertical zoom in
Email - Creates an email
with a *.bmp file
attachment of the graphs
Vertical zoom out
Print
"Click and Drag" zoom mode - Click
diagonally to select and zoom in on part
of the graph
Full screen Select Range
View settings - opens a
sub-menu with options for
formatting the display.
See “View Settings Menu”
below. Synchronize graph areas - If two or more
graphs are displayed, this button
synchronizes the graphs to one another.
Once synchronized, the positioning
slider of one graph moves the other
graphs.
Horizontal zoom in
Graph Areas - Presents options for
displaying additional graphs of data
lengths, packet lengths, and percentage
of bus utilized.
Horizontal zoom out
