UWBTracer/Trainer User Manual Chapter 12: Recording Options
LeCroy Corporation
183
12.2 Recording Options: RF
An RF tab appears if you selected any of the following system operating modes:
• [Rec. Chan #1: Right MPI] [Rec. Chan #2: Right RF]
• [Rec. Chan #1: Right MPI] [Rec. Chan #2: Right RF] [Supports
USB Association Capturing]
• [Rec. Chan #1: Right RF] [UWBTrainer supported]
• [Rec. Chan #1: Left RF] [Rec. Chan #2: Right RF]
• [Rec. Chan #1: Left RF] [Rec. Chan #2: Right RF]
You can set RF recording options. The RF tab controls the RF recording channel.
For RF recording, select the RF checkbox at the top left of the RF tab in the lower left
corner of the window.
Note: If you are in RF scan mode and MPI traffic is present, uncheck the MPI option
to reserve a buffer for scan results.

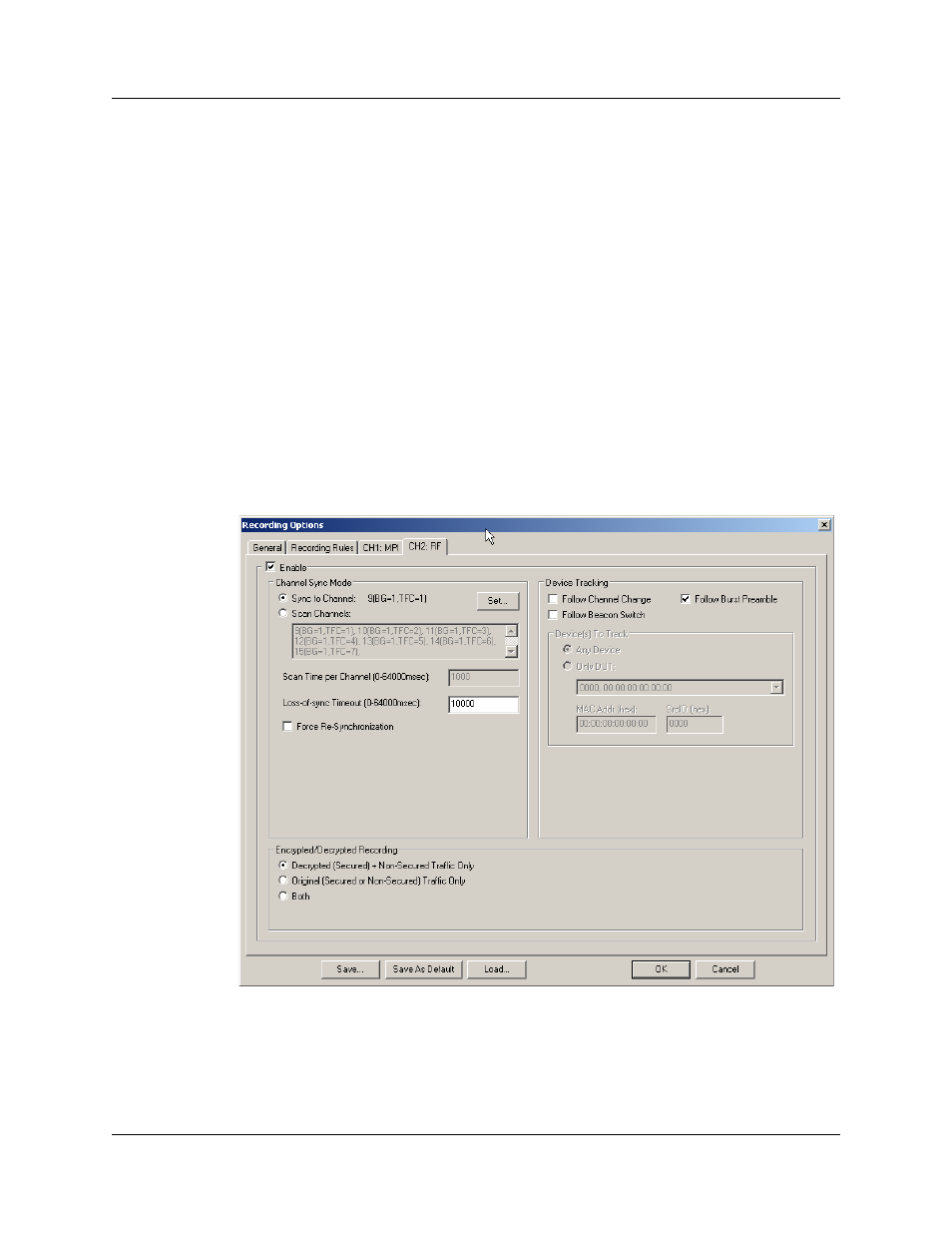

Figure 12.4 Recording Options Window: RF Tab Defaults
