UWBTracer/Trainer User Manual Chapter 11: Setting Up for Recording
LeCroy Corporation
175
Step 9 Make sure the WUSB host or device has the DUT box checked:

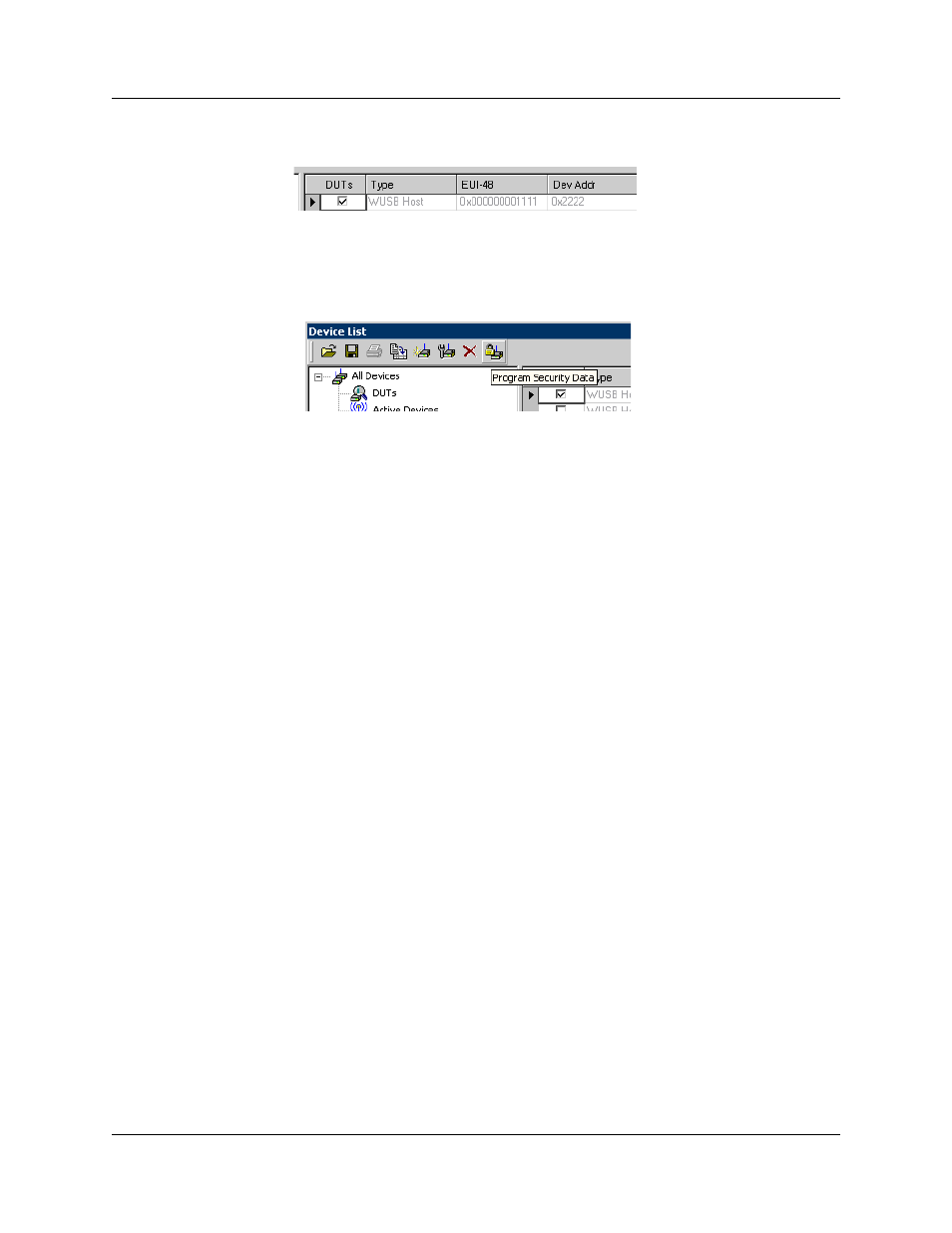

Figure 11.11 DUT Checkbox
Step 10 Click the Program Security Data toolbar button to send changes to the
analyzer:
Figure 11.12 Program Security Data Toolbar Button
Temporal Key Direct Programming
In this method, you add a Temporal Key ID (TKID) and Temporal Key (TK) to the device
attributes when you add or edit a device in the Device List.
The UWBTracer/Trainer system decrypts traffic using the Temporal Key whenever a
match is found with the TKID and the device address (DevAddr) of the device.
This method can be used for programming both Pair-wise Temporal Keys (PTK) and
Group Temporal Keys (GTK).
Note: You must use the Direct Programming method to decrypt traffic between two
WiMedia devices that are not running the Certified WUSB protocol.
To add a Temporal Key directly to a WUSB host or device:
Step 1 If the device already appears in the Device List (see Figure 11.5),
double-click it to open the Edit Device dialog box.
If the device is not in the Device List, click the Add New Device toolbar button
(see Figure 11.6) to display the Add New Device dialog box (see Figure 11.7).
Step 2 Enter information in the correct format in the fields on the General Settings tab
(see Figure 11.8).
Check the DUT checkbox for the device.
